broken hinge

Distributor from saltsburg pa 15681
Looking to find a replacement part for the broken hinge (the black plastic part has snapped in half) on our peechtree window.  I also have a picture of the date/information code that is inside the glass if that is needed.  If you need any more information please dont hessistate to ask. thanks bill
5 user uploaded images
8 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hi Bill,

Thanks for reaching out! The black plastic piece you are searching for is the track slider from the window hinge. Unfortunately, this is not something we sell separately and we aren't quite sure that they are available elsewhere. That said, the entire window hinge would need to be replaced.

I'm happy to recommend a replacement for the hinge but I'll need to know the measurement for the length of the track installed to the still to get started.

Please feel free to reach out with any other questions.

Distributor from saltsburg pa 15681
are you able to call so we can make sure we are getting you the correct measurements to find a replacement hinge?  724-464-3243 thanks bill
Jasmine
Jasmine from SWISCO
SWISCO
Expert

I'm afraid I do not have a direct phone line, this is the best avenue for communication available to me. If you would prefer to speak with someone over the phone, you are more than welcome to call (888) 991-1929 to speak with a member of our customer service team.

Please feel free to reach out with any other questions you might have.

Distributor from saltsburg pa 15681
to clarify you want the measurement of the vertical piece fastened to the window frame that the broken piece slides up and down in
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Yes, that is correct. The hinge should look something like our 36-048 2-Bar Hinge Set. The track would be the part that measures 10". See the diagram below for reference.

Detail of 36-048
Detail of 36-048

Distributor from saltsburg pa 15681

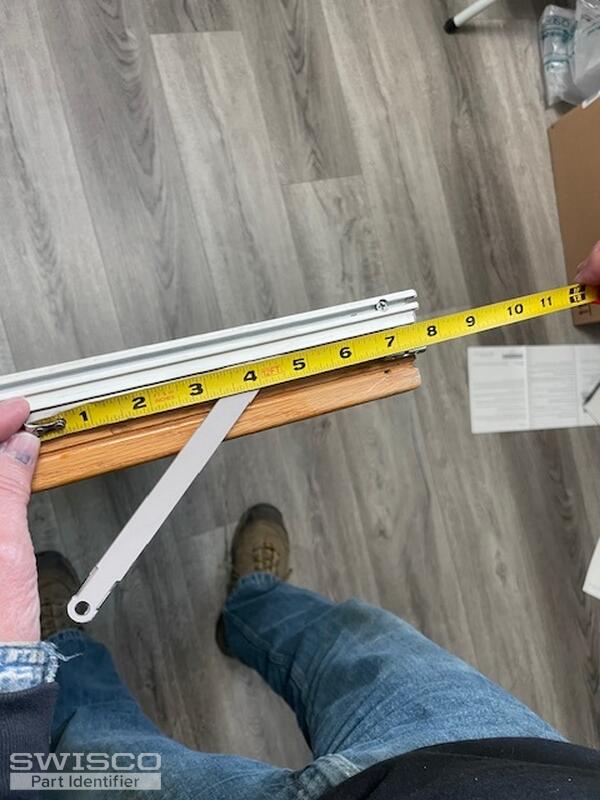

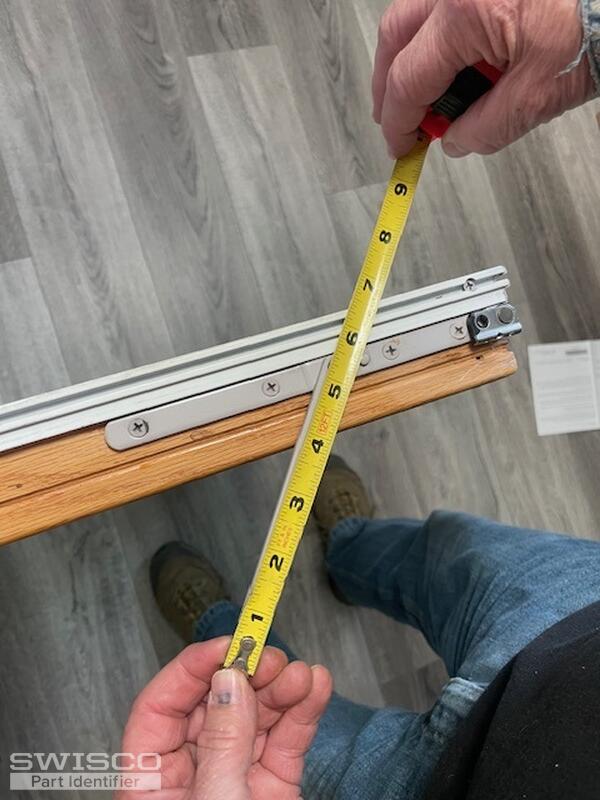

here we go - your 10" is the same - the 7 5/8 is the same - 3/4 wide the same - 1/2 wide the same - but screw holes are different but if this may work i will just drill new holes ??  if sold seperately i don't need the 10" piece ??
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Yes, you'll need to drill new installation holes to install this replacement hinge set. They are sold as a complete set.

It would be advised to replace the entire hinge to ensure they will work properly.
