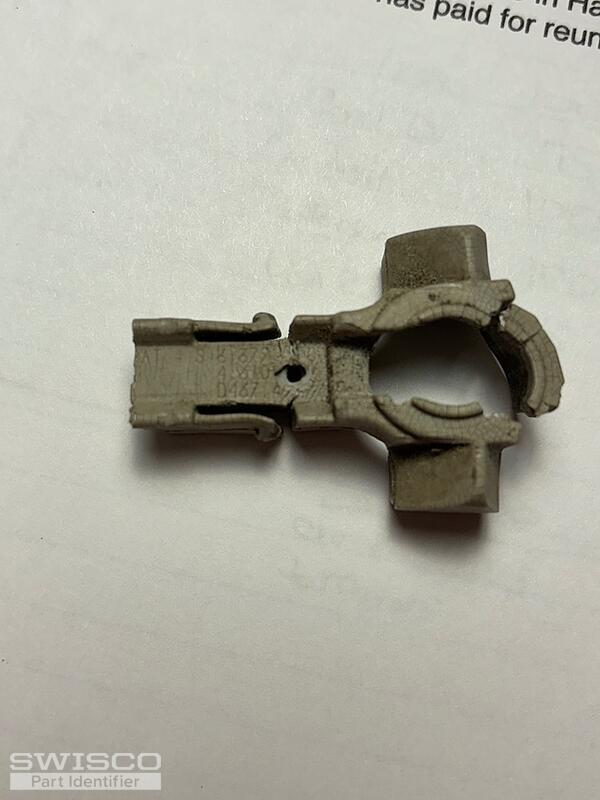

broken part to window that attaches to the metal bracket in pic down inside the window

Home Owner from North Carolina
These parts are all starting to break at the same time, I will be in process of opening a window and I will feel it give and then the metal bracket shoots up the channel because the part has failed to hold. Is it possible to replace this? Do you have this?
4 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! Your balance channel has a grove at the bottom of it so you'll need the 15-236 1-1/4" T-Lock Spring Shoe. Although, if all of these are breaking in the same manner, it may be a good idea to check if the balances might need to be replaced.

Dimensions for 15-236
Dimensions for 15-236

View of closed cam on 15-236
View of closed cam on 15-236

Home Owner from North Carolina
How do I know if the balances need to be replaced? Is this a fairly easy fix that I can watch a video and learn how to do? We have so many window that have failed and expect the rest of them to eventually do the same. The window itself is fine but the mechanisms have failed inside that channel. I hope this makes sense.
Jasmine
Jasmine from SWISCO
SWISCO
Expert

These shoes install to the bottom of the balance using a rivet. If this is missing from your balance, then you'll absolutely need to replace the entire assembly. There are also a number of factors that could indicate your balances would need to be replaced but you would ultimately need to examine the hardware to confirm. For example, is there any noticeable damage to the other parts of the balance? Does the window seem heavier/harder to open?

Given that the shoes have started becoming detached from the balances in the same manner and at the same time, it is very likely they do need to be replaced. Especially since you've confirmed the balances have failed in the channel.

In that case, you won't need the 15-236 since you would be replacing the entire assembly.
