broken pivot shoe

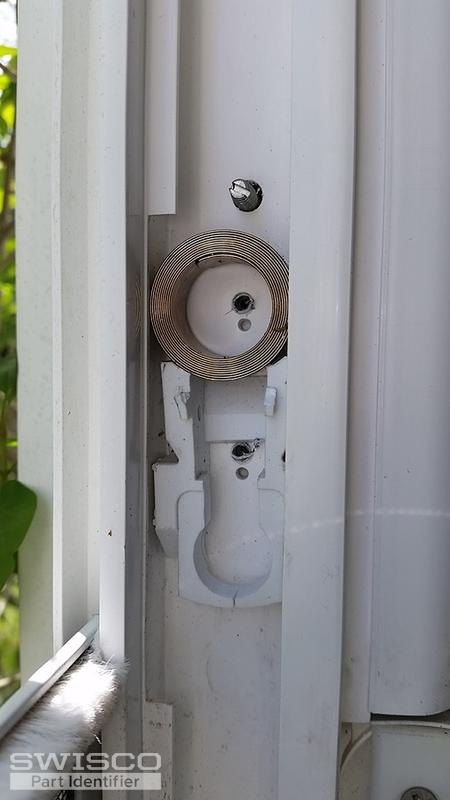

Hi Kathleen. It's a little difficult to tell what you have from this picture, or without seeing the pivot shoe removed from the window. That said, see our 15-180. I think this might be what you're looking for; but you're going to have to compare the dimensions, particularly the thickness and width, with your old pivot shoe to confirm it's a match.

Thanks for getting back to us! I agree with Bob, our 15-180 is a match for your shoe. They never made this style shoe in any other size. I can't imagine why the manufacturer would make the same shoe with only a 1/32" difference. It's possible that their official dimensions, which we used, are rounded up. Either way I feel pretty confident that it will work for you. There's nothing else on the market that comes close.

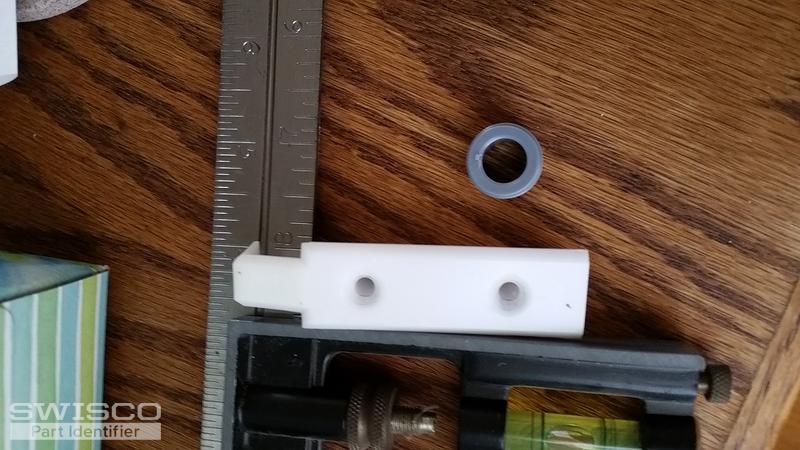

The gray piece is called a bushing, and it's a match for our 15-182. This goes on the posts you see on the detent clip (our 15-181) and cushions the coil spring so that it doesn't wobble when you install it.

We don't have a diagram but it's pretty straightforward. If you flip your detent clip over you'll see two tubes, or posts, sticking out. The bushing goes over these tubes, then the coil goes over the bushing.

Hi Kathleen. Awesome, thanks for letting us know how you made out. Thanks for considering our business, we appreciate it. Let us know if you need anything else.
