broken pivot shoe, plastic and metal

Start a new Discussion

Home Owner from Pittsburgh, PA

Aug 26, 2022 9:56 pm

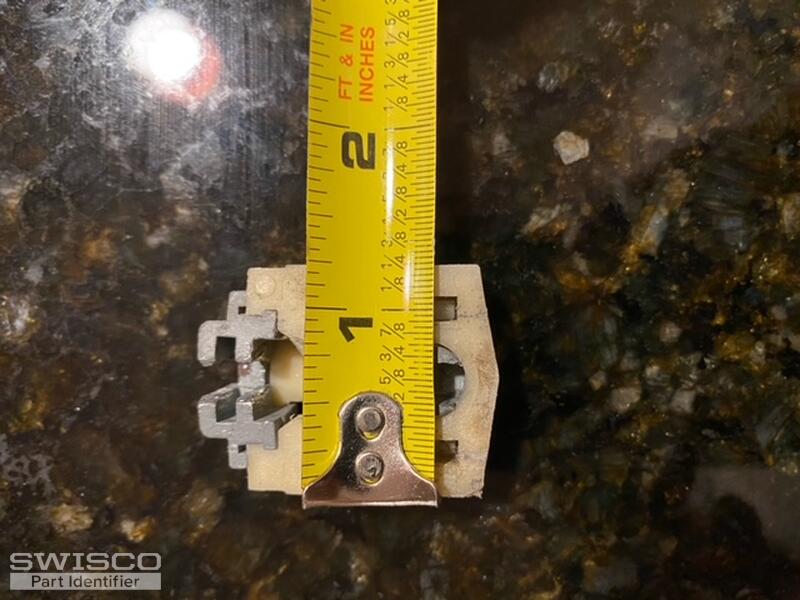

Thickness 17/32"
Width 1 1/4"
pair with spiral tilt window balance
Could you please find a replacement for me?
Thanks.

4 user uploaded images

6 Replies

Paul from SWISCO

Aug 30, 2022 2:56 pm

I'm afraid that I'm not familiar with this shoe. Before I recommend anything, can you show me a photo of the spiral balance that you mentioned? I'm looking to get a better idea of how it interacts with this shoe. That may help me track down a suitable replacement for you. Thanks!

Home Owner from Pittsburgh, PA

Sep 6, 2022 9:10 pm

Thank you for your reponse.

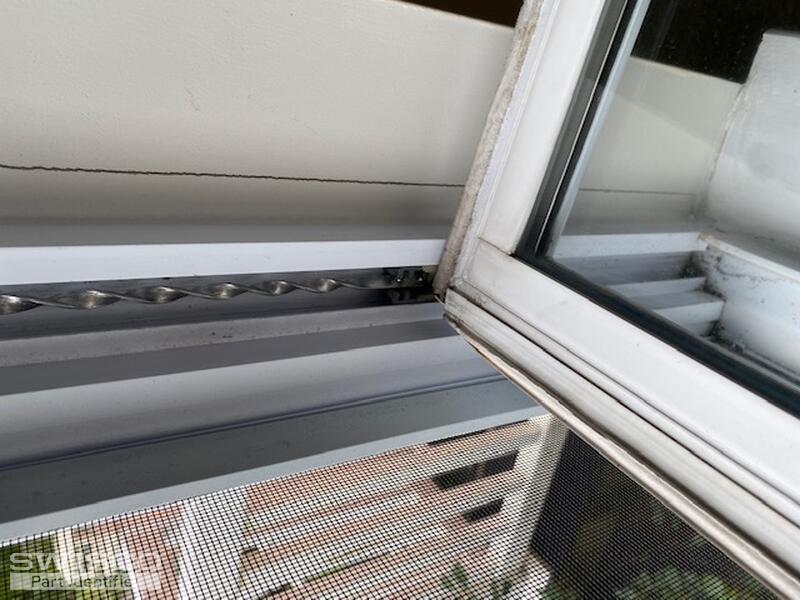

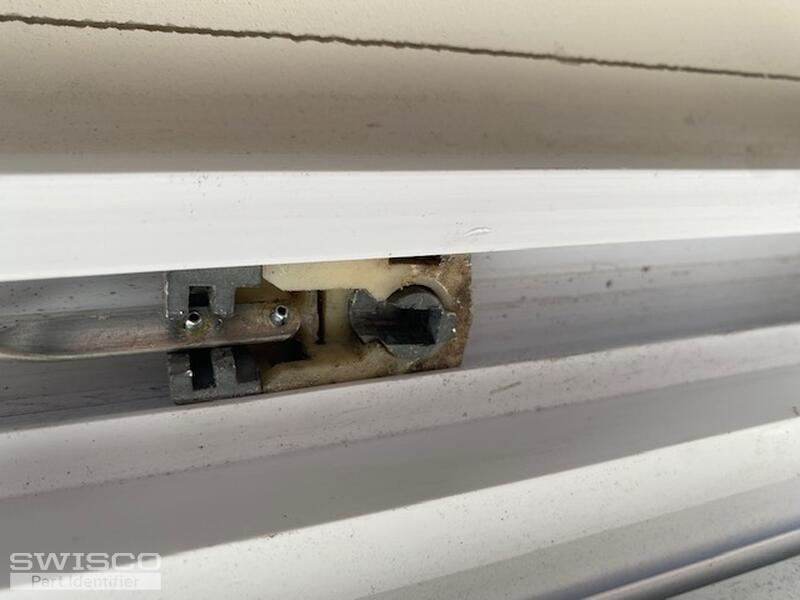

I attach two pics below.
I replace my old balance with S600-28 from SWISCO, and it works.
I am looking for pivot shoes which fitting S600-28 and the same thickness and width as the old one.
Thank you for your help!

2 user uploaded images

Paul from SWISCO

Sep 8, 2022 11:16 am

These photos are a huge help, thank you. Based on what I see here, I feel confident that our 15-178 can work for you. Even though it's an inch taller, that shouldn't affect its function. The width and thickness match, which are more important, and it should also be compatible with your balance spring and pivot bar.

Home Owner from Pittsburgh, PA

Sep 8, 2022 12:01 pm

Thank you very much for your prompt reply.
Will order them soon.

Tom from SWISCO

Sep 8, 2022 1:25 pm

Awesome, thank you! Please let me know if you needed anything else. We're always here to assist.
