bronze awning window right crank assembly

Home Owner from Port Salerno, FL

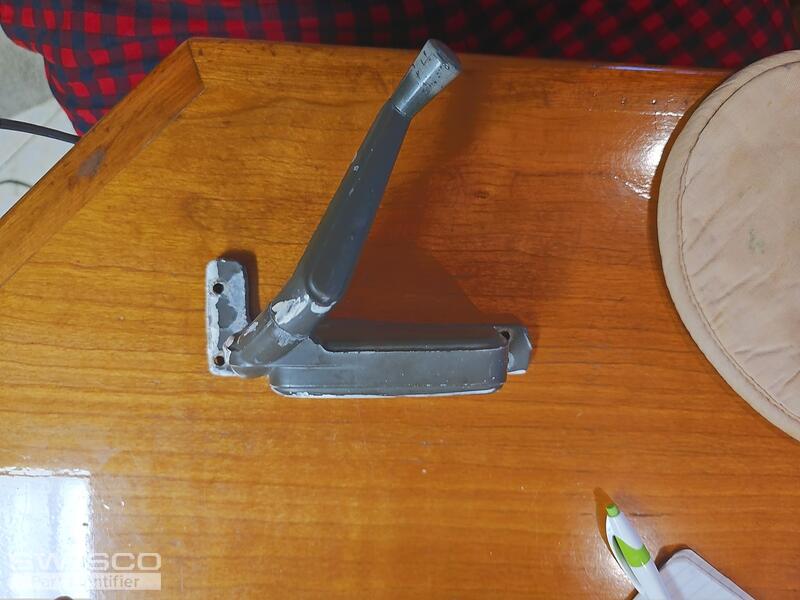

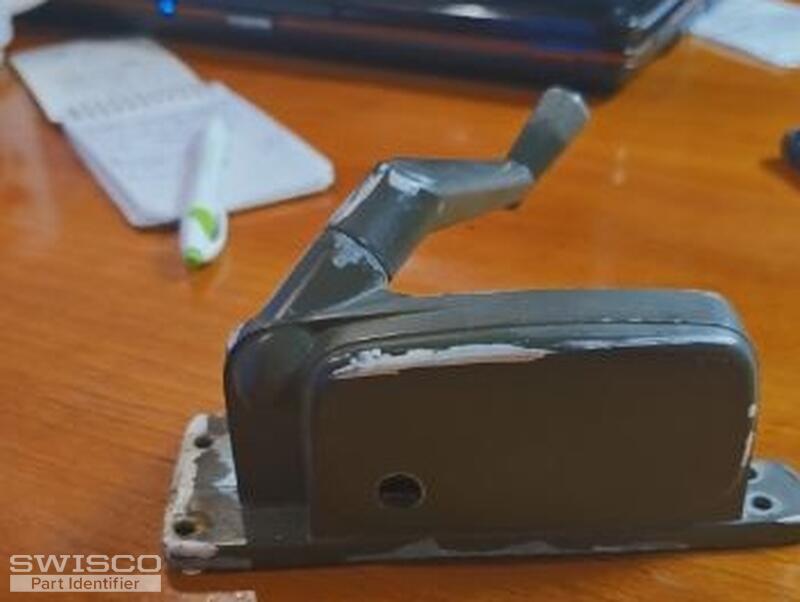

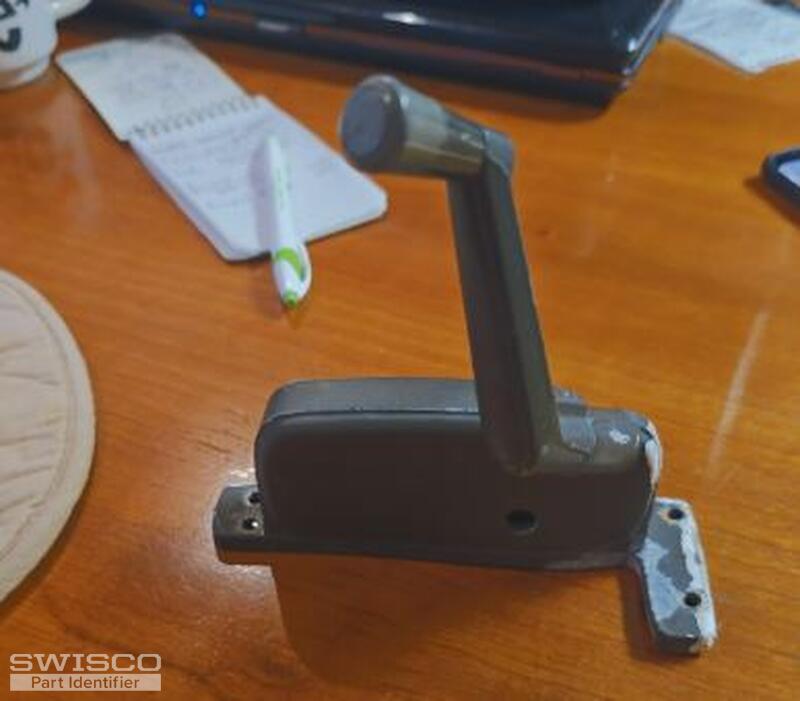

I need a replacement "bronze awning window right crank assembly" for

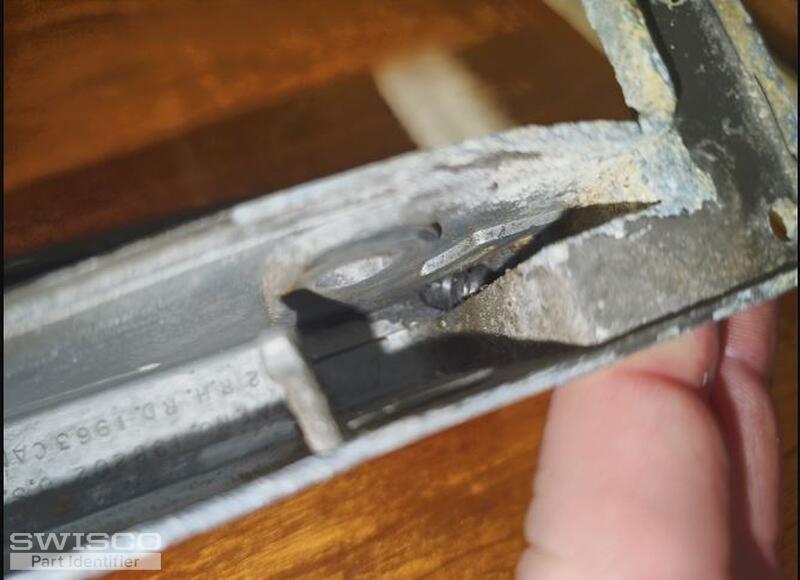

PAT. NO.198202 U.S.
2 R.H. R.D.1963 CAN
4 user uploaded images
9 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

To move forward, we will need to see the style of the link arm that connects to the window. To start I have related our selection on the page with a similar installation hole pattern. Please compare the overall dimensions and style of the arm to see how they match up!

Quick Learner from USA

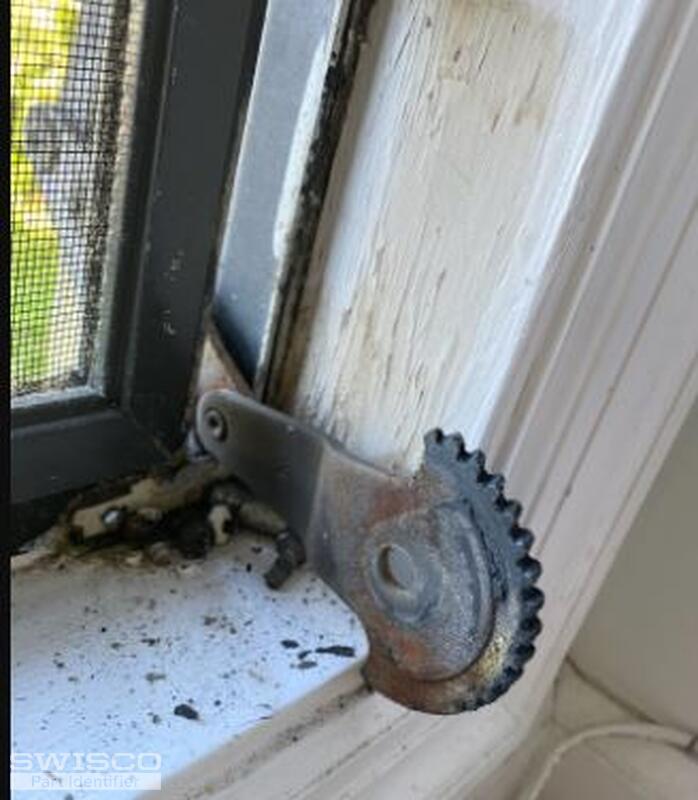

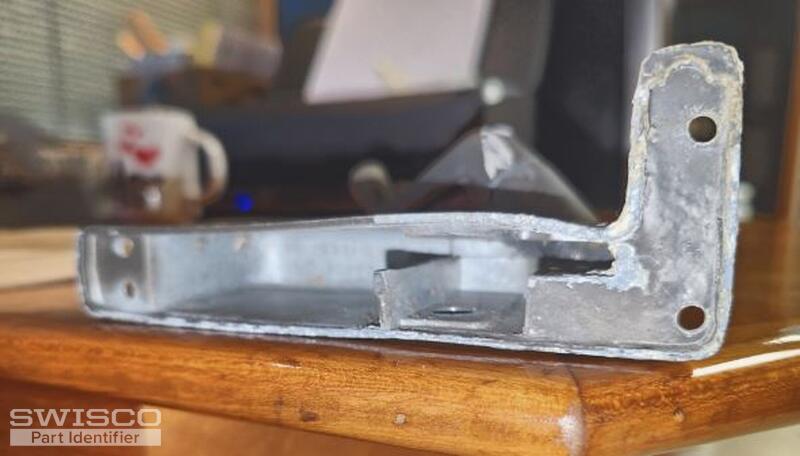

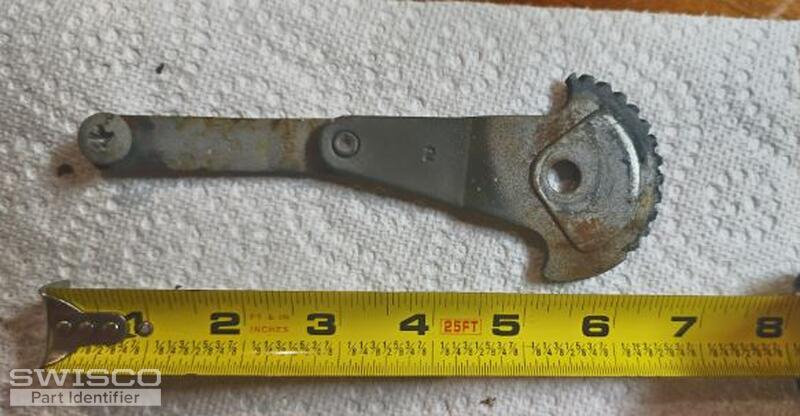

In reference to the link arm that connects to the window. Yes, It does look similar to your picture. Also, I have attached pictures of the crank assembly internals.
5 user uploaded images
Quick Learner from USA

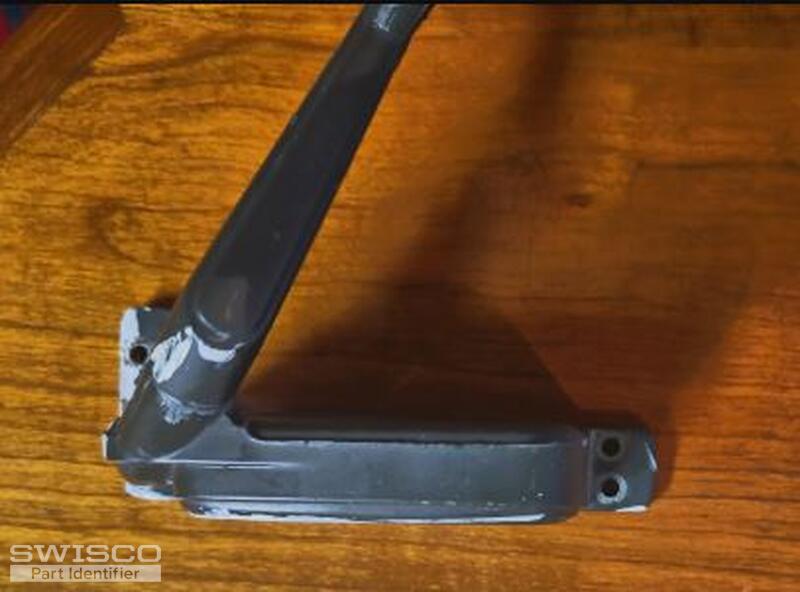

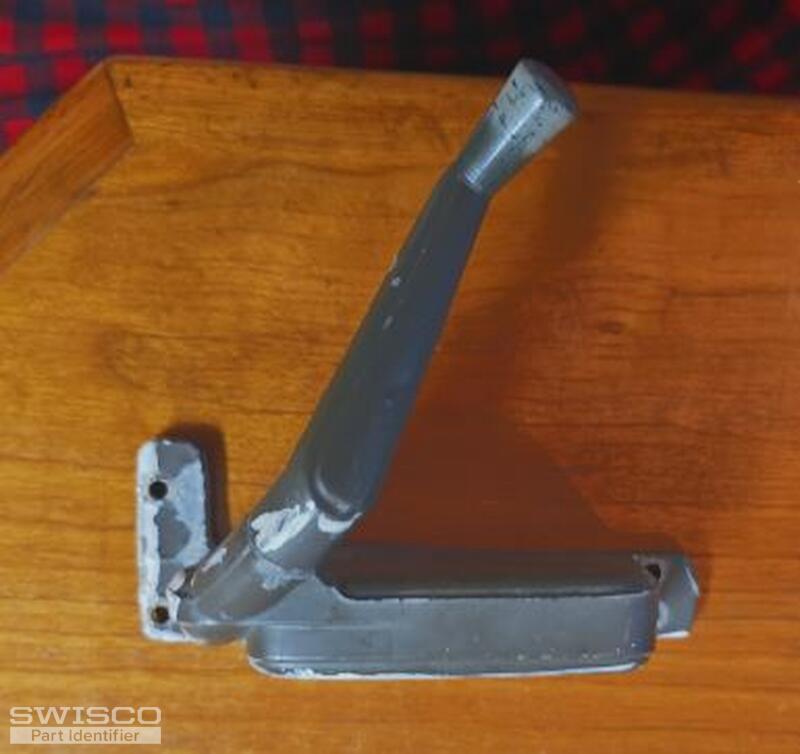

Additional photos.
3 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

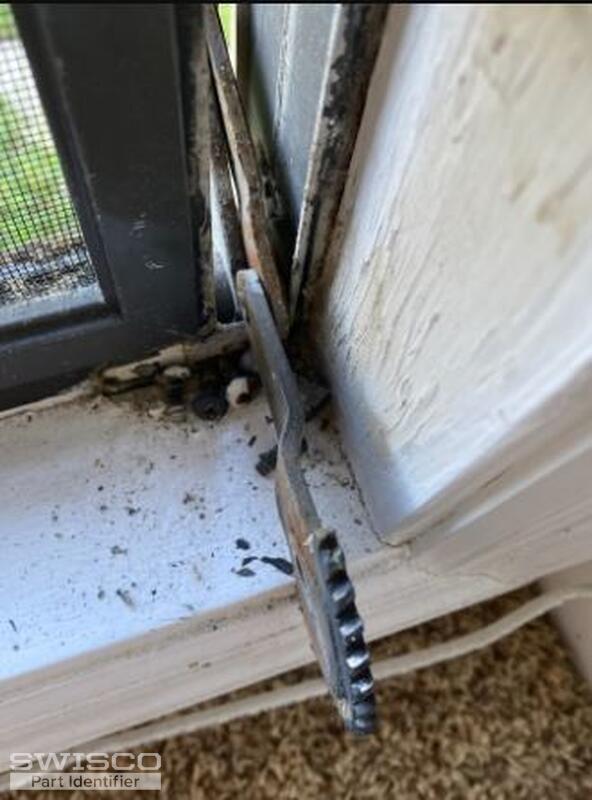

Unfortunately we cannot confirm the overall style of the link arm while still installed. It is currently being obstructed by the window. To move forward, we will need to see the arm removed to compare to the selection on the page. Thank you!

Quick Learner from USA

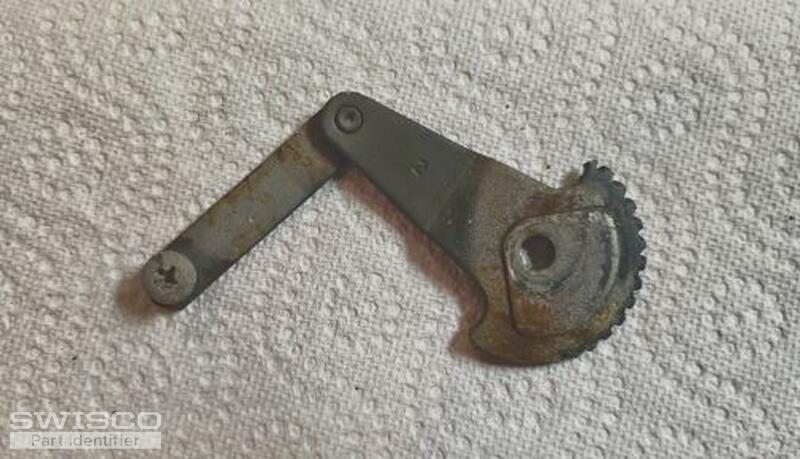

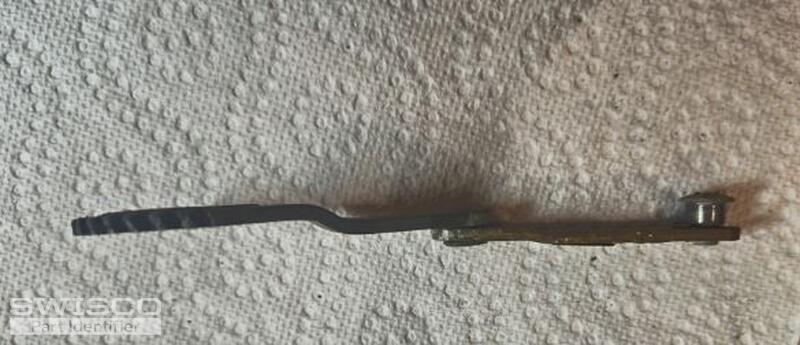

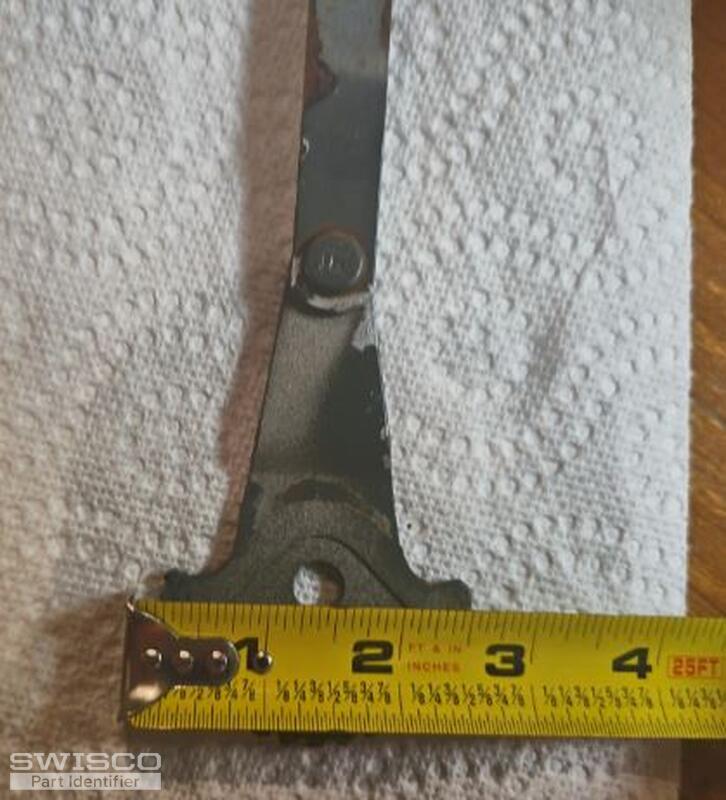

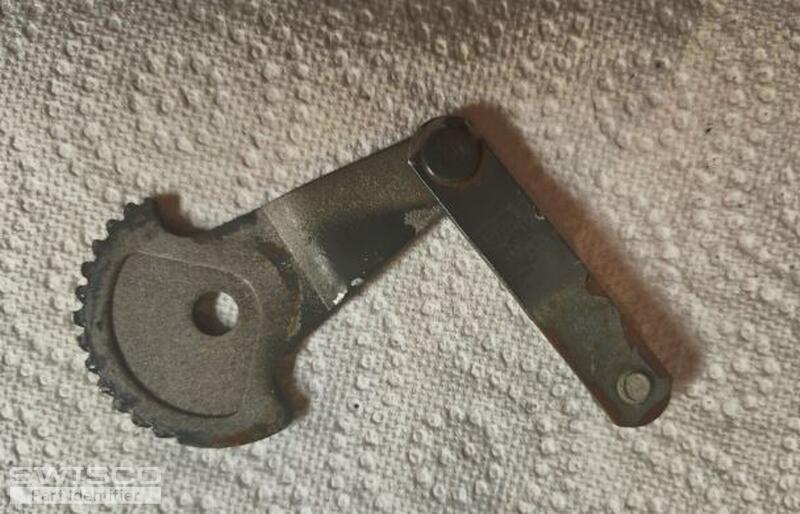

Adding internal photos.
5 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you!

It appears that the link arm has a slight offset. I cannot guarantee we can provide an exact fit, but please review the dimensions of the 39-058 or 39-411 to see how they compare. Let us know how they match up!

39-058

Dimensions for 39-058
Dimensions for 39-058

Alternate view of 39-058 Stanley Operator
Alternate view of 39-058 Stanley Operator


39-411

Dimensions for 39-411
Dimensions for 39-411

Quick Learner from USA

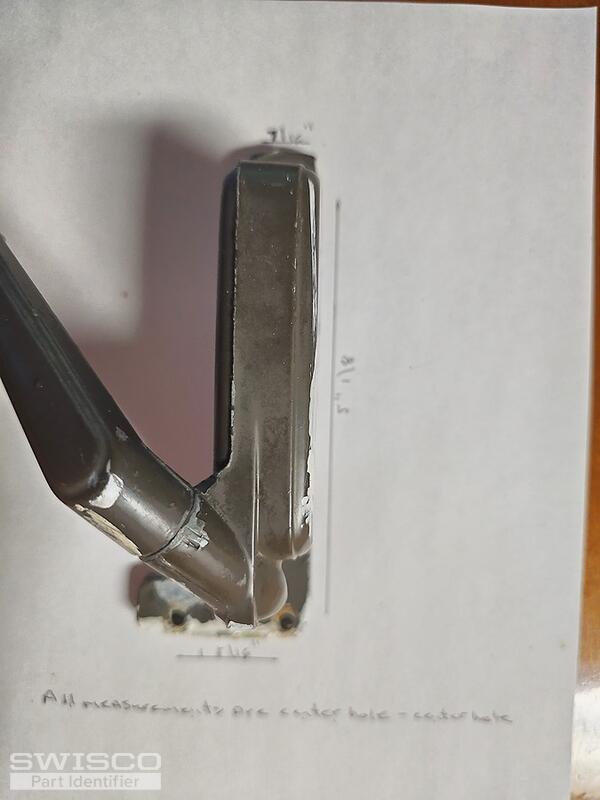

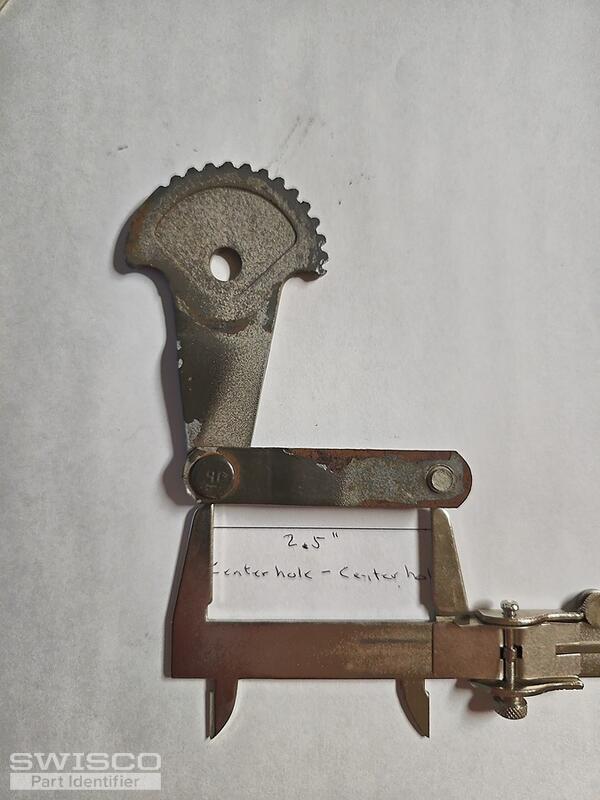

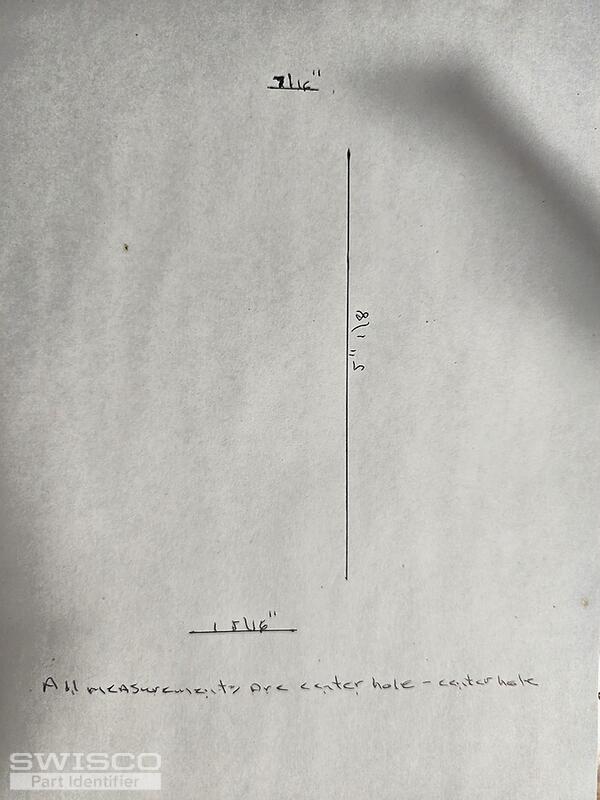

Your suggestions were the wrong dimensions. Attached you will find the dimensions from center hole to center hole. Let me know if this helps.
3 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Unfortunately after further review, we are not able to provide a suitable replacement from the dimensions provided. I am sorry that we cannot assist with your repair. Please let us know if you have any additional questions.
