caldwel 31 5 FS window channel balance

A quick learner from Fallbrook,ca 92028 says:
where do I buy the correct replacement?
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We carry a wide selection of replacement channel balances. To identify the correct replacement for you, we'll need to see an undamaged balance removed from your window since the stamp code on the balance only tells us the spring strength your balance needs to support the weight of your window sash, but not the correct balance replacement. Thank you!

A quick learner from Fallbrook,ca 92028 says:
need to replace balances 31inches long marked 31 5 FS.
please advise part number. thank you

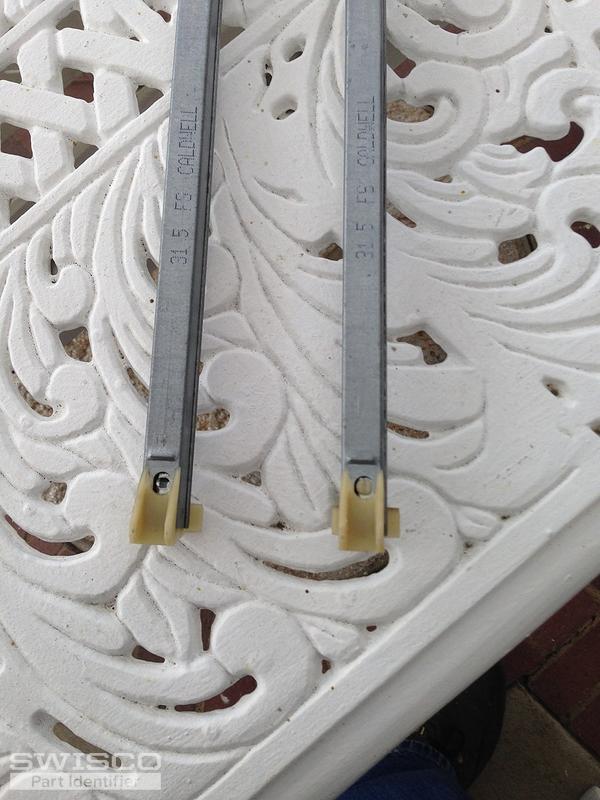

Thumbnail of the uploaded file named IMG_0080.JPG

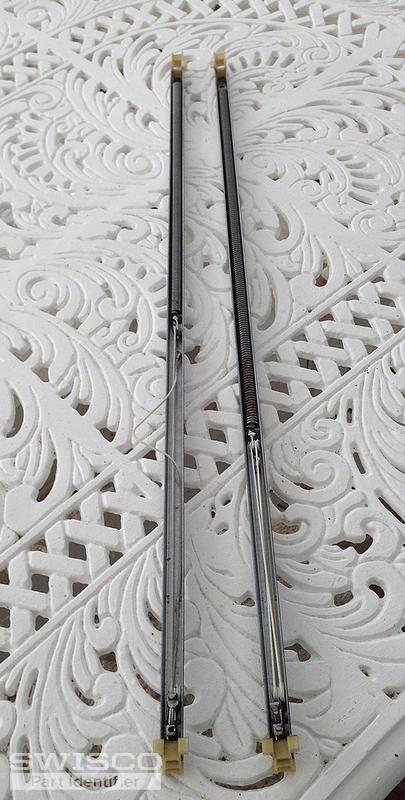

Thumbnail of the uploaded file named IMG_0079.JPG

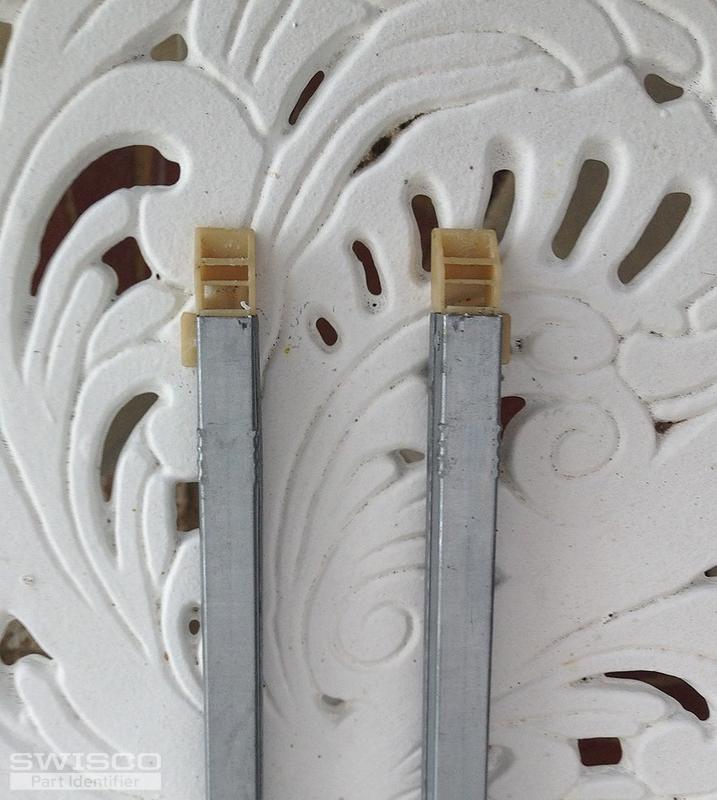

Thumbnail of the uploaded file named IMG_0081.JPG
Profile picture of Casey
Casey from SWISCO responded:

Thank you for sending over the photos. With this combination of attachments, you could have either an S380 or S385 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. I'd recommend double-checking the length of the metal channel, since your stamp would normally indicate a 32" balance. You'll also need a 3150 spring strength option for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
