caldwell 21 2 C5

A handy person from florida says:
Just wanted make sure before I order Thanks
Thumbnail of the uploaded file named image0.jpeg
Thumbnail of the uploaded file named image2.jpeg
Thumbnail of the uploaded file named image3.jpeg
Thumbnail of the uploaded file named image6.jpeg
Thumbnail of the uploaded file named image5.jpeg
Profile picture of Tom
Tom from SWISCO responded:

We can supply this balance, but it will have to be a custom order since it's not a stock configuration. What you have here is a typical 22" long channel balance but with a special 19-041 installed as a top fitting, which doesn't come with any of our products as-is. That's why we have to make it in the shop before we ship it out.

If that interests you, I just need to confirm a few details. First, how many did you want to buy? Next, can you confirm the size of the bottom fitting? I'm specifically looking for its depth. The diagram below will show you what I mean.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A handy person from florida says:

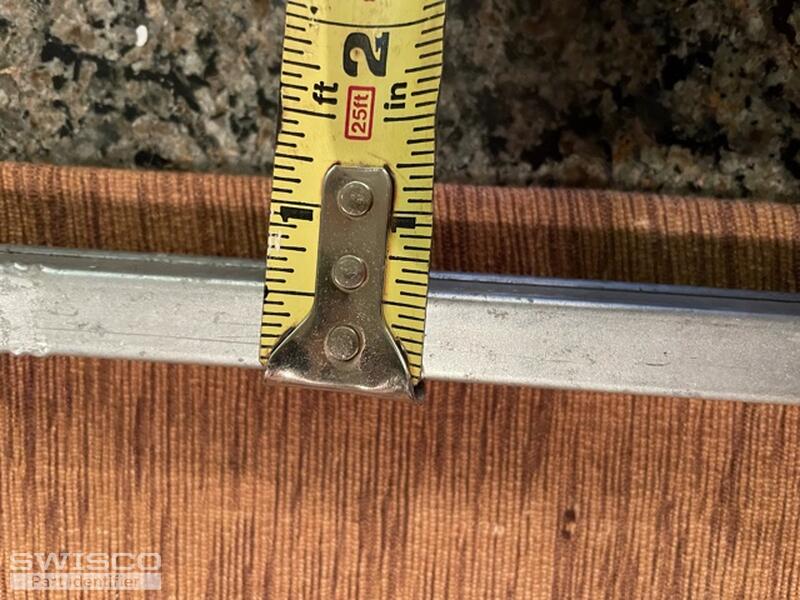

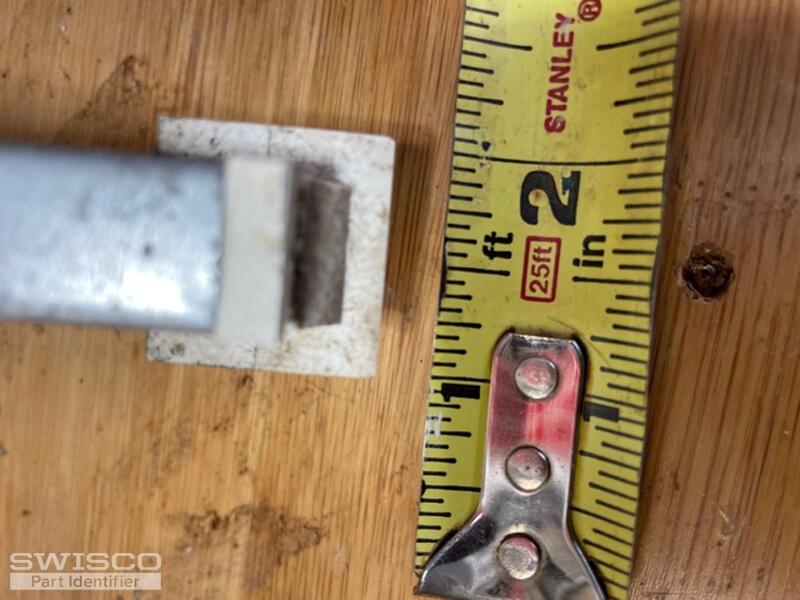

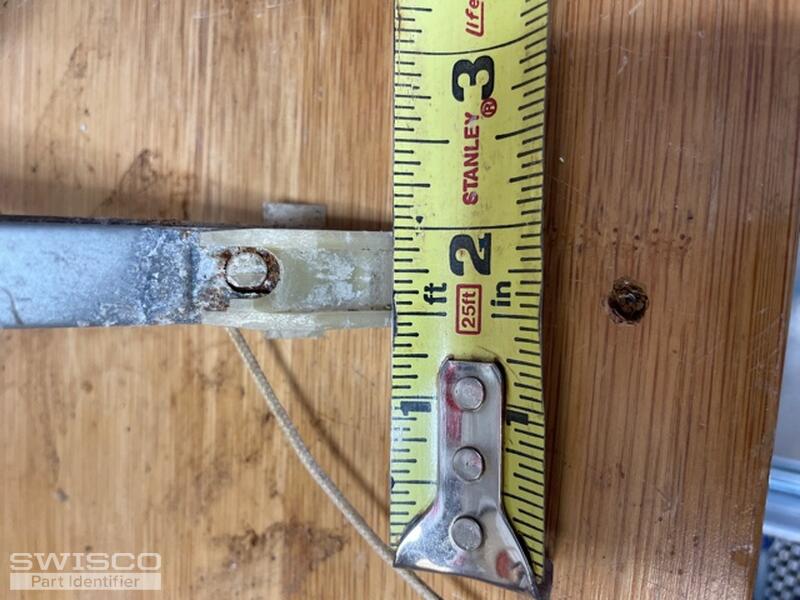

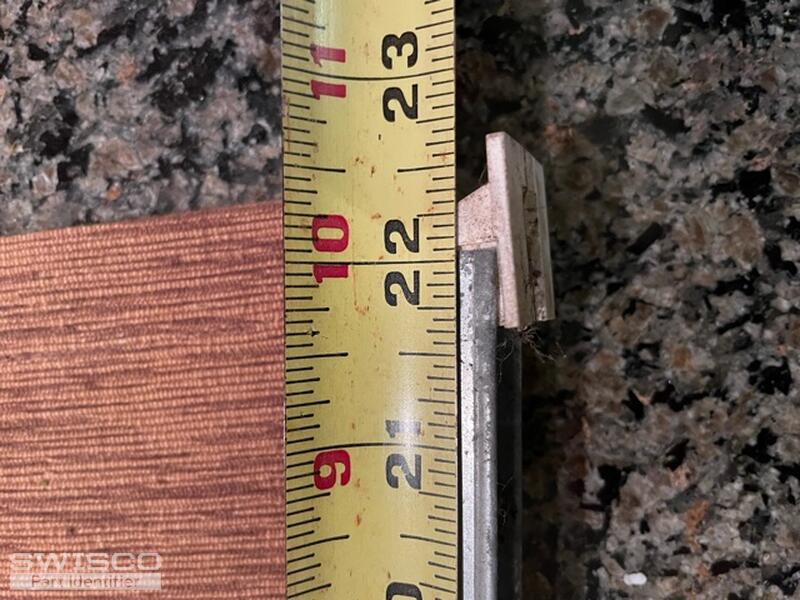

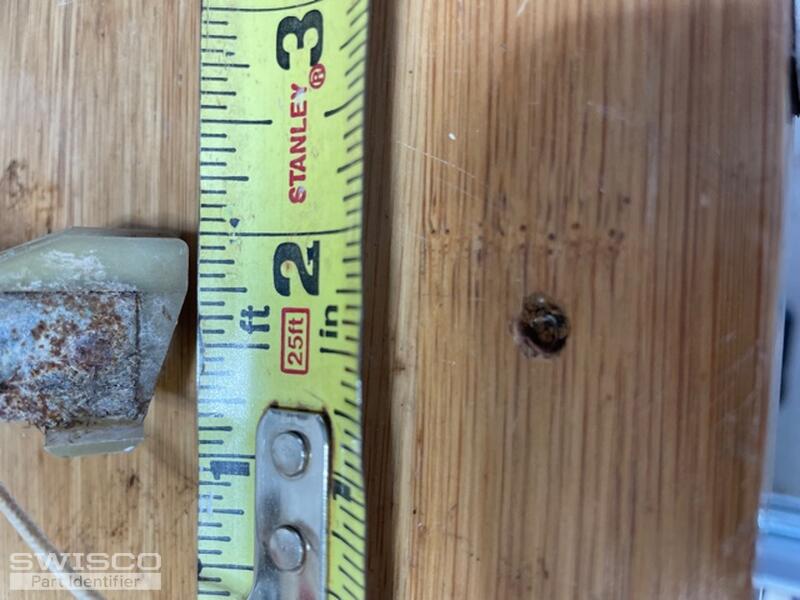

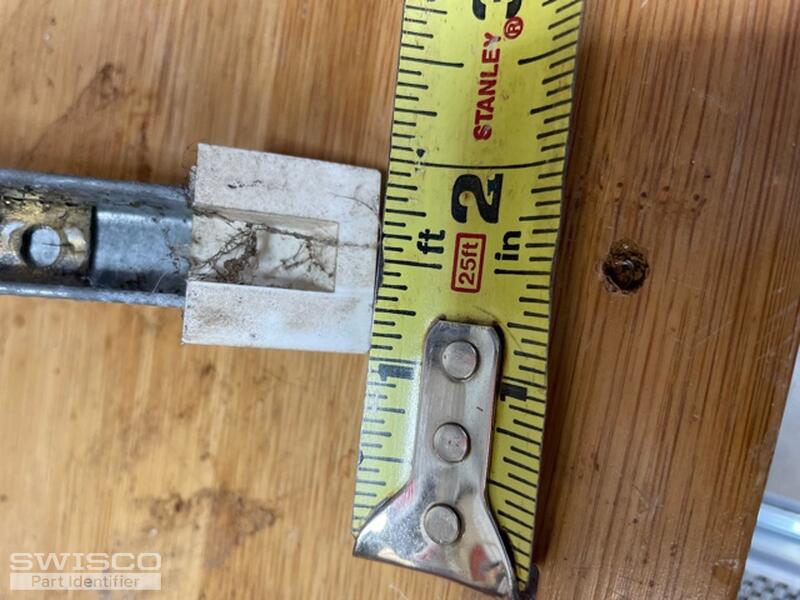

2 pictures of each end I need a total of 4 for 2 windows
Thanks
Thumbnail of the uploaded file named IMG_8592.jpg
Thumbnail of the uploaded file named IMG_8593.jpg
Thumbnail of the uploaded file named IMG_8594.jpg
Thumbnail of the uploaded file named IMG_8595.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid that I can't really make out the depth of your shoe from that first photo. Would you please refer to the diagram above and tell me which of the two options is a match? That's the only thing I need to know, then we can get the ball rolling.

A handy person from florida says:
i believe it is the S380 - 1"

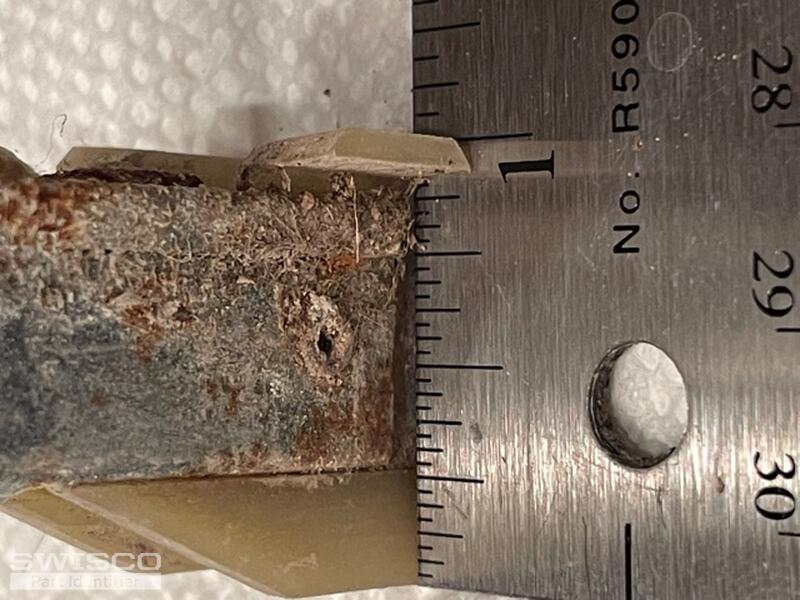

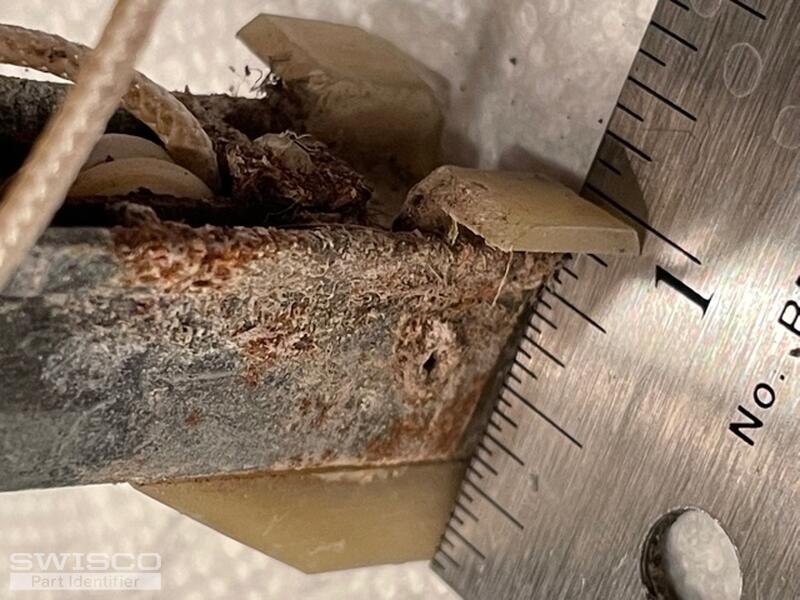

attached is a photo measured for your review. If needed I can mail to you.
Thumbnail of the uploaded file named #1.jpg
Thumbnail of the uploaded file named #2.jpg
Profile picture of Tom
Tom from SWISCO responded:

Perfect, thank you! I agree, that's definitely a 1" depth.

So what I'll do now is email you a purchase link and price quote that will allow you to add 4 of these to your cart. Please let me know if you had any other questions!
