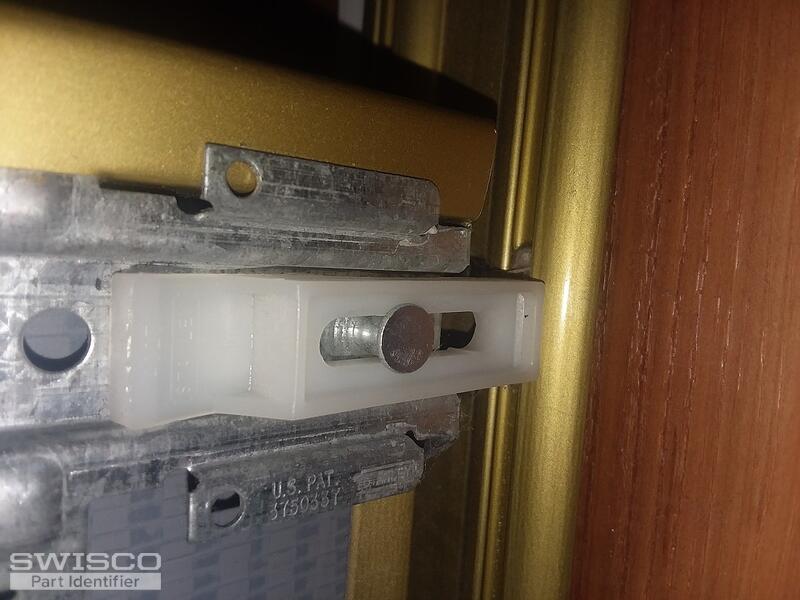

Can this be replaced with a acme 23-026?

Quick Learner from NC
Jul 27, 2018 10:51 am
352.702.1606
1 user uploaded image
3 Replies

Quick Learner from NC
Jul 30, 2018 11:19 am
Also,any tips on removal of the part?

Tom from SWISCO
Jul 31, 2018 10:24 am


Hi- thanks for posting!
You are correct in choosing our 23-026 bottom door guide. To remove the old one from the track, use a putty knife and press against the bottom nylon locking fork while raising the door from the track. To remove the bracket from the door, lay door down and with needle nose pliers, work out the locking fork out of the door frame. If you still have questions don't hesitate to reach back out to us.
