casement linkage

A home owner from Branchville, NJ says:

May 18, 2023

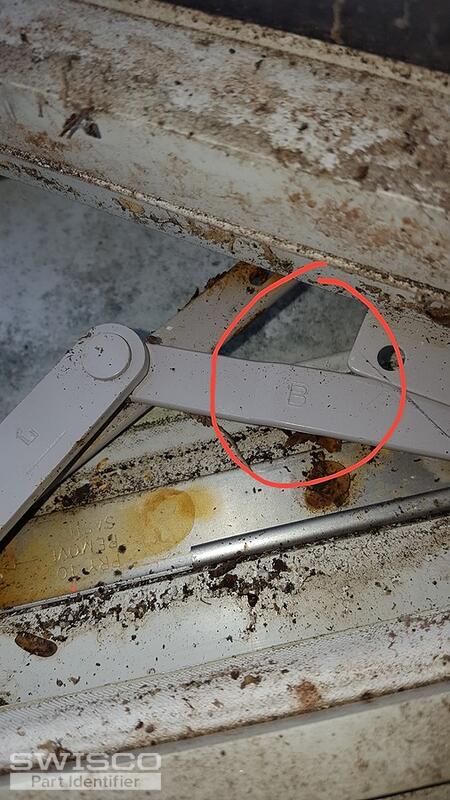

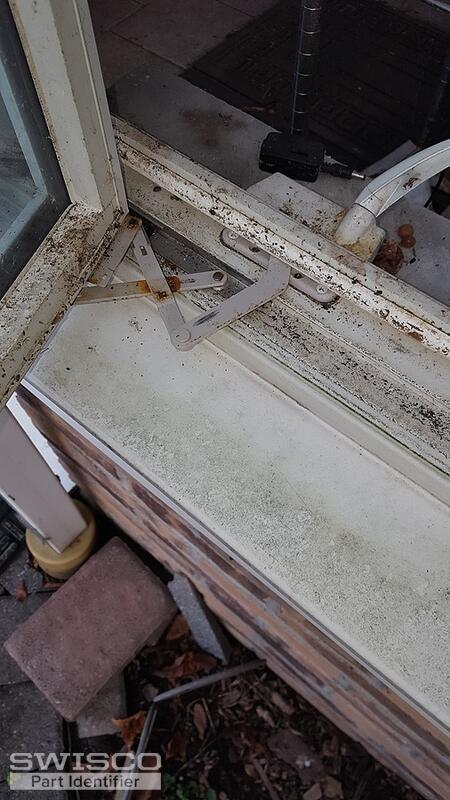

I have many Shuco casement windows with Truth actuators. The rivets have rusted off where they attached to the bracket. The only thing stamped on them is the letter "B" which I assume means bottom. There are left and right windows and top and bottom brackets. The arms of the linkage measure 4, 5 and 4".

Thanks

Thumbnail of the uploaded file named 20171014_171636.jpg

Thumbnail of the uploaded file named 20171014_092538.jpg

Thumbnail of the uploaded file named 20171014_144902.jpg

Casey from SWISCO responded:

May 19, 2023

Hello,

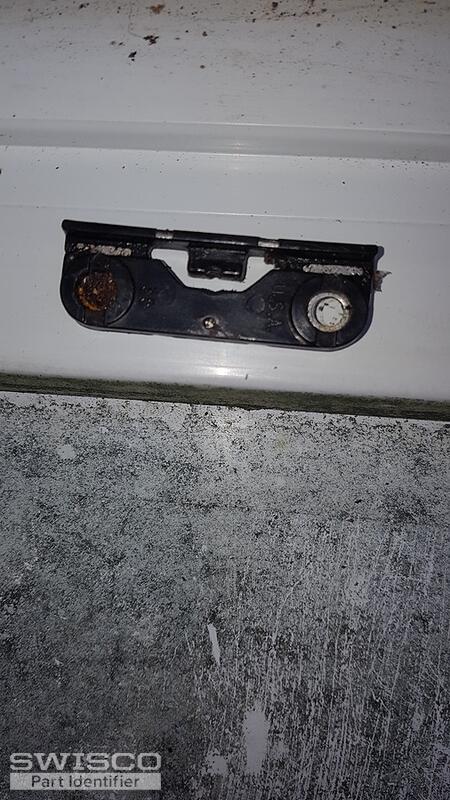

Unfortunately, the black slide piece shown in your photo is not available separately but we do offer the 36-048 hinge set, which is quite versatile. We'll include the specifications from our product page below.

If you need new operators as well, take a look and compare the 39-171 and 39-172 to your assembly. Thanks for posting!

Detail of 36-048

Additional dimensions for 36-048

Dimensions for 39-171

2-Bar Hinge Set, 10"

36-048

$17.47

Truth Hardware Dyad Operator

39-171

$32.55

Truth Hardware Dyad Operator

39-172

$32.55

How to Replace a 2-Bar Hinge Set on a Casement Window

VIDEO

WATCH >

Connecting a casement window operator to stud bracket

VIDEO

WATCH >

Anatomy of a casement window

VIDEO

WATCH >

How to identify casement and awning operators

GUIDE

READ >
