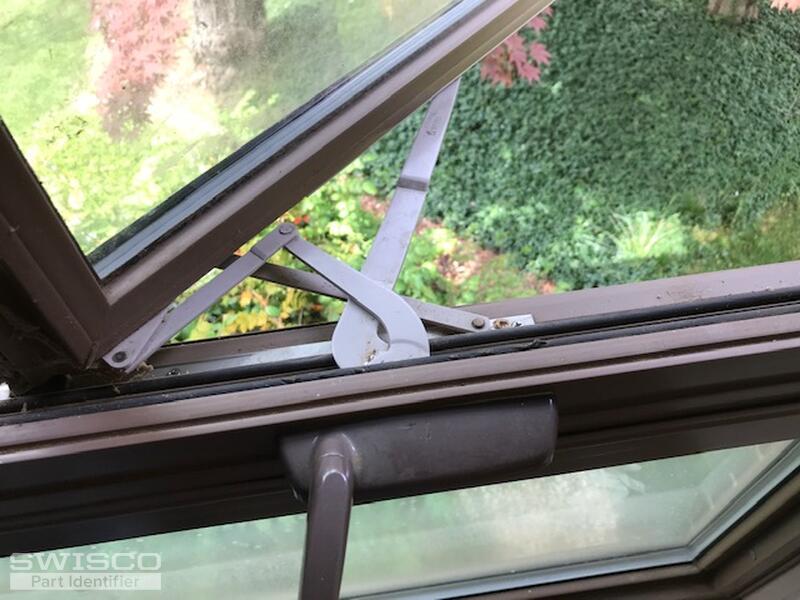

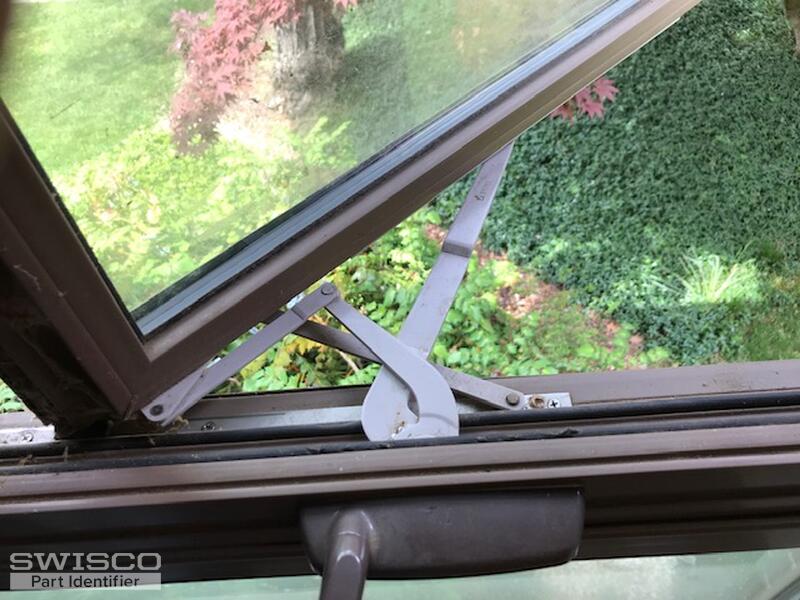

Casement windows from 'Great Lakes' no longer in business. Has an additional bar which pulls the hinged corner about 4 inchs when opening.
a part number on the bottom '022800 23:40' and on one of the arms there is an 'up arrow' and the word in caps 'TRUTH'
looks a lot like 'Encore dual arm' , dimensions look right too.
casement winder 'skips teeth" and no longer pulls window all the way cloased
Home Owner from Columbia md
May 22, 2021 3:07 pm
5 user uploaded images
4 Replies
Tom from SWISCO
May 26, 2021 1:01 pm
It definitely sounds like you need a new operator. We can help, but in order to make a recommendation I will need you to disconnect the long, straight arm from the track and show me the guide at the end of it. We carry a few different styles and that will help me narrow it down. Yours is currently too obscured by the track to make out.
Home Owner from Columbia md
Jun 5, 2021 2:28 pm

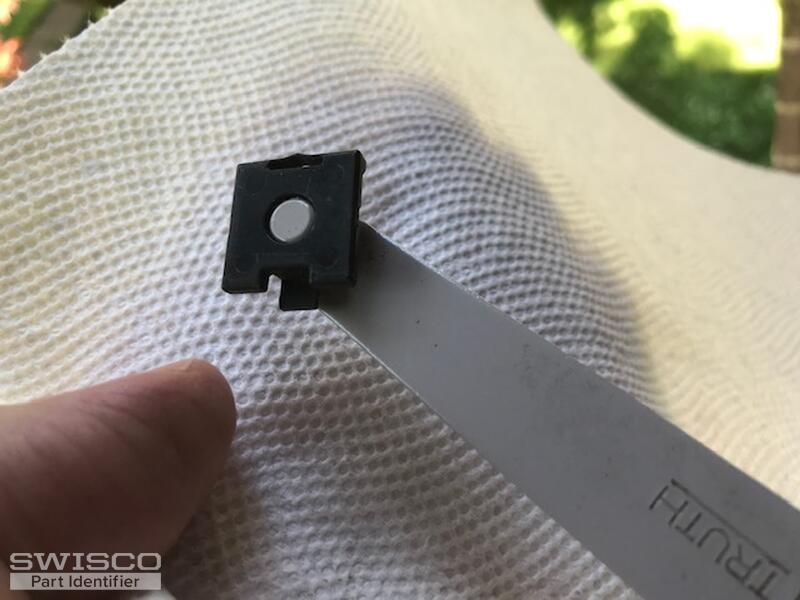

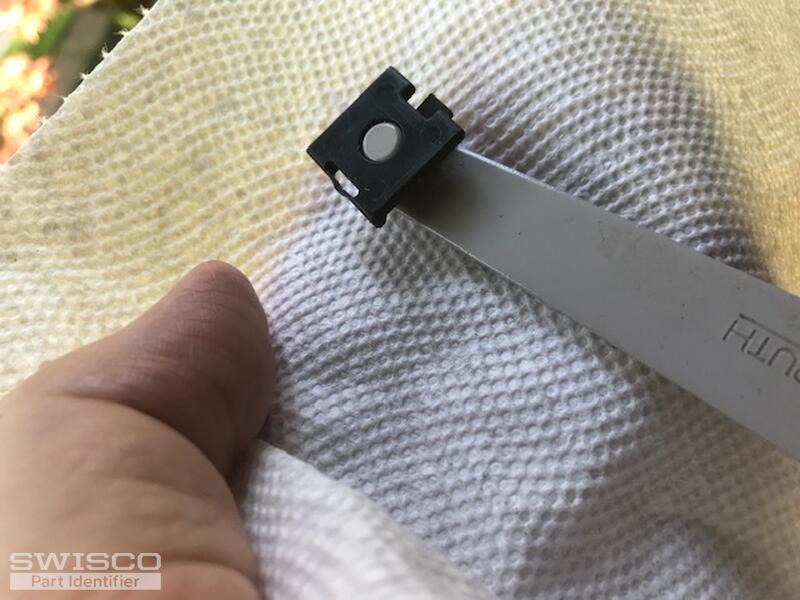

see guide photos attached
2 user uploaded images
Tom from SWISCO
Jun 7, 2021 8:52 am
Thank you! This operator is a match for our 39-253RB. We also sell the 39-253LB for the opposite side, as well as the 39-452 and 39-451 covers/handles, which are sold separately. Finally, we sell the slider itself, which is our 39-529, but yours appears to be in good condition and you can likely reuse it.
