Replacement Window Operator : SWISCO.com

Home Owner from Fairfax VA

Apr 13, 2021 8:38 am

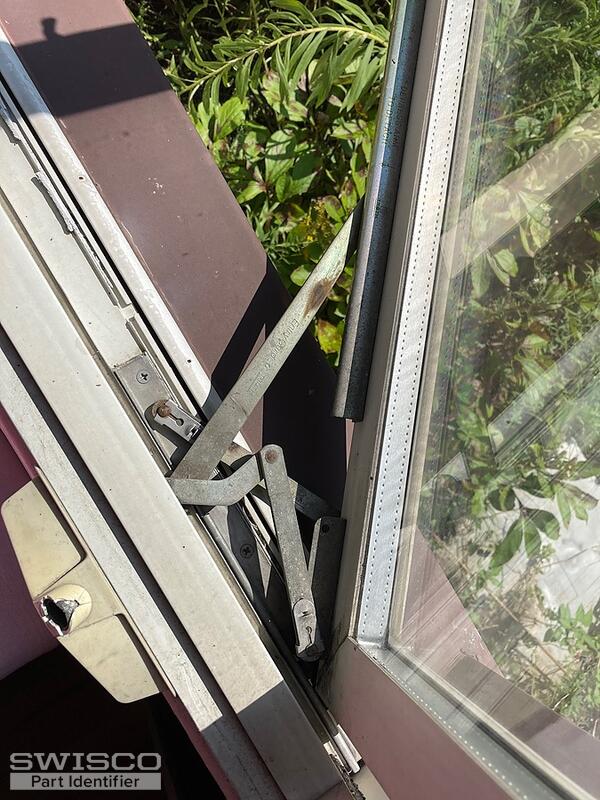

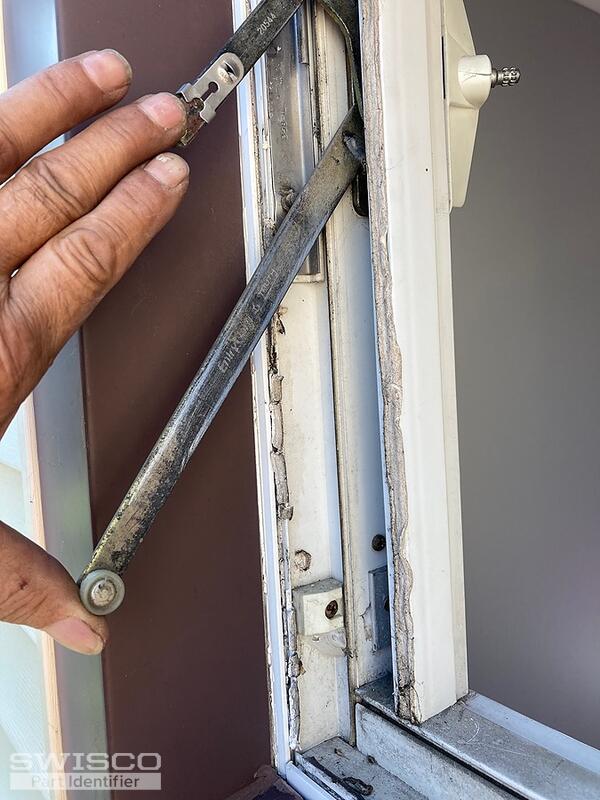

I have a broken casement window operator. It says Entry Guard Truth. The number on the arm is 20544. The number on the cylinder barrel is 30710. The short arm is 3 15/16" center to center of the holes. The outer mounting screw holes are 4 7/16".
Looking to replace this.

3 user uploaded images

8 Replies

Casey from SWISCO

Apr 16, 2021 9:59 am

Hello,

Take a look and compare the dimensions of our 39-031 and 39-032 EntryGard operators to yours. Thanks for posting!

Home Owner from Fairfax VA

Apr 16, 2021 10:49 am

Thanks for this.
It looks close.
The one I have, the short bar, (4-7/16") has a step UP as it leaves the crank mechanism. It looks like these all step DOWN as the leave the crank mechanism. Will this matter? Are these interchangeable?

Casey from SWISCO

Apr 16, 2021 11:04 am

We've seen this operator with a different offset in the past. Your operator is no longer made but our senior experts are confident that the new version will still work, though you may have to manipulate the shorter link arm to attach it to the stud bracket.

Quick Learner from Kenmore ny

Sep 15, 2022 1:39 pm

I have awning windows with truth entry guard 20544 that I need to replace the operator.
Also have a casement with truth 358-1L that also needs replacement

2 user uploaded images

Casey from SWISCO

Sep 15, 2022 1:46 pm

Hello,

Have you seen the 39-031 and 39-032 that we recommended in this thread? Take a look and see how the dimensions shown on our product pages compare to your assembly. Thanks for posting!

Quick Learner from New York

Nov 1, 2023 11:27 pm

Is the product 39-031 for the left-hand casement window operator?
Please confirm the left-hand casement is where the left side of the window push inward and the right side of the window swings outside looking from the exterior.

Casey from SWISCO

Nov 2, 2023 8:24 am

We actually determine the handing for these operators based on the side of the handle spline that the arms gears are mounted on. Note that the 39-031 has the gears mounted on the left side, while the 39-032 has them mounted on the right. Take a look and compare the images below to the operator that you're replacing.

Dimensions for 39-031

Dimensions for 39-032
