casement window parts

Quick Learner from vermont

Mar 31, 2024 5:46 pm

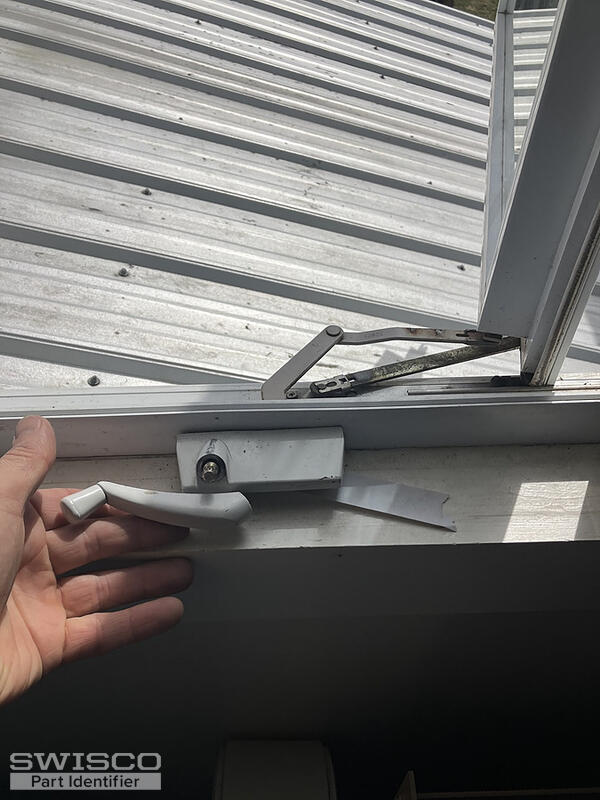

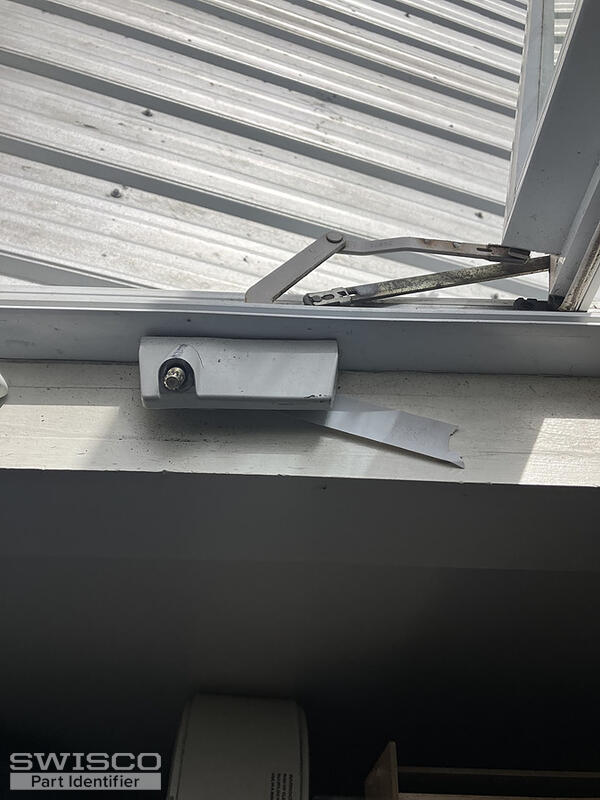

hi there. i need operator and hinge for this window.

2 user uploaded images

5 Replies

+ Add a Comment

Bob from SWISCO

Mar 31, 2024 9:46 pm

EXPERT

Thanks for posting. At first glance, this looks like the 39-171 Dyad Operator. Please compare with the dimensions below and let me know if anything differs. For a handle that works with this mechanism, see the 39-114L sold separately. For a hinge set, see if the 10" 36-048 matches what you have. Let me know if you have further questions.

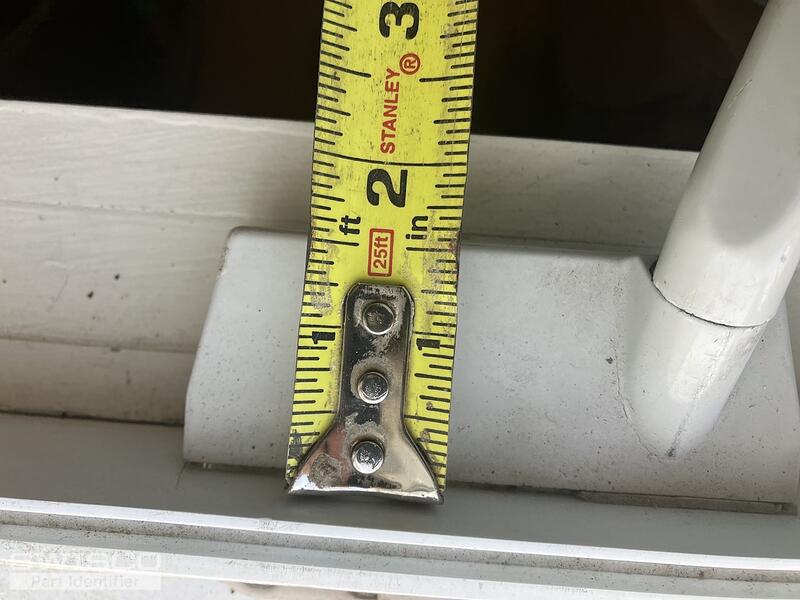

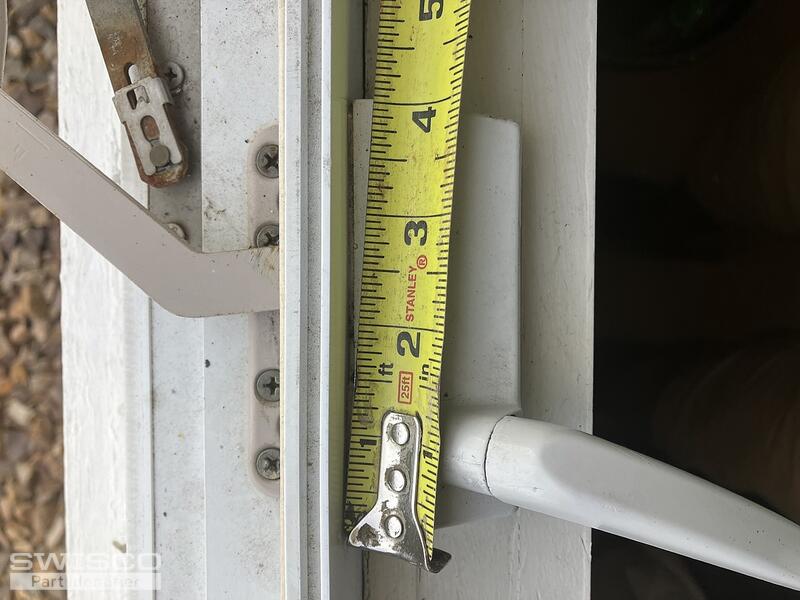

Dimensions for 39-171

Detail of 36-048

Quick Learner from vermont

Apr 4, 2024 5:16 pm

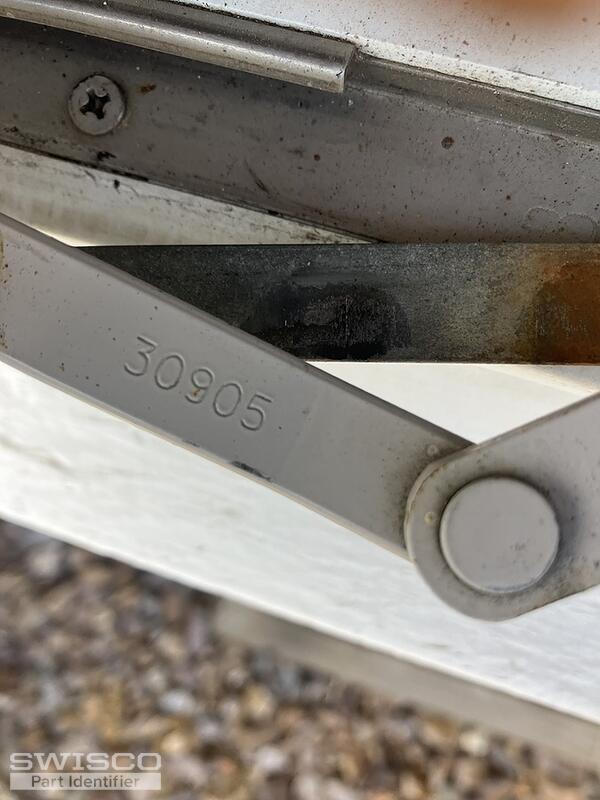

thank you. i am attaching 2 additional photos of operator; it is 4 inch long and 1 1/2 inch wide, rectangular in shape. 30905 is the number listed on its arm. i do not need any hinges, they are in good shape, all I need is operator, its arm and crank handle.

4 user uploaded images

Bob from SWISCO

Apr 6, 2024 12:41 am

EXPERT

The exact size of the operator body shouldn't matter much. The style has changed a bit with the newer replacements, but with rare exception it will fit the original space just fine. More importantly is the dimensions of the split-arm. Let me know if those differ from what's listed below in any way. If it doesn't then you should be good to go.

Dimensions for 39-171
