casement and awning window operators

A contractor from Coppell, TX says:

Hello,

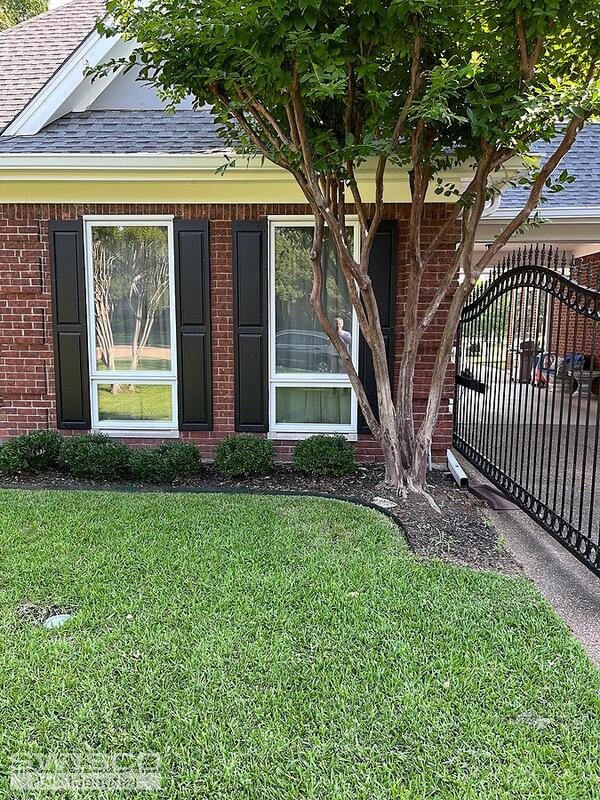

I am trying to determine what parts I need to repair the operation of these casement and awning combo windows. These windows are approx 36 x 84. The upper sash of the window (36 x 60) is a casement and the bottom sash (36 x 24) is an awning.

7 casements and 3 awnings are having operation issues.

I am hopeful these photos will help determine what parts are needed.

I am understanding that I may need to visit this client's home again if I need additional information.

Thank you very much for your assistance.

Kurt

Thumbnail of the uploaded file named IMG_0713.jpg
Thumbnail of the uploaded file named IMG_0714.jpg
Thumbnail of the uploaded file named IMG_0720.jpg

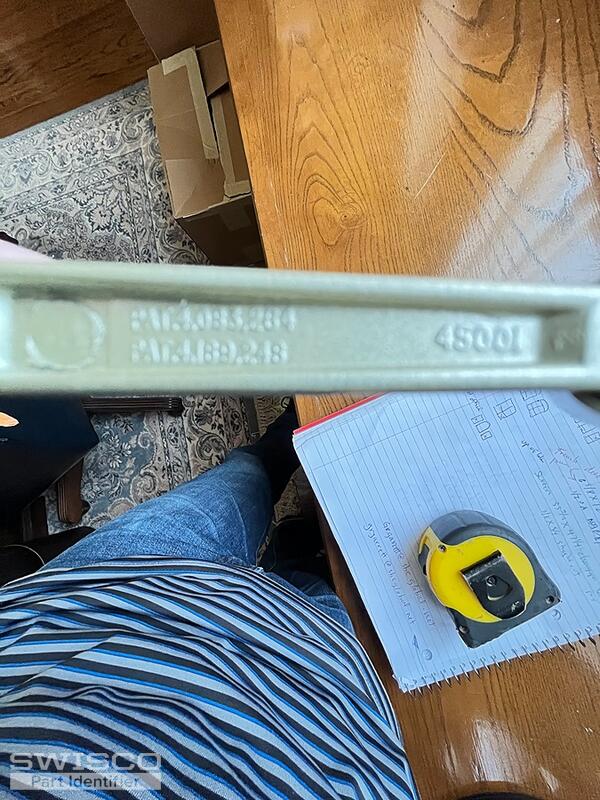

Thumbnail of the uploaded file named IMG_0723.jpg

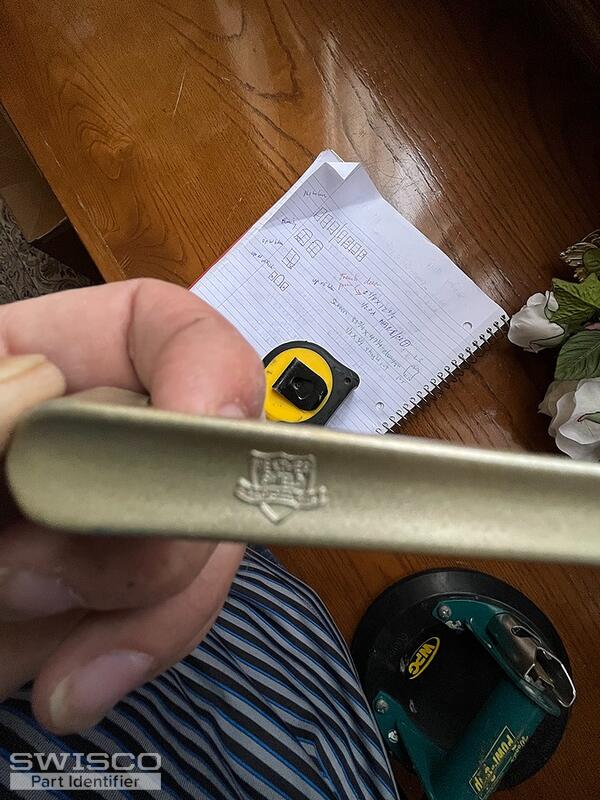

Thumbnail of the uploaded file named IMG_0722.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi, Kurt.

From what I can see, your operator's arm looks similar to our 39-348 awning operator which uses the 36-078 shoe stud (sold separately). Look over our specifications and compare them with yours to see if this matches what you need.

A contractor from Coppell, TX says:

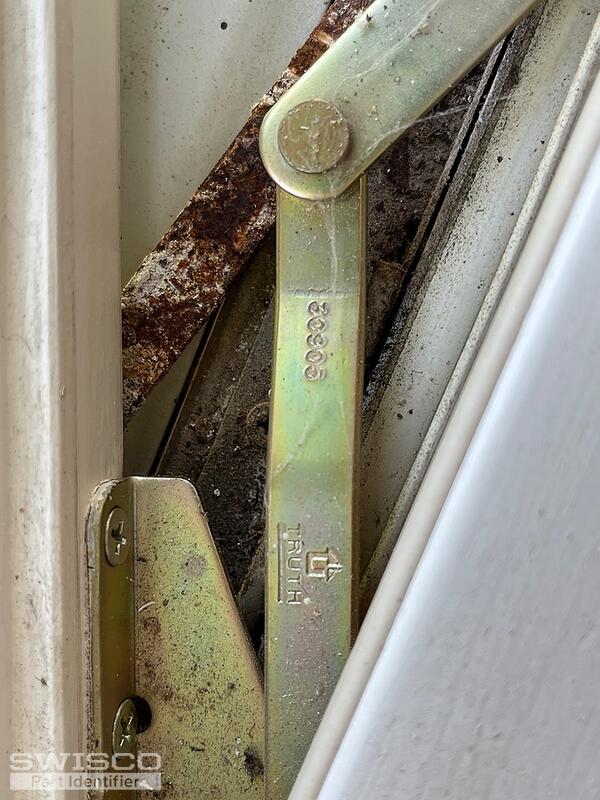

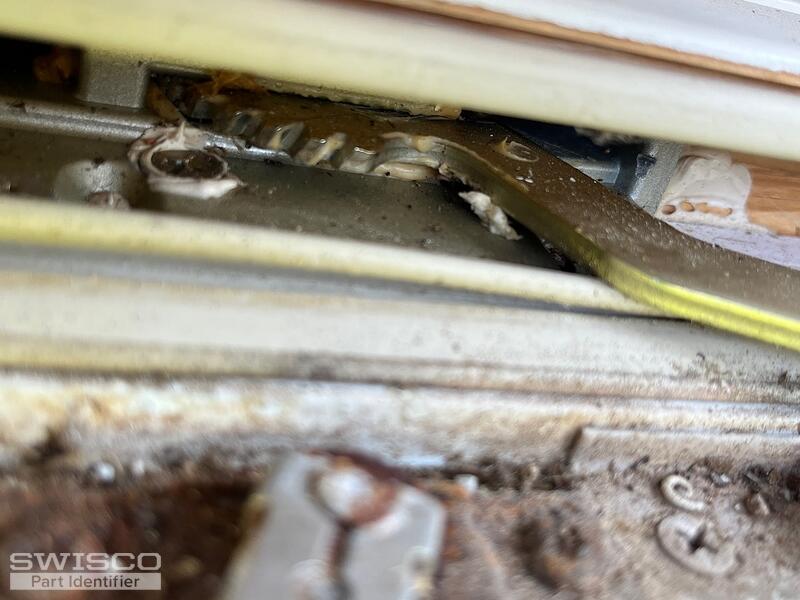

Hello and that info was very helpful for the awning portion of these windows. I have since returned to the home and took photos of the upper sash hardware, which is casement. It appears that the lever with the teeth on the end are not engaging with the gear attached to the crank handle. The hardware in the photo has parts that are rusted as well. I did discover these are old WeatherShield windows. If you can assist me with the operation hardware (Truth 30905 stamp) of the casement sashes that would be great! Attached are more photos. Thank you, Kurt
Thumbnail of the uploaded file named 60876699-8238-486F-B6DC-2866A5552ACF.jpeg
Thumbnail of the uploaded file named AEF2B4A5-1358-4572-87D9-BF4B32F7CD46.jpeg
Thumbnail of the uploaded file named 2372B769-B146-4436-9DC5-9600AC2D183D.jpeg

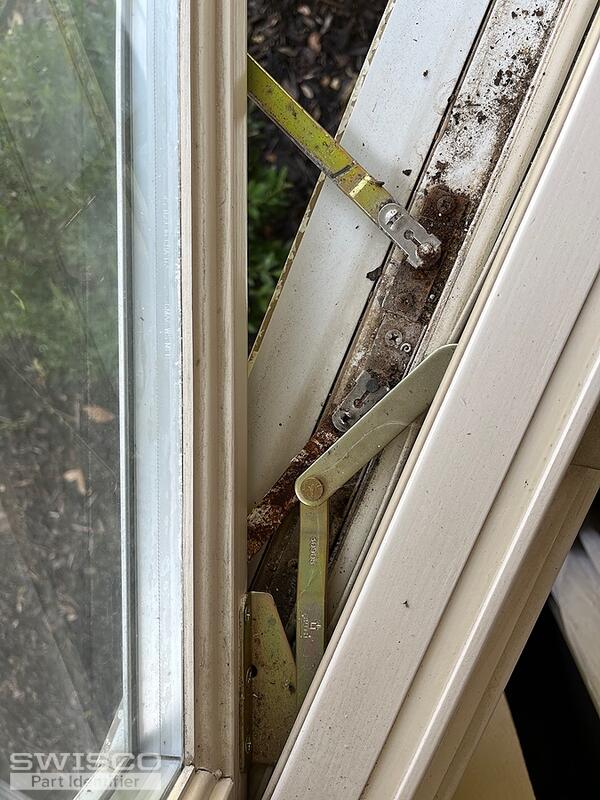

Thumbnail of the uploaded file named E6CD7E50-59BF-4754-98A1-F7B18401E4AE.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Certainly! This casement operator reminds me of our 39-171 and 39-172 . For the hinge, see our 36-048 . Compare our dimensions with yours to confirm these match what you need.
