champion window pivot bar

Home Owner from Colorado Springs, CO

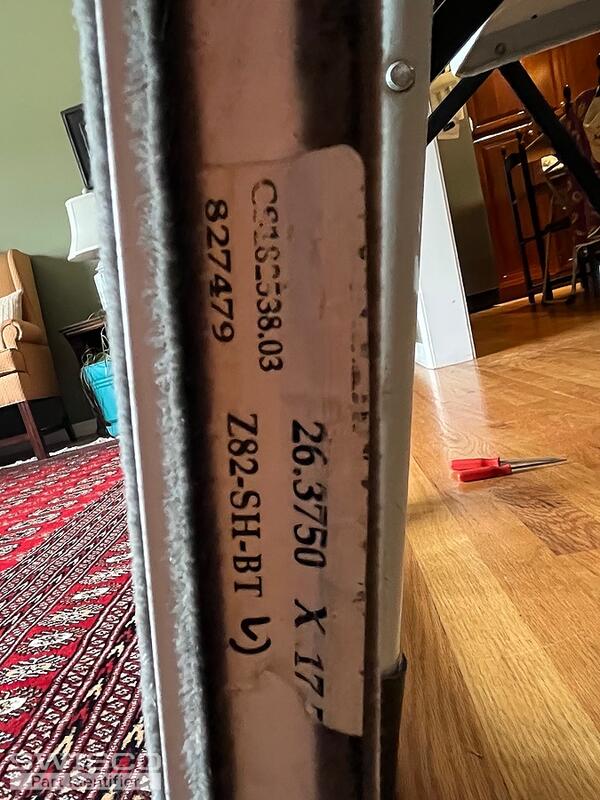

A pivot bar on my window snapped off. IMG_2316.jpeg has measurement details as well as the broken part shown; the only markings are either a 9 or a 6 in a circle with 2 alignment (?) lines near the outer end of the bar IMG_2323;and IMG 2320 shows the intact pivot bar in place (minus screws). IMG_2314 shows the original part information for the window. Pretty sure I need part product code 26-226. Also, should bent bars be replaced, and I haven't come up with a way to remove the remainder of the broken piece from the window - suggestions?

Thanks in advance for your help.

Lynne

4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I agree that your pivot bar resembles the 26-226 but the dimensions are an important factor. I'd recommend double-checking the width of your pivot bar since ours is a bit larger at 9/32" as shown below. Thanks for posting!

End view of the 26-226 pivot bar
End view of the 26-226 pivot bar

Home Owner from Colorado Springs, CO
Got the calipers out - 9/32" it is! Thanks foy your reply. I'm going to go ahead and order a pair for each window, just in case.
Casey
Casey from SWISCO
SWISCO
Expert

Great! Just let us know if you have any other questions.
