channel balance 30" 380 version

A quick learner from Ormond Beach FL says:
August 9, 2020
I had ordered the 2950 version and used them on wider/heavier windows. Attempted to use these on 25 lbs windows and they keep moving past the window back to the stop clip. I am assuming the spring is just too strong for the lighter windows. However there is a slight groove in the frame that one side of the shoe travels in that is deeper than the other by about 1/8 of an inch. The shoes of the ones I'm taking out are wore down to 7/8 in an inch vs the new ones at 1 inch and there are 2 different numbers on the channels, both channel pictures are attached, along with the side of the frame, the top guide and bottom shoe.
Thumbnail of the uploaded file named channel guides.jpg
Thumbnail of the uploaded file named IMG_0304.jpg
Thumbnail of the uploaded file named IMG_0301.jpg

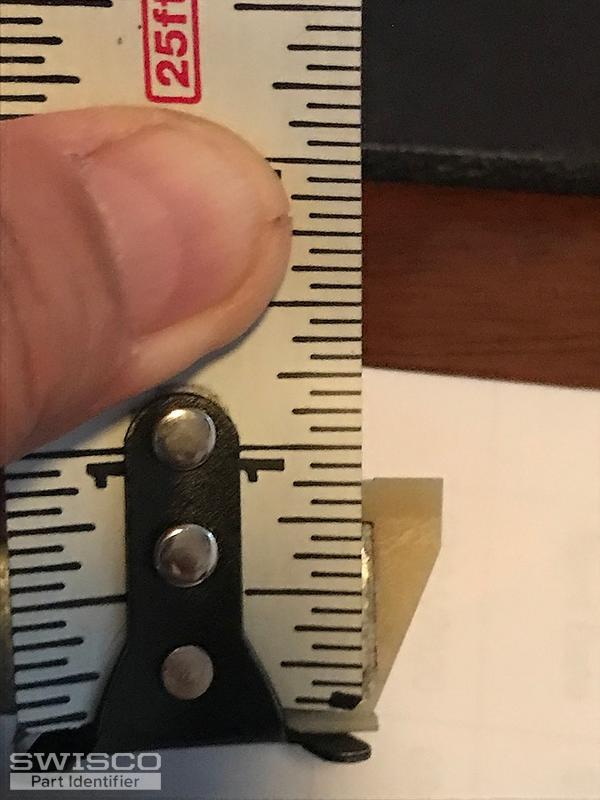

Thumbnail of the uploaded file named IMG_0305.jpg

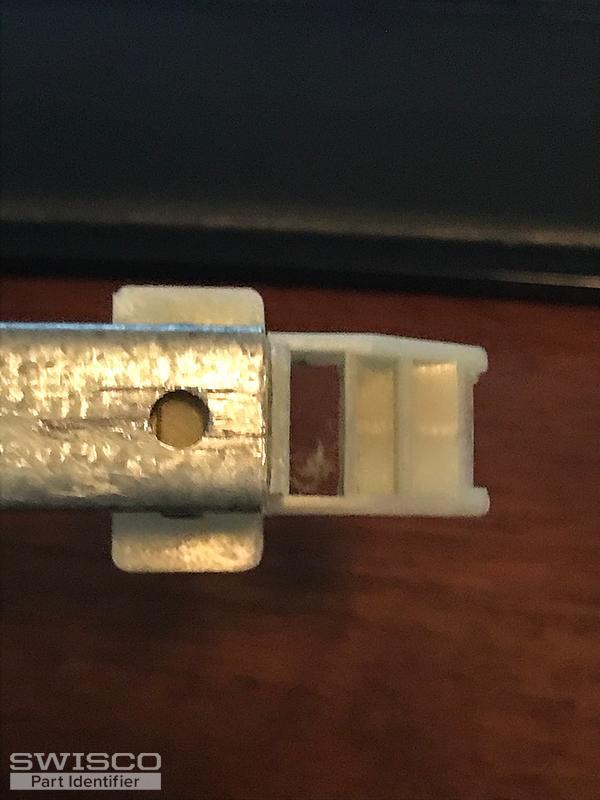

Thumbnail of the uploaded file named IMG_0307.jpg
Profile picture of Bob
Bob from SWISCO responded:
August 12, 2020

Firstly, if the window weighs 25 lbs, a stamp option of 2940 would be the proper stamp option, as that option covers a sash in the weight range of 23 through 28 lbs. It appears someone replaced just one of the balances in your window when it broke. The other, stamped 29-9, is from an older rating system we no longer use; but the 2940 option would work for it all the same.

Can you double-check the shoe size? If it's just normally 1", then the S380-30 would be what you need. If it's in fact originally 7/8", we'd need to custom make balances for you with the 15-029 shoe attached.
30" Series 380 Channel Balance
30" Series 380 Channel Balance
S380-30
$11.30
Channel Balance Top, Winged
Channel Balance Top, Winged
19-005
$0.74
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
