27" channel balance replacement

Home Owner from ARIZONA
Mar 12, 2012 12:34 pm

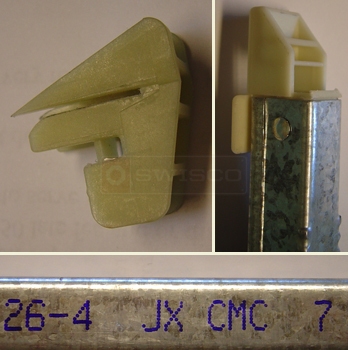

I need to replace a 1/2" channel balance, but cannot find one that exactly matches. This is for an Atrium non-tilt window. The upper guide has wings, but the lower guide does not. See attached photos. The metal channel is 27" long. The stamp on the balance is 26-4 JX CMC 7. Can you please help?

2 Replies

Paul from SWISCO
Mar 12, 2012 2:04 pm


Thanks for posting. With a winged top attachment (#19-005) and non-winged bottom attachment (#15-001), you will need a S395-27 with the 2640 option.
