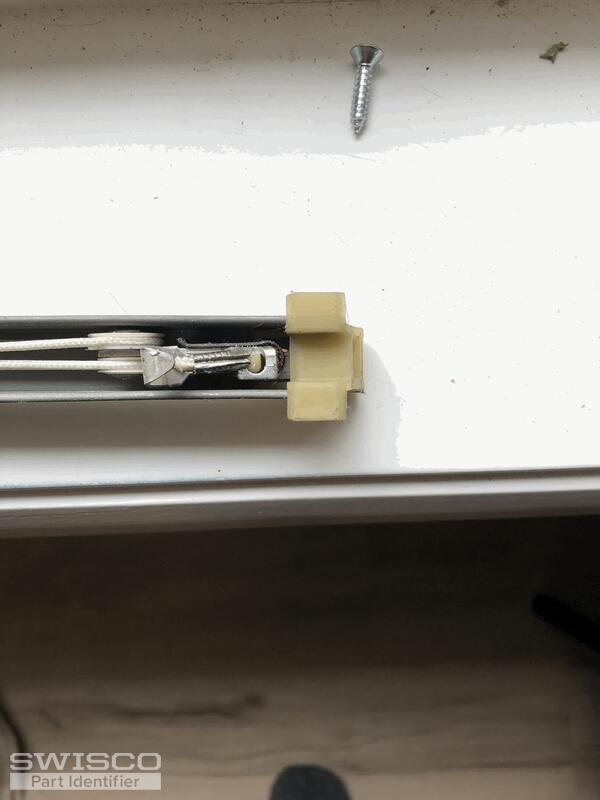

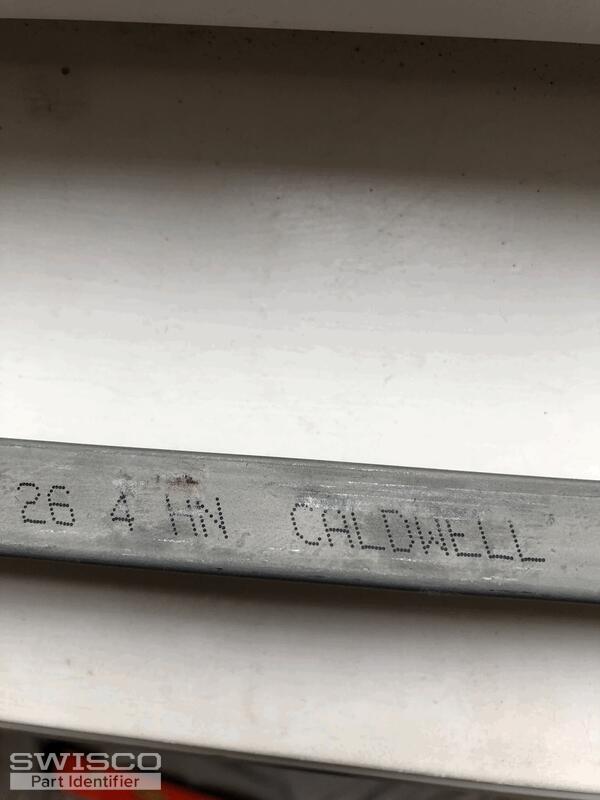

Hi. I need two new channel balances for a sash window. The markings on it says 26 4 HN Caldwell. The length of the metal channel is 27" long. Can you tell me the replacement part I will need?
Paula
channel balance
Quick Learner from Portland OR
Aug 15, 2021 3:54 pm
5 user uploaded images
2 Replies
Emily from SWISCO
Aug 19, 2021 2:14 pm
Hey, Paula.
With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.
If you have any further questions just let us know!
Comparison of the S380 and S385 balance shoes.
