channel balance and balance hardware

Quick Learner from Streamwood IL

Sep 23, 2015 1:09 pm

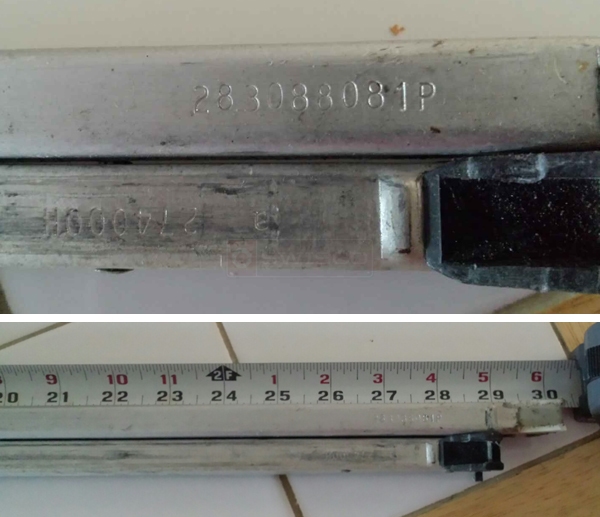

i need to replace the channel balance in several windows. Please see attached photos. All of my windows have the balance 283088081P which is 29 inches. Looks like someone replace 2 of them in two separate windows with the 274000H which is only 28 inches.I don't know the brand of windows but I watched your video on the 2740 and it looks just like the ones I have.I also need the clip with the screw that keeps the channel in place when the window is down. I think it as called a sash guide. Please help me..

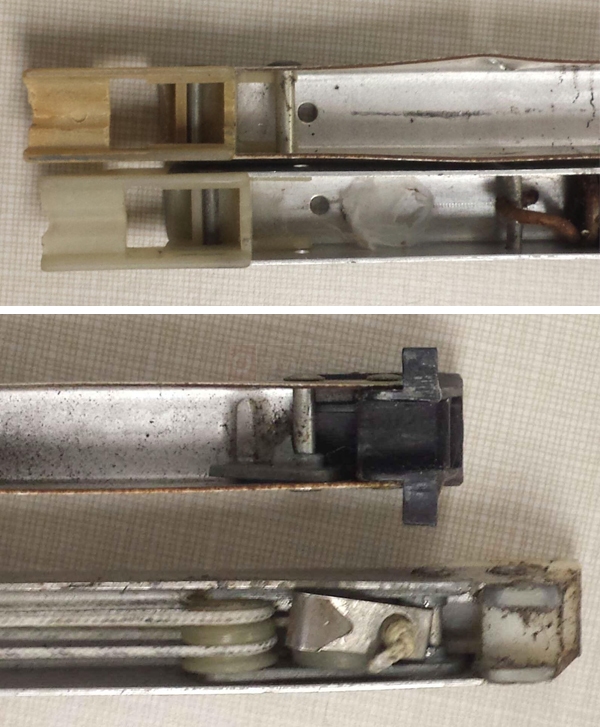

User submitted photos of a window balance.

User submitted photos of a top sash guide.

3 Replies

+ Add a Comment

Paul from SWISCO

Sep 28, 2015 1:35 pm

EXPERT

Thanks for posting. Concerning the balances, the one with the black shoe resembles our S350-29 with a 2830 option, while the other looks like our S351-28 with a 2740 option. For the top sash guide, look at our 18-069.

Quick Learner from Streamwood IL

Oct 7, 2015 8:46 am

Thank you for all your help. I received the channel balances and sash guides you recommended and they fit GREAT!!!You guys are AWSOME!! I have a new challenge for you.I am attaching photos of the bottom and top of my patio screen door.The rollers are broken and the screws are strip.Plaese take a look at them and let me know if you have anything to replace the parts or the whole bottom rails. unfortunately there is no part numbers or brand names.Thanks again Rose

User submitted photos of patio door hardware.

Paul from SWISCO

Oct 9, 2015 11:28 am

EXPERT

Awesome, I'm glad the balance worked out. As for this roller, how about our 84-062? This looks pretty close, but just make sure the tail is the same. Not so sure about that screw though. I would check a local hardware store, they may have something for it.
