channel balance

Handy Person from Hurricane Utah

May 6, 2017 4:22 pm

in search of a left and right 1/2" viking window channel balance.
The number is 26 DS 36.
The metal portion is 26" long.

Thanks for the help!

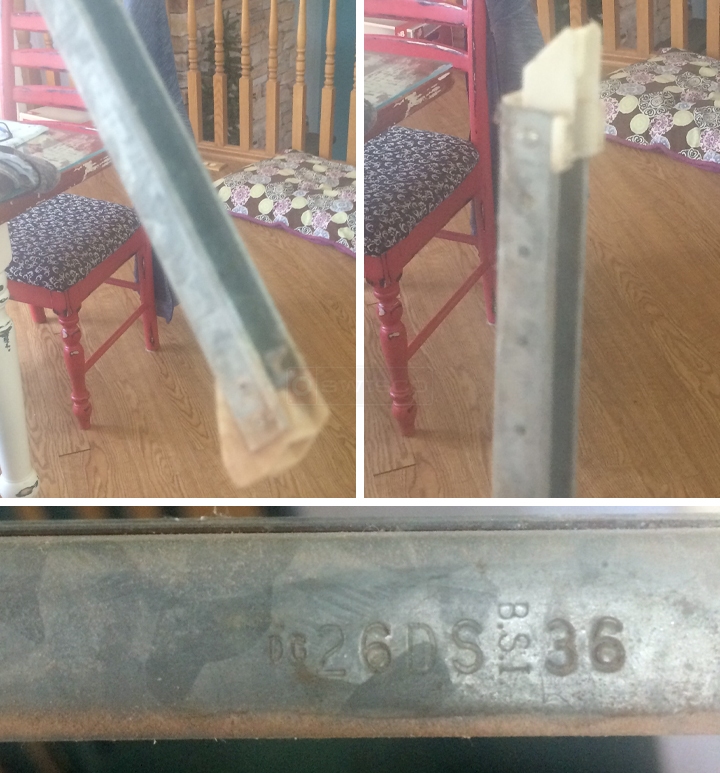

User submitted photos of a window balance.

6 Replies

Tom from SWISCO

May 10, 2017 10:35 am

Thanks for posting. Can you confirm the length of the metal channel? Based on your stamp, it should be 27" long, not 26". Can you also confirm the weight of your sash?

Quick Learner from Utah

May 12, 2017 7:01 pm

The metal portion is 27" and 28" when I include the plastic ends.

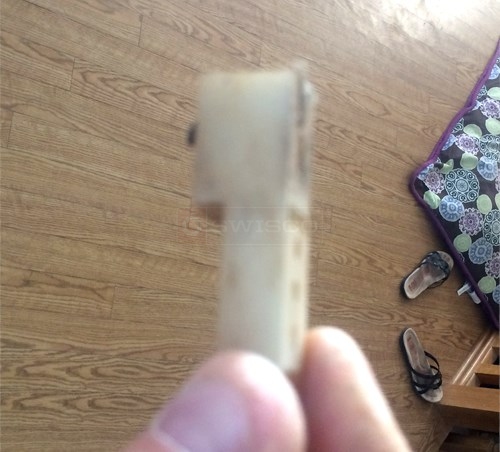

I attached 3 photos. 2 are measurements and the 3rd is a plastic part that fell out when I removed the window.

Thanks

Tom from SWISCO

May 16, 2017 11:52 am

That piece is known as the top sash guide. Our 18-008 might be a match, but see how well our pictures and measurements compare.

Were you also able to confirm the exact weight of the sash?

Quick Learner

May 16, 2017 12:49 pm

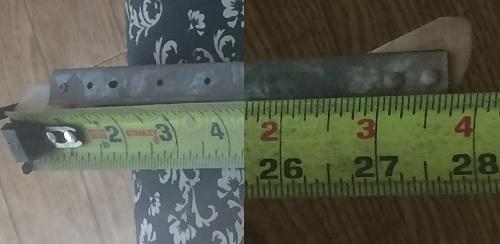

I attached a photo. It show a measurement from plastic end to plastic end. Hope this helps and thank you for your help!

Tom from SWISCO

May 19, 2017 1:40 pm

I think this could be an S390-27 channel balance, I'm just not sure about what stamp option you'd need. You will need to weigh your sash to confirm.
