channel balance for double hung non-tilt window

Handy Person from Ormond Beach, FL

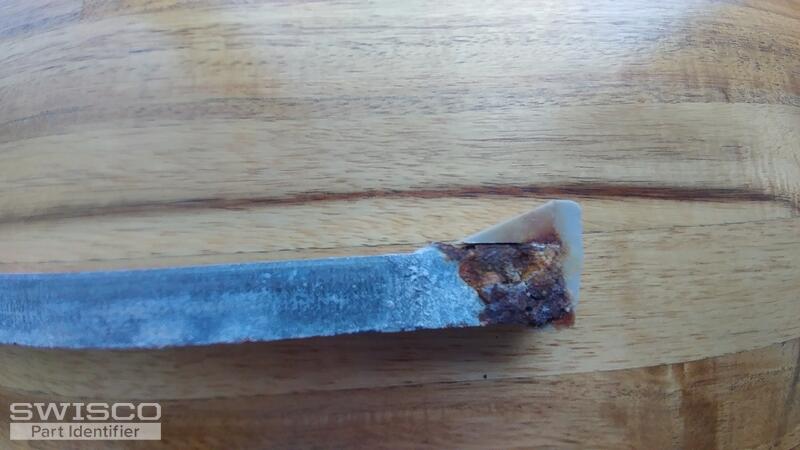

balance is 23" long and I need to identify if it is a S351 or S390. Help?
4 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert
Hi there, thanks for posting. The Series 351 and Series 390 are almost identical besides for their bottom shoe attachments. The Series 351 uses the 15-002 that has a depth of 1" while the Series 390 uses the 15-001 with a depth of 1-1/8". You'll need to measure to determine which one will work for you. Hope this helps!
Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
