channel balance for non-tilt window

Home Owner from Boise, ID

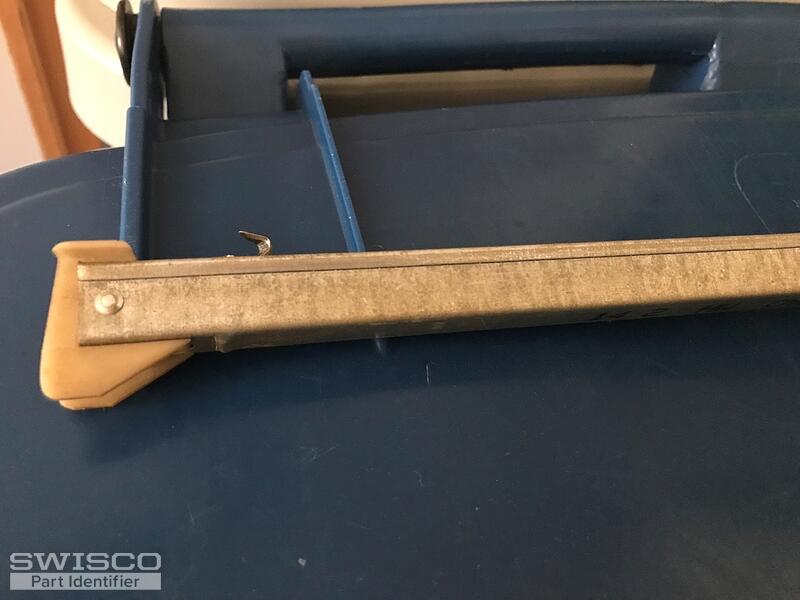

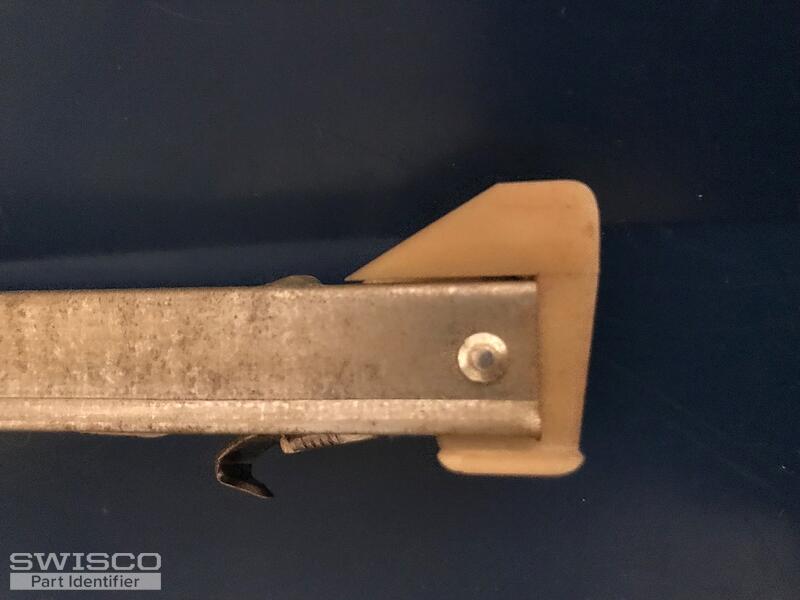

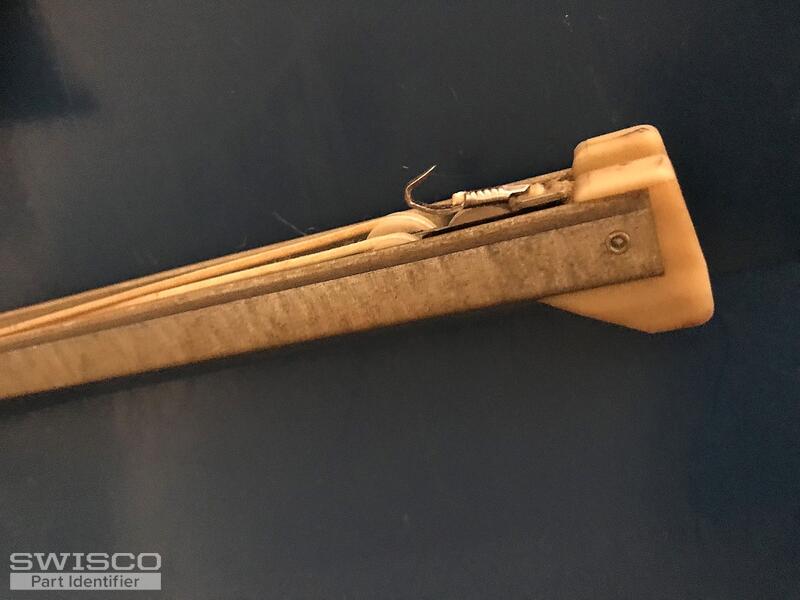

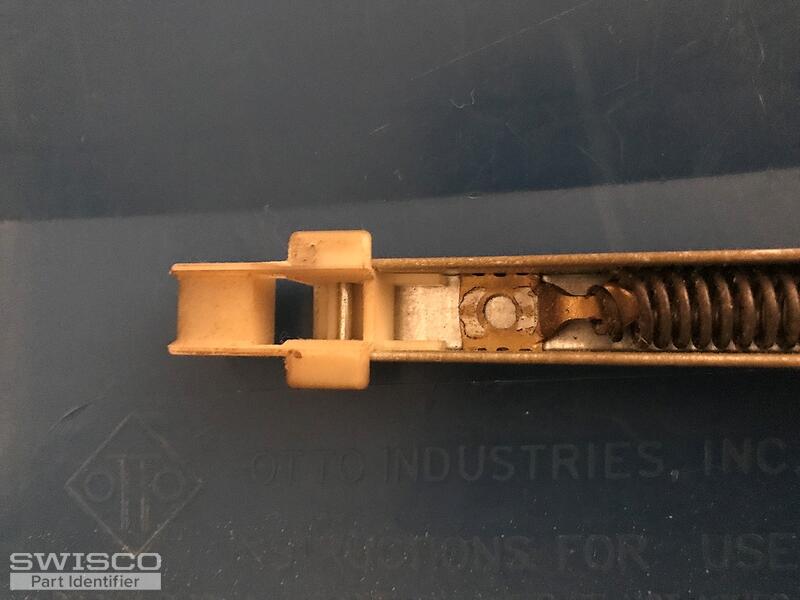

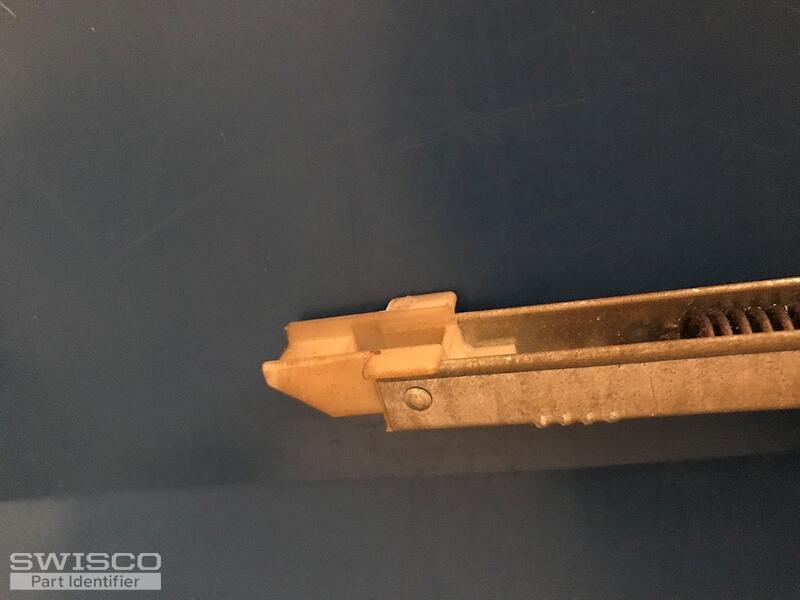

Milgard window, 15" x 1/2", stamped: 14 2 HW CMC 7,

Thanks for your help!
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

This appears to be either an S380-15 or S385-15. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. For a new stamp option, choose 1420.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
