Paul from SWISCO responded:
January 5, 2018
Hello! From your dimensions, we calculate your sash weight to be around 22 lbs, so the S385-32 side load balance with a spring weight of (3130) would work. We also believe you will only need one balance per side for the window sash. As for the black nylon fitting, we need you to remove it and show it to us with some dimensions.
|
Paul from SWISCO responded:
January 29, 2018
If your sashes have always been hard to open, even when new, then it may not be a bad idea. It's possible the original installers simple selected the wrong strength spring like you suggested earlier. However you want to be very careful moving up to the next strength option. A spring can be too strong, which would make the window hard to close. Springs also lose their strength the older they get, so keep that in mind; your windows may have been easy to open when new, but harder to open as they grew older. I would recommend finding a way to get your exact sash weight so you know for sure. It's not worth trying to guess when it comes to balances since precision is so important.

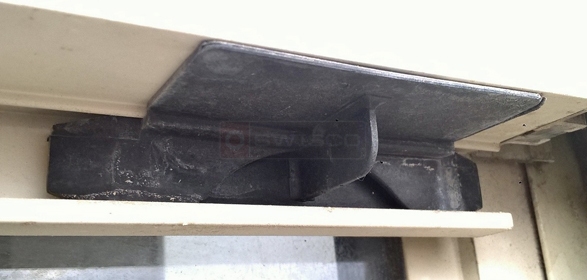

As for this fitting, I've actually never seen this before. I don't think we have anything like this. I would be happy to research something, but I would need to know its exact dimensions. Also, is there more to it? I can't tell if more of it is tucked up behind the sash and hidden from view. |
