channel balance inquiry

Quick Learner
Sep 11, 2023 3:37 pm

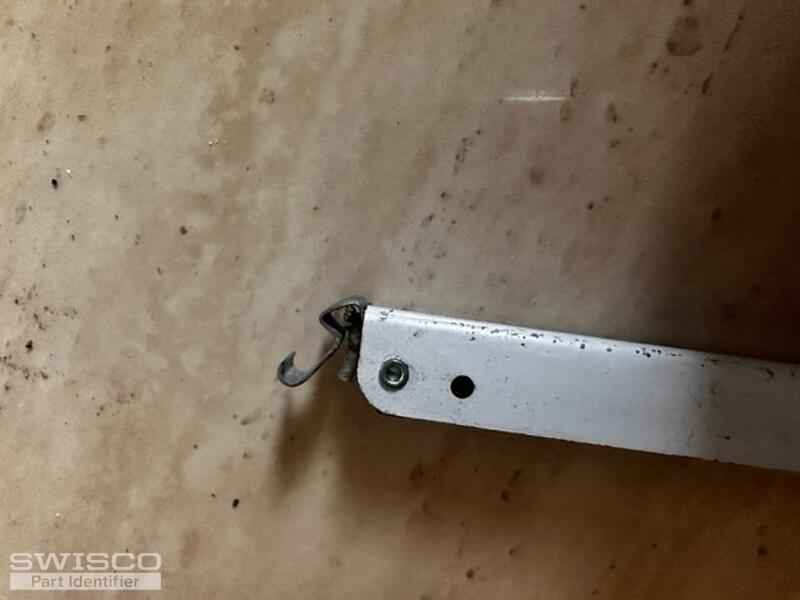

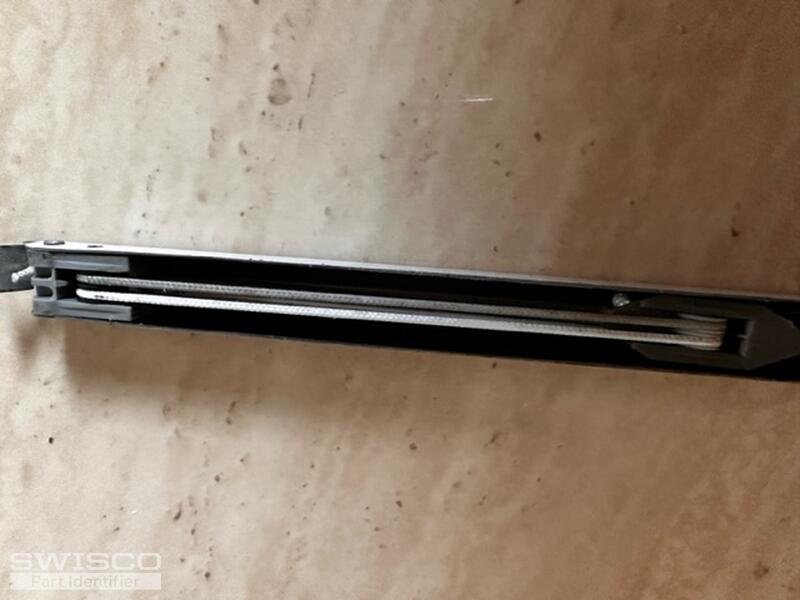

The Window company name was Thermal Industries and you can look at all the pics, hope we can find what we need
image12 image9 image8 image7 image6
5 user uploaded images
15 Replies
Casey
Casey from SWISCO
Sep 12, 2023 1:11 pm
SWISCO
EXPERT

Hello,

The base of your balance appears to be the Series 770 but the cord fitting looks like a match to the 15-170. Your balance also has a rivet at the top that is normally used to accommodate an S-clip like the 19-029 or 19-030. We can supply these balances with the necessary configuration but it will need to be a custom order.

To get started, we'll need to know the stamp code on your metal channel to compare to the strength options of the S770-14. We'll also need to know the number of balances that you need, with the minimum being two. Thank you.

Dimensions for 15-170
Dimensions for 15-170

Home Owner from Salamanca Ny
Sep 12, 2023 2:56 pm
Hello Casey I believe the balances are ok it's mainly the pivot shoe is what needs to be replaced if we can match those up it would be great but if not then the complete kit of both the balance and pivot shoe would suffice.
Thank you Sincerely.
Merrill
Casey
Casey from SWISCO
Sep 12, 2023 3:37 pm
SWISCO
EXPERT

We can't be sure without seeing the original pivot shoe but I can tell you that the 15-170 clip is often used with the 15-169. Take a look and compare the dimensions below to yours. If you notice any discrepancies, feel free to get back to us with photos of your original pivot shoe.

Alternate image for 15-169
Alternate image for 15-169

Home Owner from Salamanca Ny
Sep 12, 2023 4:55 pm

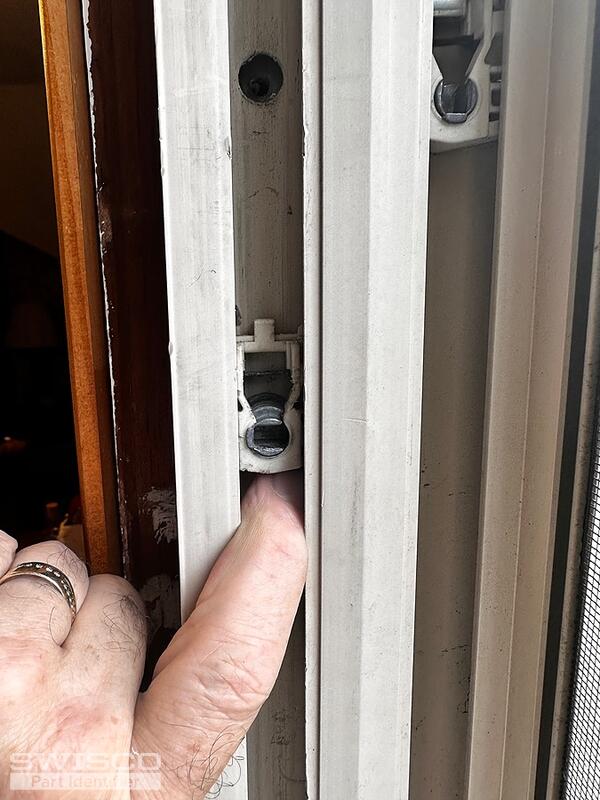

I sent the pic in the original for some reason I see you don't have it so I'll resend it here for you
IMG_1095
1 user uploaded images
Casey
Casey from SWISCO
Sep 13, 2023 9:15 am
SWISCO
EXPERT

Thanks for getting back to us. What I can make out of your pivot shoe does resemble the 15-169 but you would need to remove it from the window jamb to confirm that the details and dimensions match up to the image included in our last response.

Home Owner from Salamanca Ny
Sep 13, 2023 10:52 am

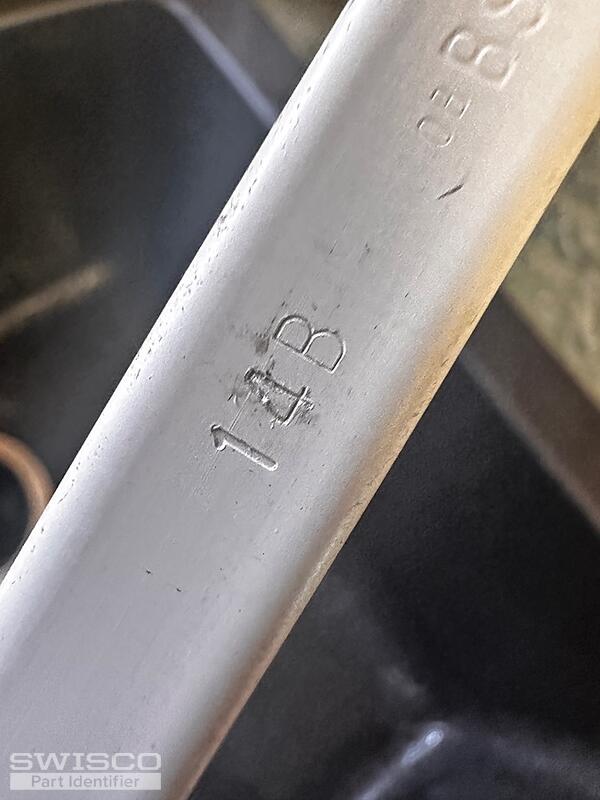

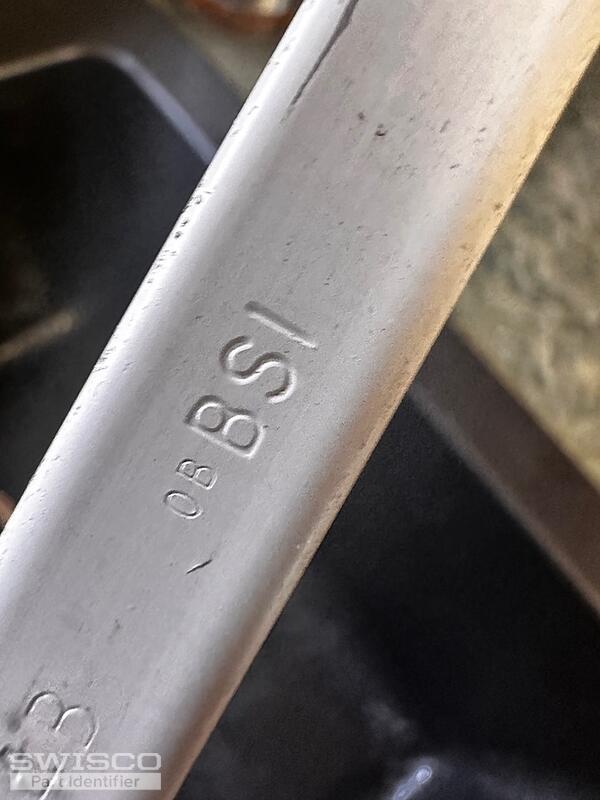

Hello again and yes I can get the pivot shoe out I will watch the video provided here in your feed and I also took some pics of the stamp code as well, thank you again Sincerely Merrill
IMG_1131 IMG_1130
2 user uploaded images
Casey
Casey from SWISCO
Sep 13, 2023 11:04 am
SWISCO
EXPERT

We do offer the 14B strength option for the S770-14, whcih will support a sash between 7-10 lbs. If you decide that you would like to go ahead with the custom balances as well, just let us know the number of replacements that you need.

Home Owner from Salamanca Ny
Sep 13, 2023 11:36 am
Ok will do if I can get the pivot shoe out with out using a jamb spreader I will prob start there as long as we have a match
Casey
Casey from SWISCO
Sep 13, 2023 11:53 am
SWISCO
EXPERT

That sounds like a plan. See our video below to help you remove the pivot shoe from the window jamb. The balance is a different type than you have but the process of removing the shoe would be the same.

Home Owner from Salamanca Ny
Sep 13, 2023 1:01 pm

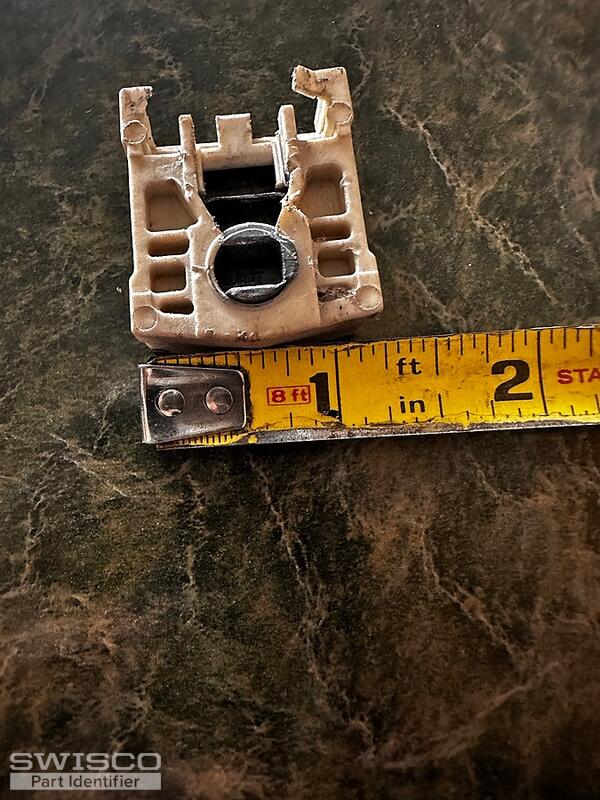

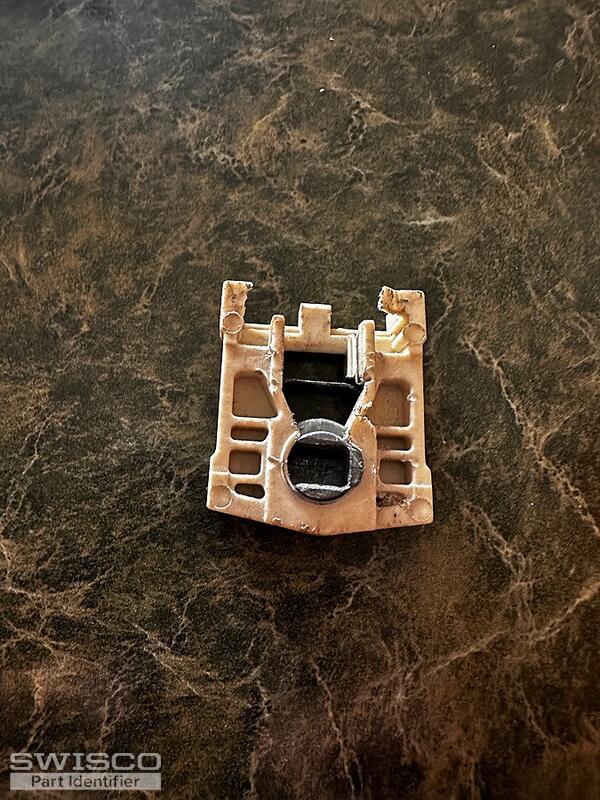

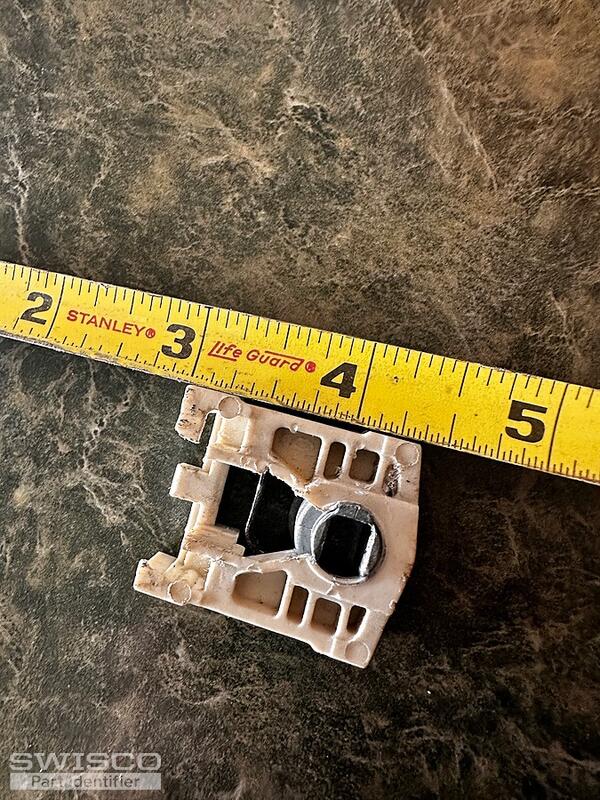

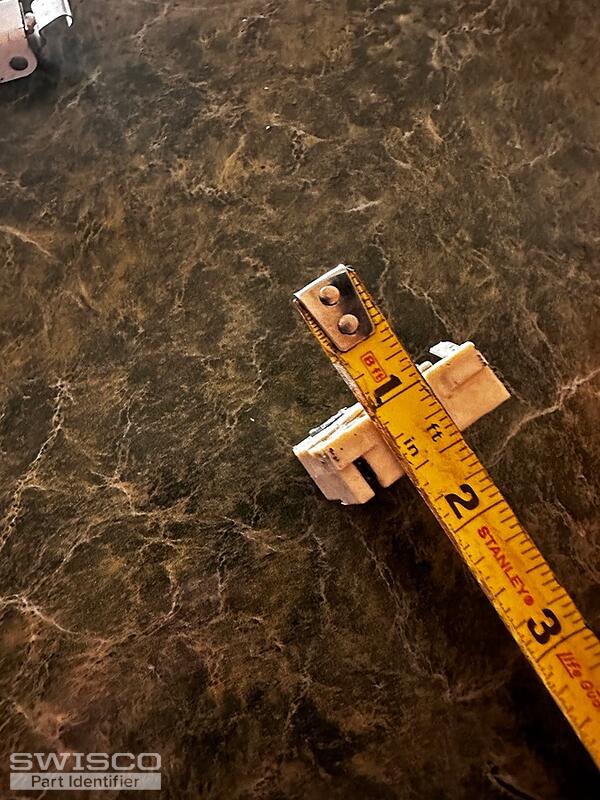

Hello again I would say your part swap for the pivot shoe looks to be fairly spot on here is some photos I took
IMG_1132 IMG_1133 IMG_1135 IMG_1136
4 user uploaded images
Casey
Casey from SWISCO
Sep 13, 2023 1:41 pm
SWISCO
EXPERT

It's tough for us to make out accurate dimensions from photos but I agree that your part looks like a match to the 15-169 as long as the width and thickness match the dimensions below.

Alternate image for 15-169
Alternate image for 15-169

Home Owner from Salamanca Ny
Sep 13, 2023 2:01 pm
So how can I order this part just go to the website Thank you again Casey for all your help Sincerely Merrill
Casey
Casey from SWISCO
Sep 13, 2023 2:31 pm
SWISCO
EXPERT

Sure, you are welcome to purchase the 15-169 directly on our website or you can give our customer service team a call at (888) 991-1929 to order them over the phone. Just let us know if you have any other questions.

Home Owner from Salamanca Ny
Sep 13, 2023 3:23 pm
I sure will thank you so much for all your help you've been a great asset! Sincerely Merrill
Casey
Casey from SWISCO
Sep 13, 2023 3:43 pm
SWISCO
EXPERT

We're happy to help and appreciate your business!
