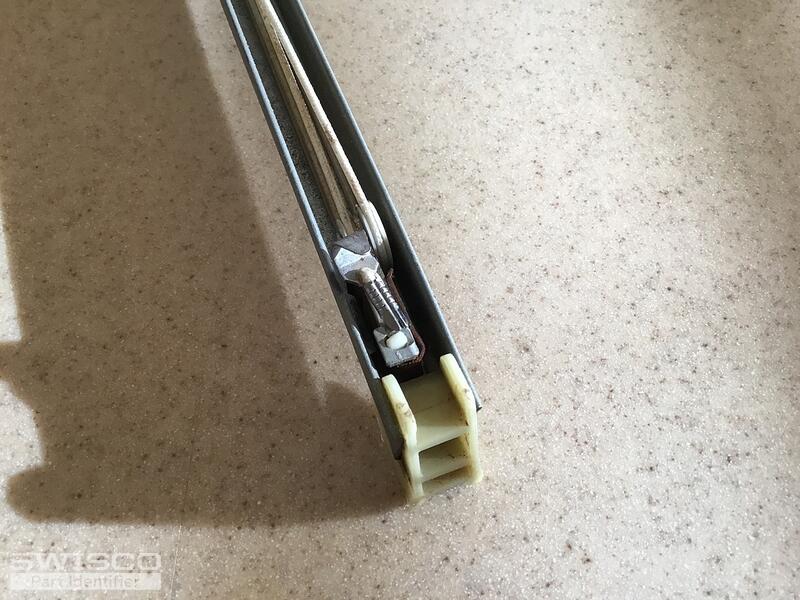

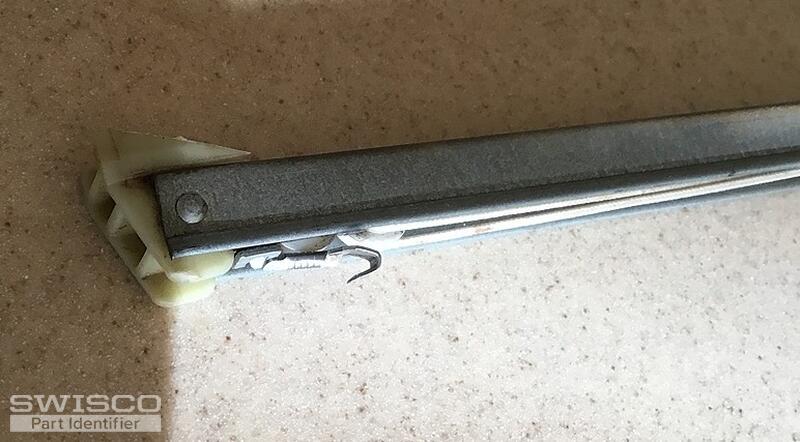

I have attached some pictures for the balances in our Atrium windows - non tilting. They look like a 395 but I wanted to confirm with you, please.
The shoe's depth is 1" and the height of the long angled side is 1" also.
The top's longest edge -on the inside aspect closest to the window frame - is 1 1/4"
The interior metal length is 29".
The marking on similar window balances is - 28 3 HX CMC7
The weight of the lower window the balance is supporting is 20 lbs.
Thank you for any direction you can provide.
Sincerely,
Karen
Channel Balance Inquiry: S395?
Quick Learner from AZ
Jan 17, 2019 5:53 pm
5 user uploaded images
2 Replies
Bob from SWISCO
Jan 18, 2019 10:59 am
Hi Karen. Thanks for providing such thorough information! Yes, this looks like the S395-29 with a stamp option of 2830--which corresponds with your window sash's weight of 20 lbs. Let us know if you have any other questions, and thank you for posting!
