Dear Sir/Mam. We need to replace the channel balance in our double hung non-tilt window. Channel width is 1/2" and channel length is 32". We need your help to identify the correct replacement part.

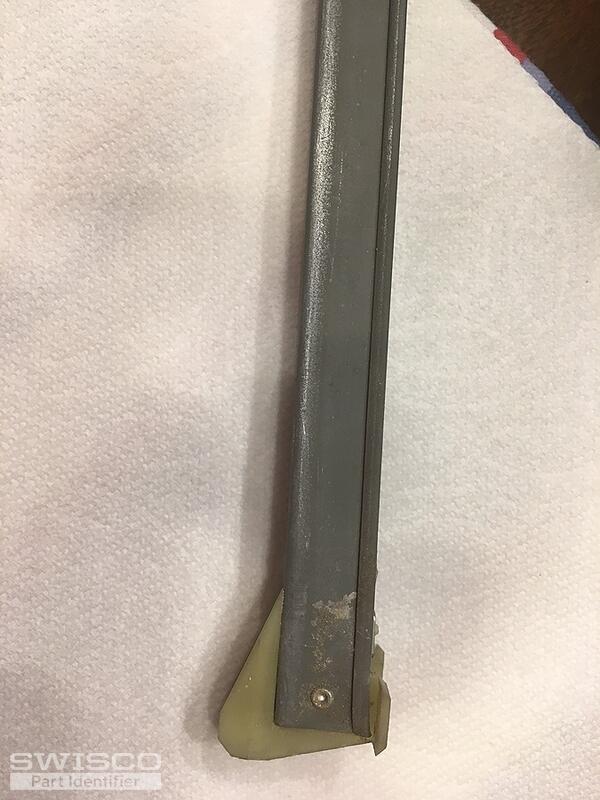

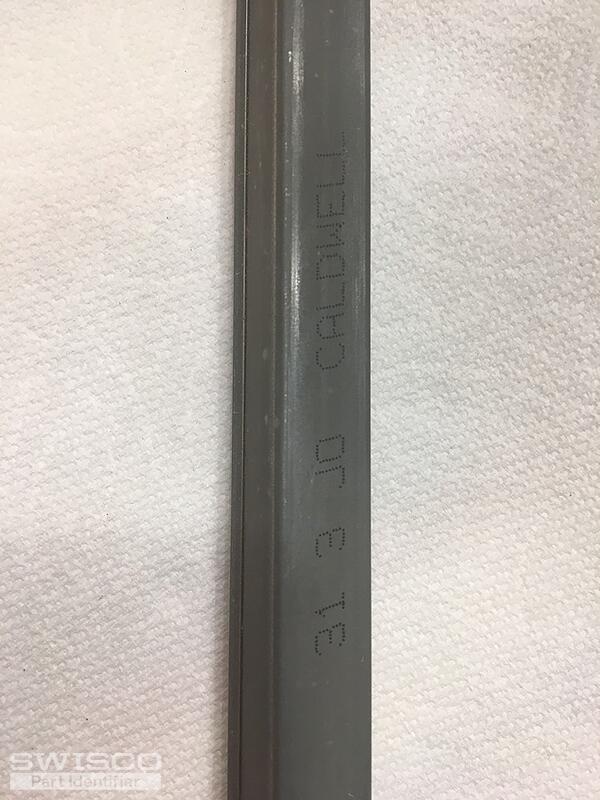

Please see the attached phoots
channel balance- replacement
Quick Learner from Draper, Utah
Jun 7, 2021 11:07 pm
5 user uploaded images
2 Replies
Emily from SWISCO
Jun 10, 2021 3:16 pm
Hello!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 3130.
If you have any further questions just let us know.
Comparison of the S378, S380 and S385 balance shoes.
