channel balance replacement : SWISCO.com

Home Owner from The Villages, Florida

Aug 11, 2024 12:41 pm

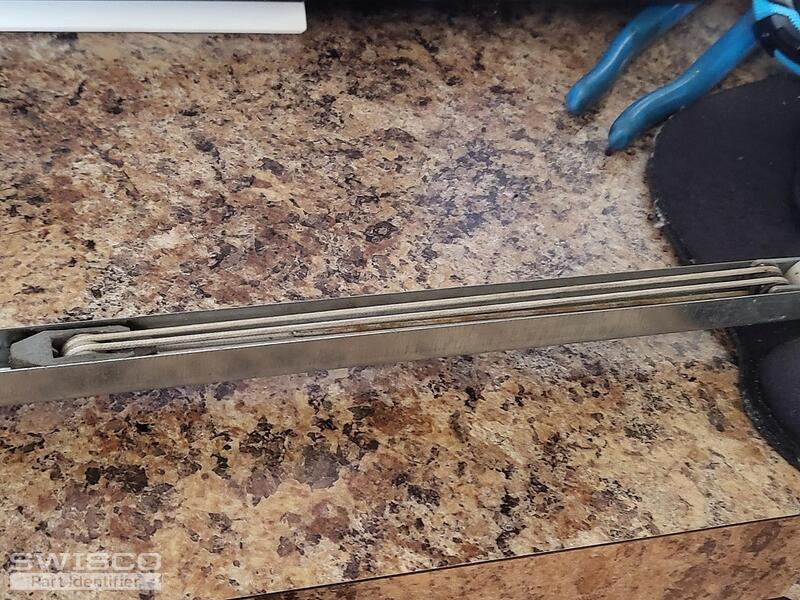

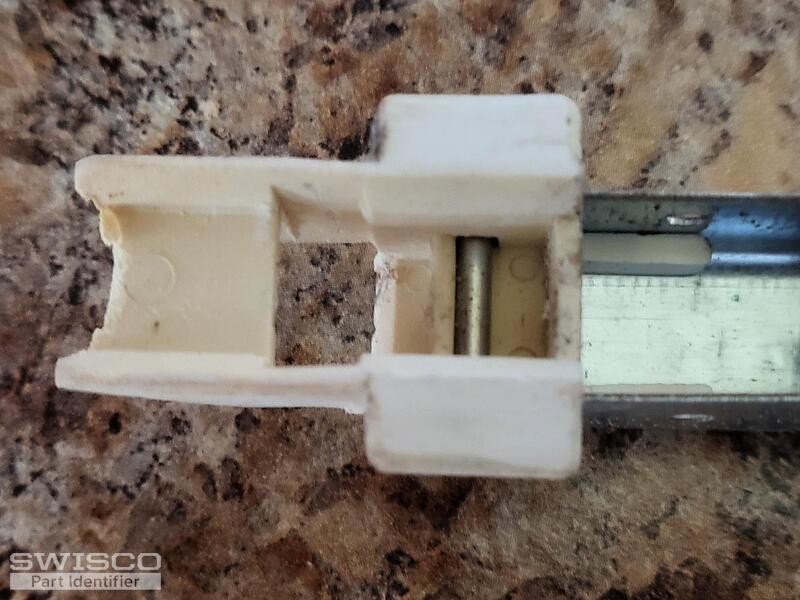

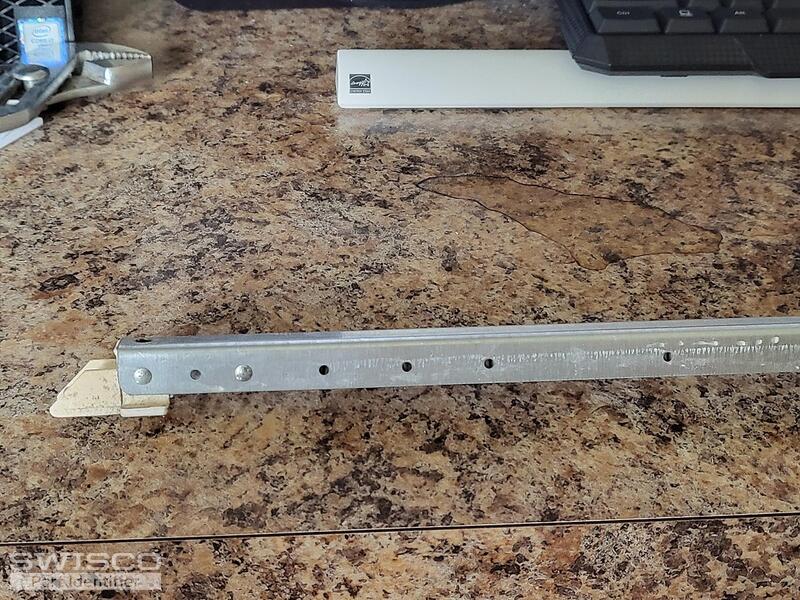

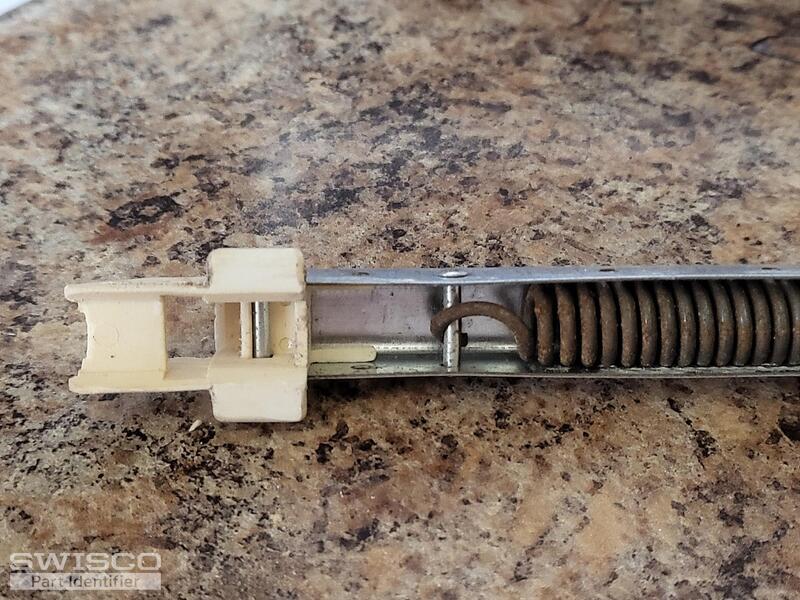

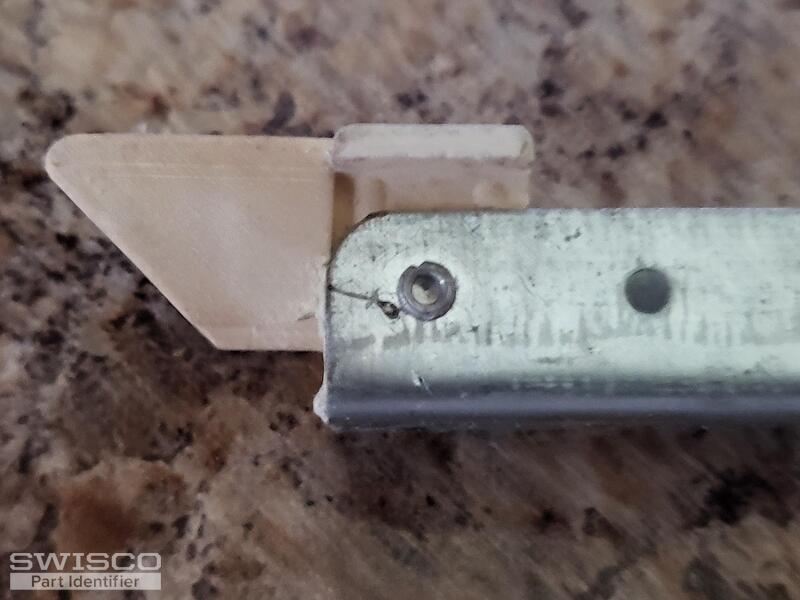

please advise what replacement part I need. I have attached as many photos as was allowed by your site. In case it is difficult to read, the photo with the stamp on it says 29 4 BSI (maybe the I is a 1, hard to tell). The length of the metal portion is 30".

5 user uploaded images

7 Replies

Home Owner from The Villages, Florida

Aug 11, 2024 12:44 pm

Here a few additional photos that I could not put into the original post.

3 user uploaded images

Bob from SWISCO

Aug 11, 2024 3:34 pm

Thanks for posting. See our S380-30 or S385-30 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old hardware to see what matches best. For a new stamp option choose 2940.
