channel balance replacement part

Question

Can you help ID this?
While searching for info about Block and Tackle window balances, I found that “to determine the size of the balance, measure the height of the visible glass only.” And also that “the length of the balance will ALWAYS be 1 Digit HIGHER than the stamp.”

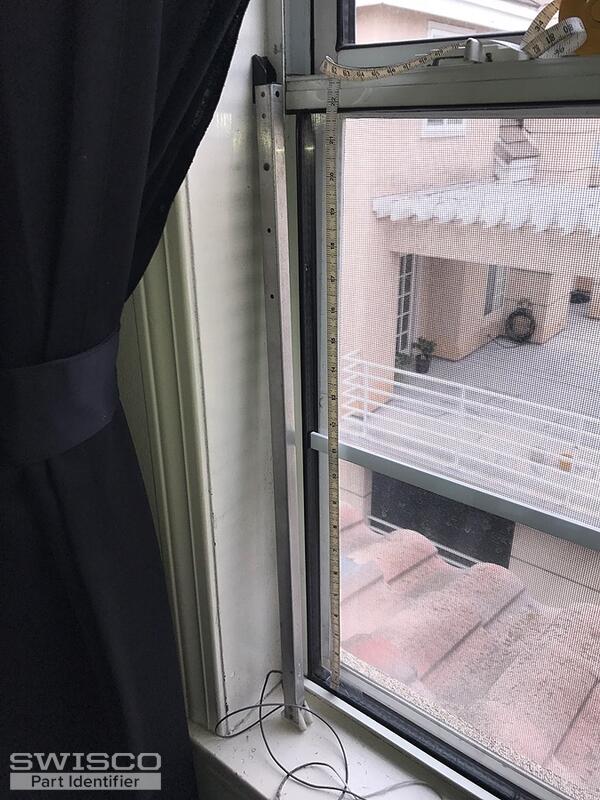

The stamp on the back is “A2200” The visible glass measures 22” so is this balance size too long for my window?
Thanks

Jasmine · Accepted Answer

Thanks for writing in! The best way to determine the size of your balance would be to measure the length of the metal channel. I suspect is 23", so that should be the correct balance for you window.

That being said, you'll need the S350-23 channel balance. It is assembled with a 19-002 top and 15-004 1-3/32" shoe.

Unfortunately, I'm not able to cross-reference your stamp with those on our balances, so you'll need to weigh the sash to select the one needed for the replacements. There is a list of stamps and their weight ranges below the product description of the balance.

Close up view of the S350 balance shoe.
