channel balance spring part?

Home Owner from California
Hi there: I have about old white aluminum windows and this balance completely fell out of my window. I think I can replace it. I actually need 3 if possible. and one smaller that is still in the window.

that you for your time!!!


D
5 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello!

Take a look at the Series 351 and Series 390 channel balances. The best match will depend on the depth of the bottom shoe. To determine the length, you'll want to measure only the metal channel. There should be a stamp printed on the balance too.

Note that we always recommend replacing your balances in pairs. Pairing an old balance with a new one would cause the new balance to wear out a lock more quicker. Just something to keep in mind!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Home Owner from California

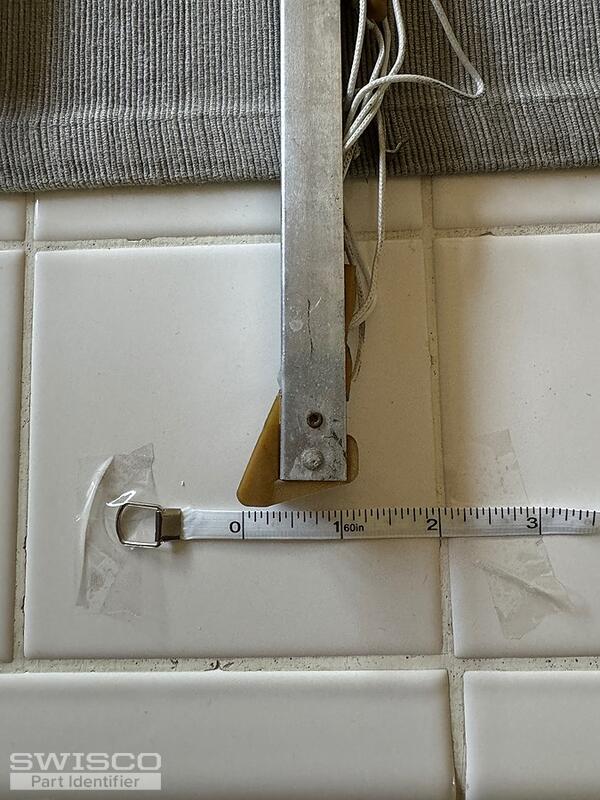

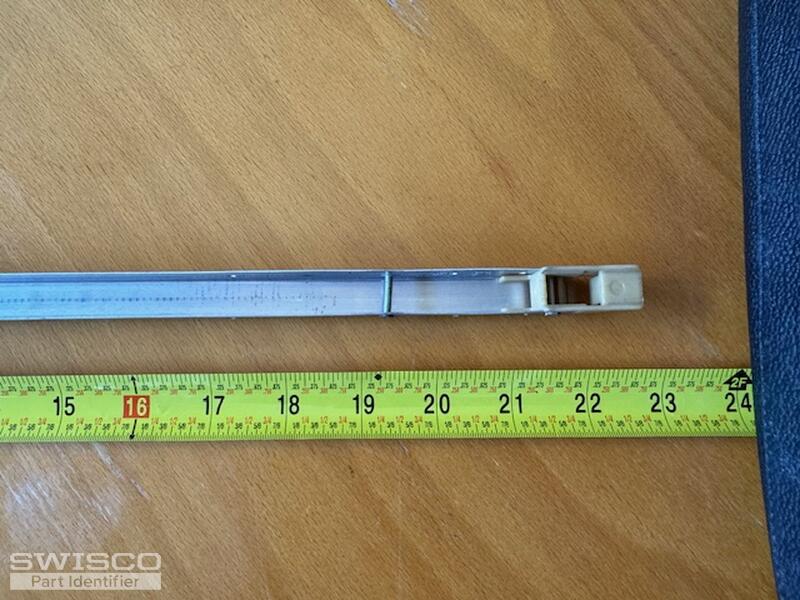

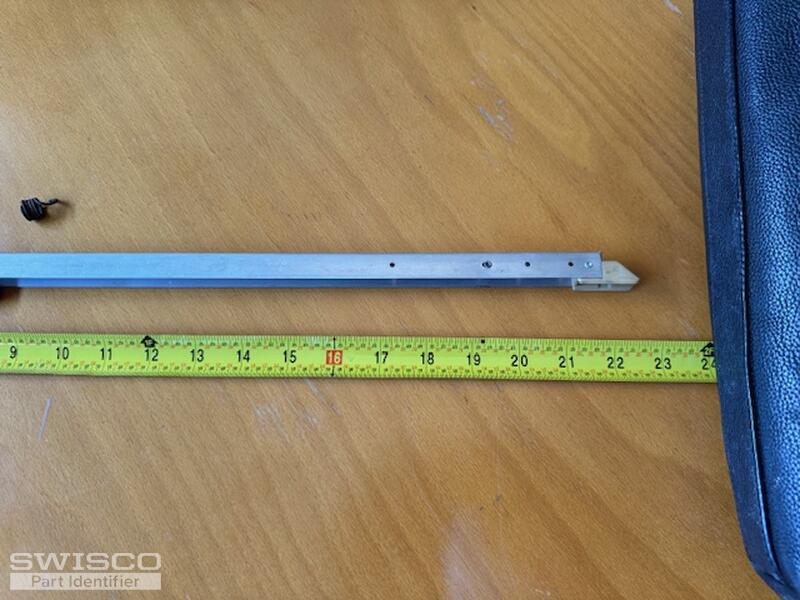

Here is the measurement (photo) as requested.

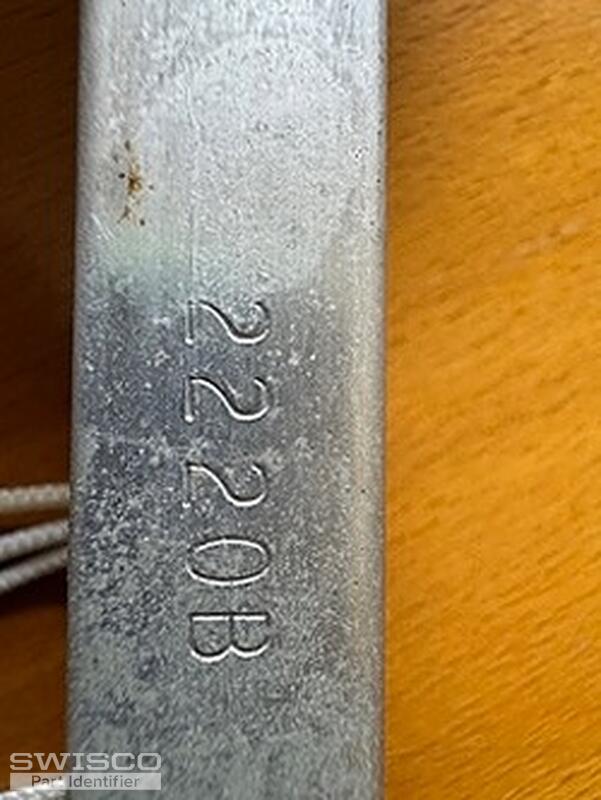

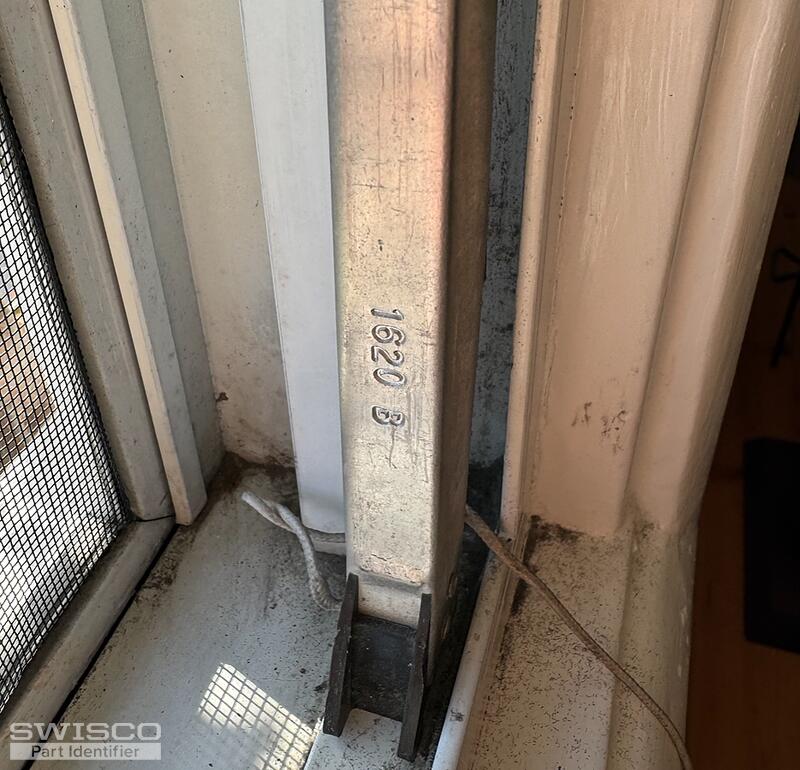

Also here is the codes on the balances I would need...
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you! For the 23" 2220 stamped balance, you'll want to choose the 2220 stamp option. For the 17" 1620 stamped balance, you'll want to choose the 1620 stamp option.

If you have any questions just let us know!

Home Owner from California
If they for some reason they don't work or just are not
the correct size on these old windows, what is your refund policy?


thank you !
Emily
Emily from SWISCO
SWISCO
Expert

Our return policy can be found here
