channel balance to replace

Quick Learner from California

Jul 7, 2019 7:29 pm

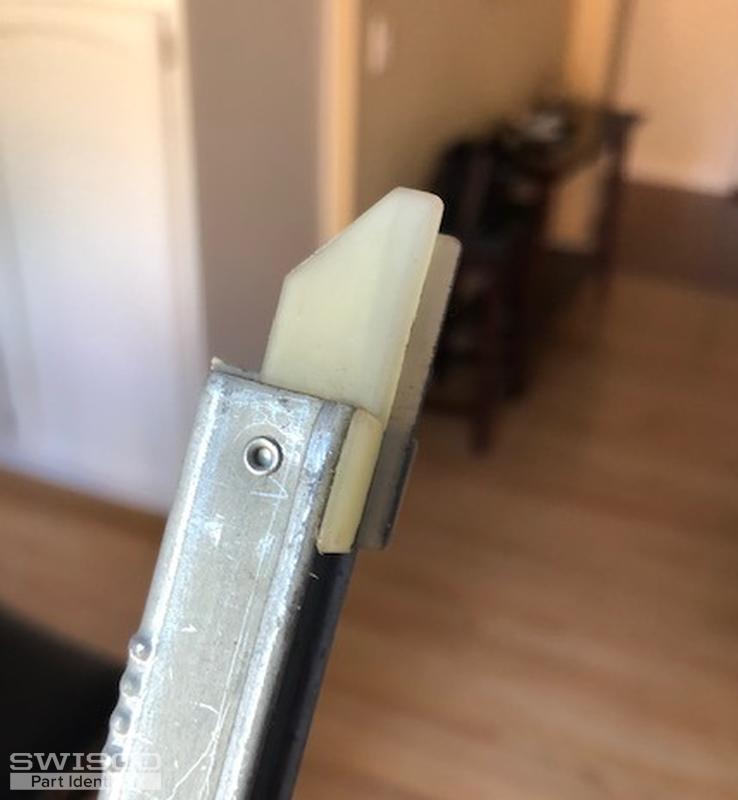

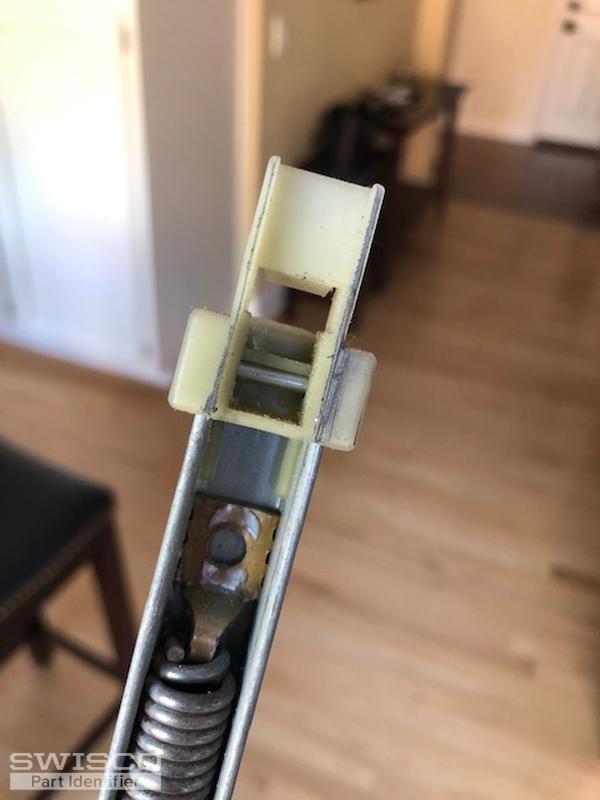

I would like to replace the entire unit. it is 5/8 inches wide and 27 inches long.
I would rather not have to assemble to replacement, if there is a complet unit available.
Thanks

5 user uploaded images

6 Replies

Bob from SWISCO

Jul 10, 2019 12:28 pm

Thanks for writing in. All our standard balances come fully assembled with nylon fittings. This looks like either an S380-27 or S385-27. The only difference between these two balances is the 'depth' of the bottom nylon shoe. Compare both with your old hardware to see what matches best. You will need a stamp option of 2650.

Quick Learner from California

Jul 10, 2019 1:55 pm

how exactly do I measure the depth Bob. Thanks so much for the help and guidance.
David

Bob from SWISCO

Jul 10, 2019 1:56 pm

Fair question, David. If you stand the balance up straight as it stands in the window track, the 'depth' is the distance between the heel and toe of the bottom nylon shoe. For the Series 380, this depth is 1". For the Series 385, this depth is 1-3/32". See the diagram below. Hope this helps.

Comparison of the S378, S380 and S385 balance shoes.

Bob from SWISCO

Jul 10, 2019 2:37 pm

My pleasure David! Very glad I could help. Let us know if you have any other questions. And thanks for reaching out to us, we really appreciate it.

Quick Learner from California

Jul 10, 2019 3:05 pm

crystal clear! And thanks for sharing the expertise.
