channel balances ID help

Start a new Discussion

Home Owner from Greenville Texas

Oct 13, 2011 4:08 pm

No markings or numbers on part. Overall length 29 inches.
Spring length 13 3/4 inches.

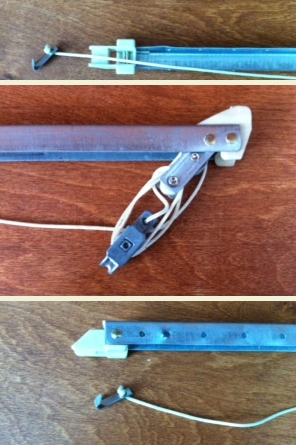

User submitted photo of channel balance.

13 Replies

Tom from SWISCO

Oct 14, 2011 11:49 am

Thank you for posting your images.

Can you give us the length of the metal portion of the channel balance only? Also, are there any stamps on your balance?

Home Owner from Greenville Texas

Oct 14, 2011 5:25 pm

The metal channel length is 28 inches.
On closer examination I found some indentations.
DB
L02
2730

Tom from SWISCO

Oct 17, 2011 12:41 pm

Can you please tell me if the attachment shown in the middle image has wings on them? To get an idea of what I'm referring to, take a look at the 15-004 and 15-005 balance attachments and see if you can determine which one you have.

Home Owner from Greenville Texas

Oct 17, 2011 4:01 pm

Mike
I really appreciate your help.
I drilled out the rivets to see the plastic parts better. One is # 19-005.
I can not tell the difference in 15-001 & 15-002 on the web page. Mine looks very much like either of them. This fitting has a # 4 molded into the part.

Tom from SWISCO

Oct 19, 2011 9:38 am

The 15-001 Channel Balance Shoe is a little bigger, with a length of 1 1/8", while the 15-002 has a length of only 1". Do either of these match the measurements of your shoe?

Handy Person from Greenville Texas

Oct 19, 2011 12:38 pm

Mike
Measuring the shoe parallel with the narrow slot, measurement is 1 1/8.
Measuring perpendicular to the narrow slot, measurement is 1 1/8.
Measuring from the pointed tips across the slot at a slight angle to the largest base of the shoe is exactly 1 inch.
Hope this helps.
Warren

Handy Person from Greenville Texas

Oct 19, 2011 12:49 pm

Mike
My error on the recent post. those first two dimensions were only 1 1/16 not 1 1/8. Sorry for the error.
Warren

Tom from SWISCO

Oct 19, 2011 2:18 pm

Sorry Warren, I'm not sure where you're measuring from. Can you submit a picture of your measurement?

Can you tell which one matches our original? Either the 15-001 or 15-002?

Handy Person from Greenville Texas

Oct 19, 2011 7:13 pm

Mike
If we go by the coloring in your photos we have 15-002 as our has a beige tint rather than white.

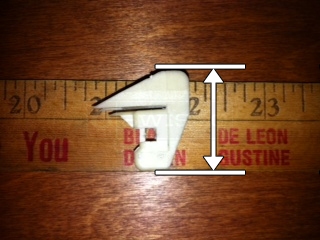

The enclosed photos show direction only as the actual dimensions on a metal scale are 1 1/16 for the first photo and 1 inch for the second.
Warren

Tom from SWISCO

Oct 20, 2011 8:45 am

Warren, could you give me this measurement?

Thanks for your cooperation.

Handy Person from Greenville Texas

Oct 20, 2011 9:13 am

Mike
That measurement is 1 1/16.
Warren

Tom from SWISCO

Oct 20, 2011 10:46 am

Alright Warren, we're good to go.

You need to order our S395-28 window balance with the 2730 option.

Please let me know if you have any questions.
