HI,

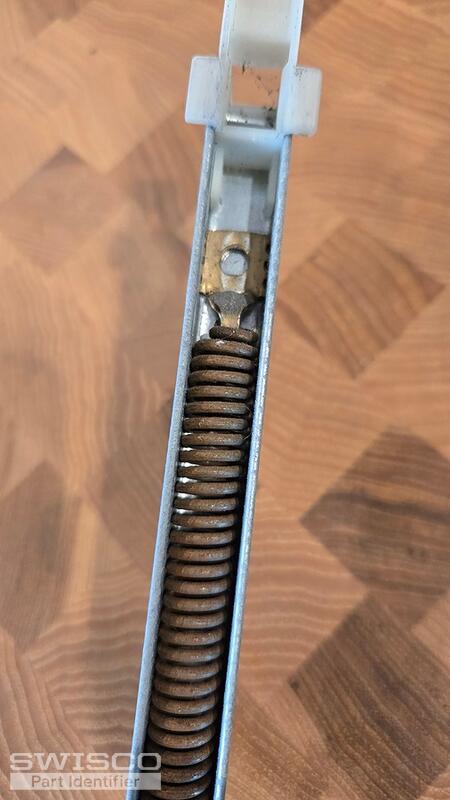

I am looking for replacement channel body parts for my window. see attached photos. The channel is 26inches long (just the channel, not including the plastic guides) and about 1/2" wide. The part is printed with 26 4 HV CMC 7. This is an older aluminum window. thank you for your help in locating this part.
channel body spring 26 4 HV CMC 7
Home Owner from Oakland California
May 7, 2025 12:57 pm
5 user uploaded images
5 Replies
Emily from SWISCO
May 13, 2025 9:35 am
Hey there!
Thank you for waiting during this busy season. We're happy to look into this. We would like to see an image of the inside of the balance’s metal channel, where the innerspring connects to the pulley mechanism; this connection is located in the middle of the channel.
Can you also measure the bottom shoe as shown below? Additionally, the metal channel should measure 27" long based on your stamp. Could you double-check that for us?
If the metal channel is indeed 26" long, we will need you to weigh the window sash and tell us the precise weight.
Profile view of a winged balance attachment
Home Owner from Oakland California
May 14, 2025 8:29 pm
Hi,

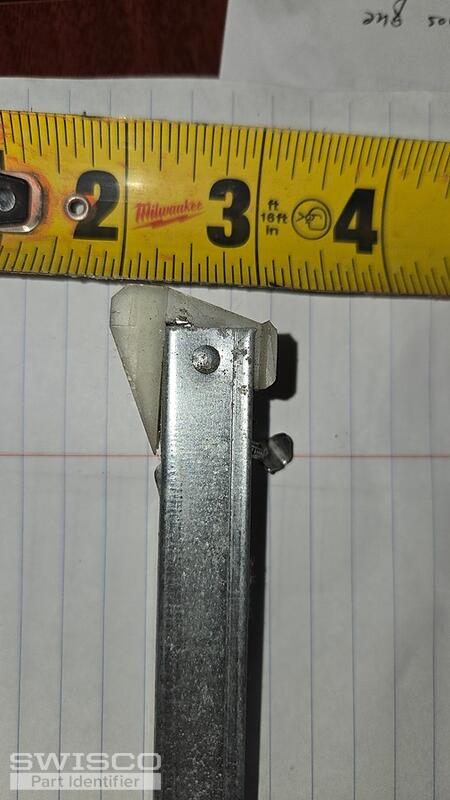

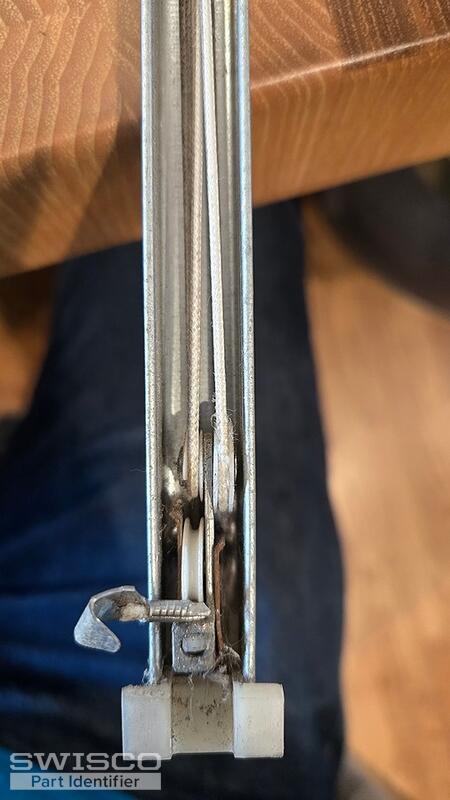

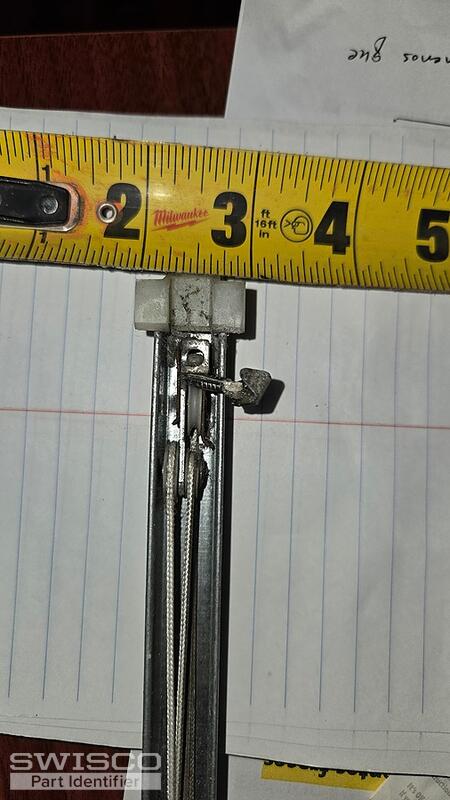

the metal channel is indeed 27 inches, I measured from the wrong spot previously. The bottom shoe is 1" deep.
the metal channel is indeed 27 inches, I measured from the wrong spot previously. The bottom shoe is 1" deep.
Home Owner from Oakland California
May 14, 2025 8:31 pm

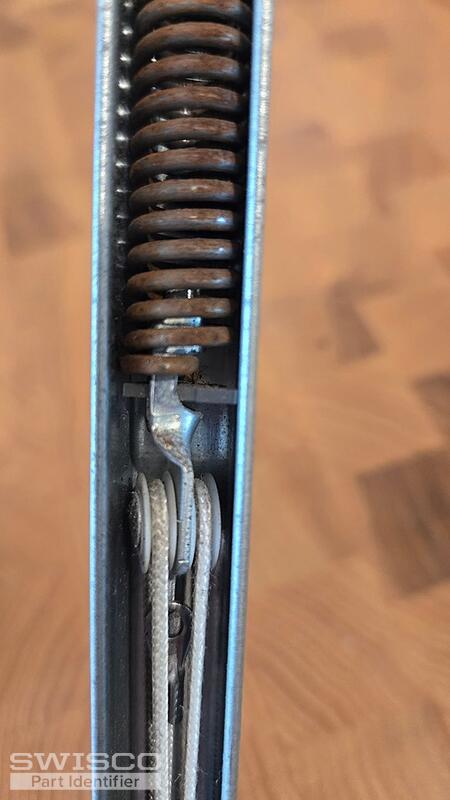

Please see images of center channel with pulley connections
3 user uploaded images
Emily from SWISCO
May 15, 2025 8:31 am
Thank you! I recommend the S380-27 or S385-27 channel balances with the 2640 stamp option. The important difference between the two Series is the depth of the bottom shoe, so you'll have to measure as shown below.
Please let me know if you have any questions!
Comparison of the S378, S380 and S385 balance shoes.
