coil balance

A quick learner from Herndon Virginia says:
August 17, 2022

Hello, need to replace coil balance springs on window sash 38 lbs. ?. 36 inches tall. (33" wide). One side had coil failure and the other looks like it is ready to go. I believe each side has three coils and each coil is labeled 6 lbs.

Vinyl windows are about 20 plus years old. Don't know the mfr. Please recommend replace coil system. See pictures provided. One side still functional the has the failure. I intend to replace both sides. Thanks. Carvin

Thumbnail of the uploaded file named 3CC8C213-0DC0-45CD-9FAE-DA18D9E658D3.jpeg
Thumbnail of the uploaded file named 4E024BB9-16FE-4B0A-B169-35294854F15D.jpeg
Thumbnail of the uploaded file named 1BCA1561-2412-4561-8770-F9010751997D.jpeg

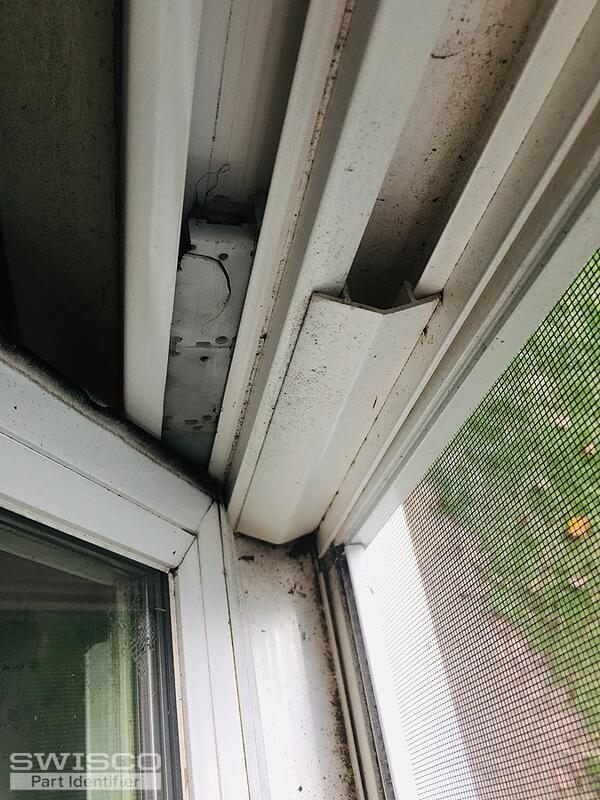

Thumbnail of the uploaded file named 50EB90F8-8F6E-48C4-81B5-4F79850A12BC.jpeg
Profile picture of Tom
Tom from SWISCO responded:
August 18, 2022

Hello! Your old pivot carrier appears to match our 15-087, which is designed to work with the Series 180 coil spring. We also sell the 15-087 secondary carrier if you cannot reuse your originals.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
