coil balance
Quick Learner from 68046
Oct 21, 2017 11:41 am
I need to replace my coil balance, it would be a series 152. how do I determine the lbs balance to use. Weigh my window and use half that for each balance spring?

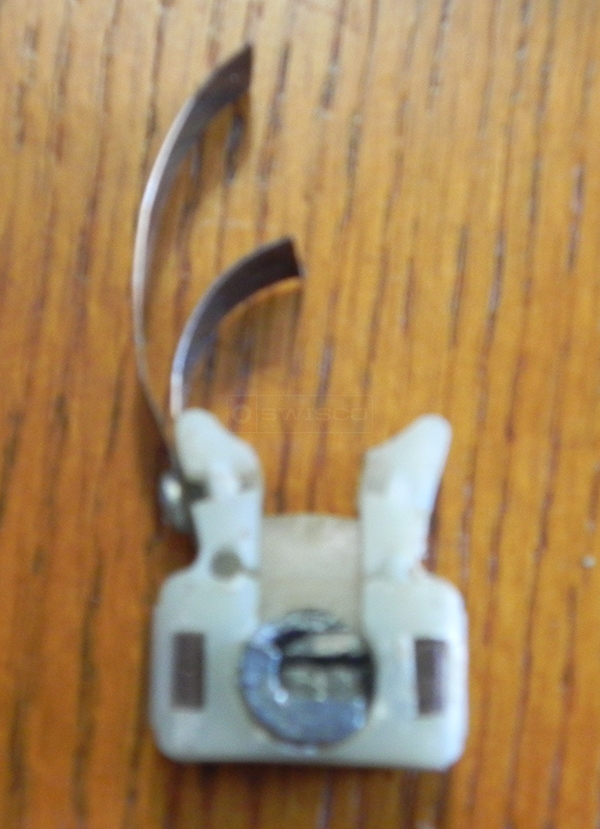

The window measures 52"W x 53"H and the lower sash weighs 32#. The coil balance shoe looks like the 15-175. what coil balance spring would I need. the spring attached had E L marked on the outer spring.
The window measures 52"W x 53"H and the lower sash weighs 32#. The coil balance shoe looks like the 15-175. what coil balance spring would I need. the spring attached had E L marked on the outer spring.
2 Replies
Tom from SWISCO
Oct 26, 2017 10:38 am
I agree, the 15-175 looks like the best match. This is meant to be used with the Series 152 spring. If your sash is 32 pounds, you would just divide that among the number of springs used to support it. For example, if you have four springs (two on each side), you'd divide 32 by 4, giving you 8. That means you want the S152-8. Each of these can carry 8 pounds, so having two on each side would be perfect for your sash weight.
