The shoe is 9/16" thick x 1 1/4" wide.
The window is about 38 x 56.
Another window with single coil is 29 x 36.
Sorry, I did not measure the coil balance, but I will need them also.
I did not find any identifying numbers.

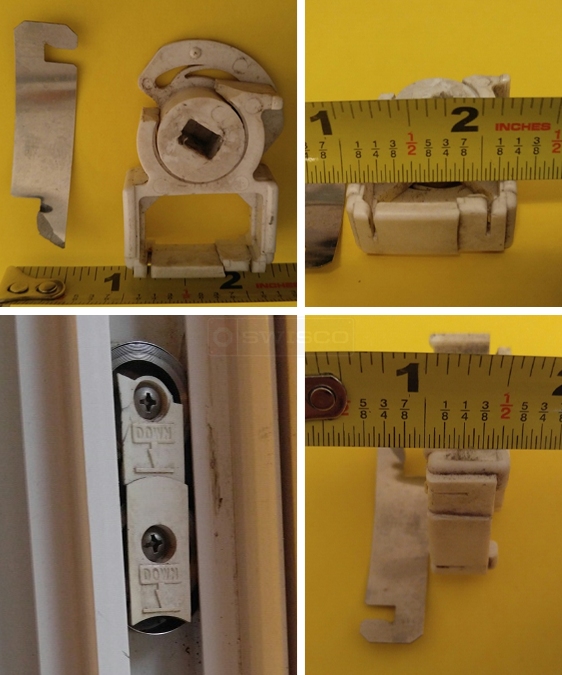

coil balance and balance shoe
Contractor from Lewes
Sep 20, 2017 9:22 pm
The windows are DH in a modular home built in eastern PA.
The shoe is 9/16" thick x 1 1/4" wide.
The window is about 38 x 56.
Another window with single coil is 29 x 36.
Sorry, I did not measure the coil balance, but I will need them also.
I did not find any identifying numbers.
The shoe is 9/16" thick x 1 1/4" wide.
The window is about 38 x 56.
Another window with single coil is 29 x 36.
Sorry, I did not measure the coil balance, but I will need them also.
I did not find any identifying numbers.
2 Replies
Paul from SWISCO
Sep 26, 2017 1:54 pm
I see you have the old discontinued Series 151 coil spring set up. It has since been replaced with our Series 150 coil balance system along with our 15-140 coil balance shoe. There is a number that will be stamped near the end of the cut out hook of the old springs to indicate the spring weight.If there are no numbers, you will have to weigh your window sash and divide it by 2 for each coil on each side.
