coil for balancer on a mobile home window

Start a new Discussion

Quick Learner from Kentucky

Aug 10, 2023 6:02 pm

this is the name of the window company (clayton Windows) but i dont know what i can use for it's replacement

2 user uploaded images

4 Replies

Casey from SWISCO

Aug 11, 2023 11:41 am

Hello,

We should be able to help but we would need you to write out the exact width of your coil spring to compare to our replacement options. Also, it's tough to make out the number stamped on your coil, which we'll need to confirm the corresponding strength option.

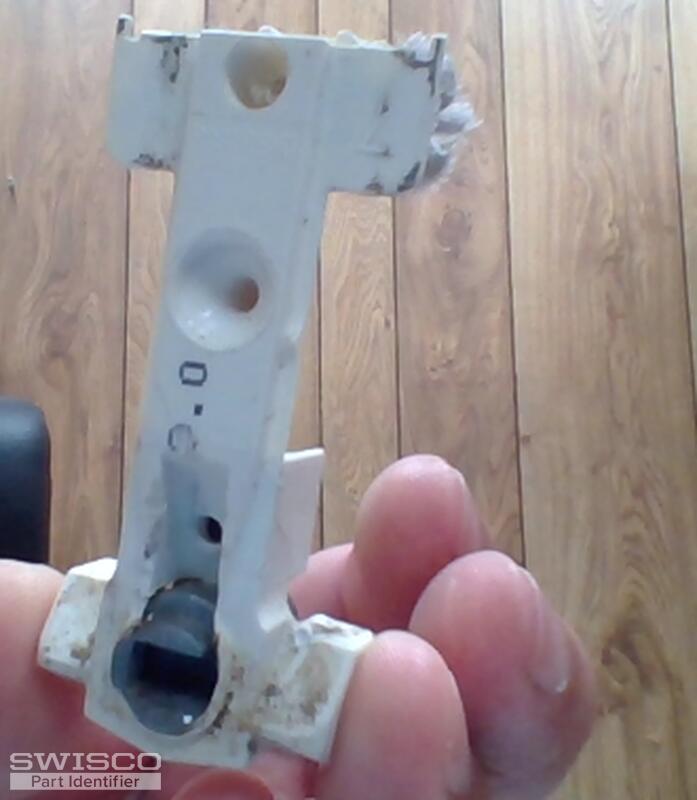

It would also help to see the pivot shoe that the coils anchor to. In the meantime, see the videos we've related on this page to help you through the repair process. Thank you!

Quick Learner from Kentucky

Aug 12, 2023 5:00 pm

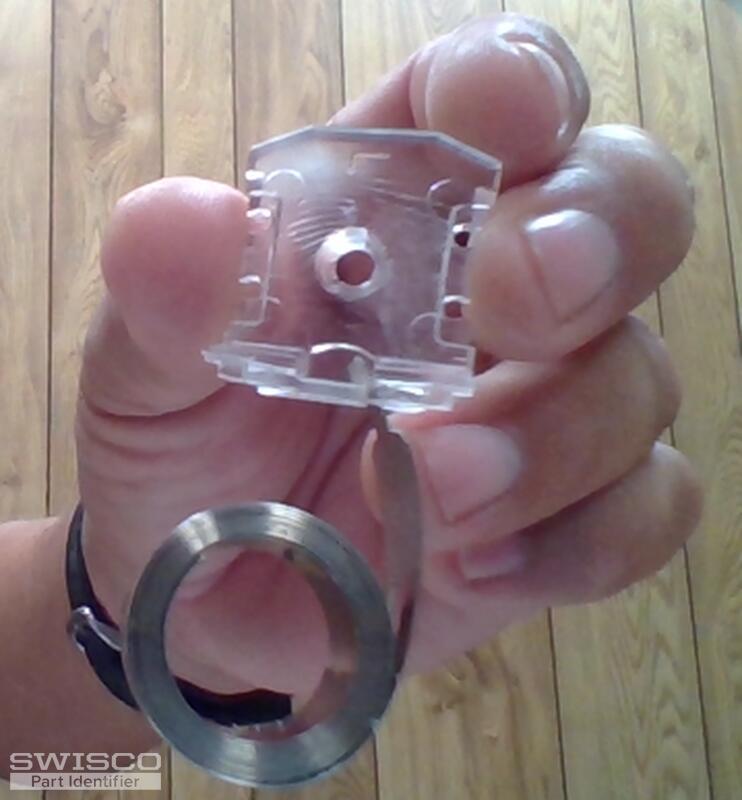

It's a half inch wide and in the first pic's i sent, its stamped #90 35"

3 user uploaded images

Casey from SWISCO

Aug 14, 2023 8:39 am

Thanks for getting back to us. It looks like you have an older version of the 15-251 single support, which uses the 1/2" thick S160 coil springs. It seems like your coil may be stamped with 9.0, which would indicate that you will need one S160-9 coil spring on each side. Thanks for posting.
