Weathercraft coil sash

A handy person from Pottsville says:
November 10, 2017

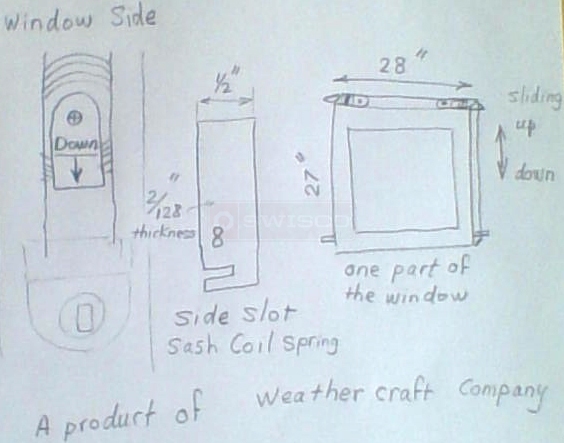

width 1/2 inch thickness 2/128 inch stamped # 8 have a slot to the side as in the photo window is vaynal with 27" hight up and down movement. this windows are Weathercraft company production.
User submitted photos of window hardware.
Profile picture of Tom
Tom from SWISCO responded:
November 15, 2017
If I'm following correctly, it sounds like you need a replacement coil balance. If so, can you show me a picture of the pivot shoe to which your spring connects? That would be a huge help.
A handy person from Pottsville says:
November 21, 2017
PLs attached the required photos for windows Ref#D99807

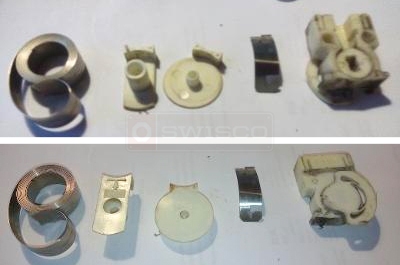

User submitted photos of a window balance.
Profile picture of Tom
Tom from SWISCO responded:
November 28, 2017
Your exact balance system has been discontinued by the manufacturer, but you can use our 15-140 shoe and S150-8 coil springs as a replacement. The other fittings are the same, but see our 15-143, 15-and 15-145 if you need them.
8 lb Series 150 Coil Balance
8 lb Series 150 Coil Balance
S150-8
$6.72
Coil Balance Shoe
Coil Balance Shoe
15-140
$3.07
Coil Bushing
Coil Bushing
15-143
$0.97
Coil Bushing Cap
Coil Bushing Cap
15-144
$0.70
Coil Support Barrel
Coil Support Barrel
15-145
$0.49
