coil spring balance

A professional from South Carolina says:
April 21, 2023

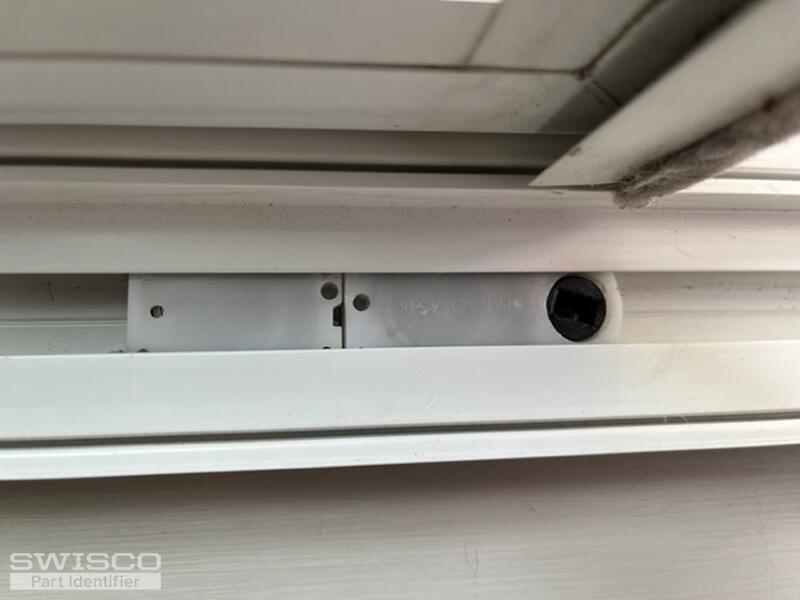

My daughter in IL has a broken coil spring right side window balance that I need to replace. I have attached a photo of the existing coil spring. Can you help identify and offer a replacement?
Thumbnail of the uploaded file named IMG_0027.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
April 24, 2023

Thanks for reaching out! Your coil housing appears to be our 15-087 along with the 15-086 tandem housing. Look over the dimensions from each of these parts and compare them to your existing hardware.

Detail of 15-087
Detail of 15-087

Detail of 15-086
Detail of 15-086

These are compatible with the Series 180 Coil Balance Springs. To determine which springs you need, check for any stamps/markings that might be on the metal coil. If you are unable to read them or there are no stamps at all, you'll need to obtain the exact weight of your sash. Then you'll need to take the sash weight and divide it by the total number of coils in the window. This will help you determine the spring strength you'll need.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
Mounting Bracket
Mounting Bracket
16-024
$0.66
Mounting Bracket
Mounting Bracket
16-031
$0.90
