coil spring harness

A contractor from pawling ny says:
October 4, 2019
need 2 sets of a left and right harness. the only number i see is an 8. Which is on the coil spring. I al ready purchased 4 of those.
Thumbnail of the uploaded file named IMG_0106.jpg
Thumbnail of the uploaded file named IMG_0107.jpg
Thumbnail of the uploaded file named IMG_0108.jpg

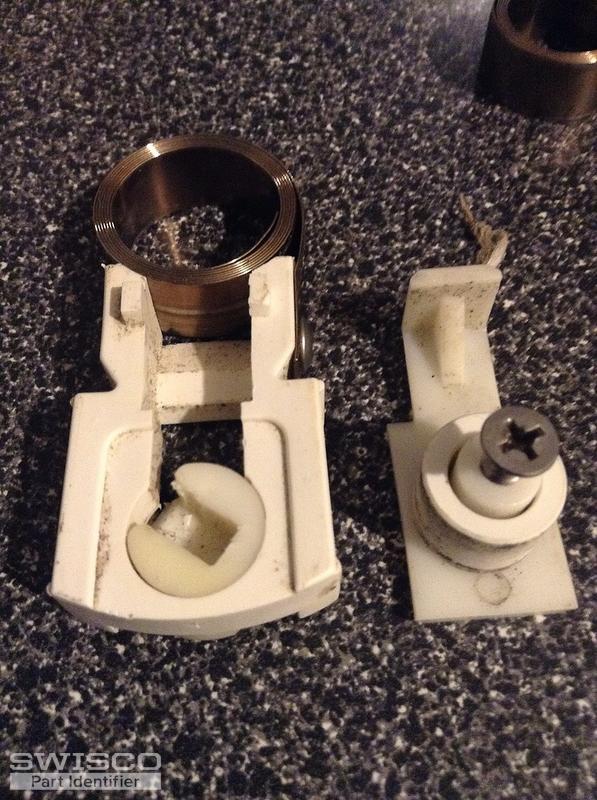

Thumbnail of the uploaded file named IMG_0110.JPG
Profile picture of Paul
Paul from SWISCO responded:
October 8, 2019

Hello and thank you for writing in. Let's start off with your coil springs. Our S190-840 does look compatible to what you have and can carry a sash weight if eight pounds. Take a look and see if this looks like the correct spring. If you should also need to replace any of the accessories of the coil spring system, I placed a list of those items on this page for you to look over. Take a look and see if these match up to what you have.
840 S190 Coil Balance Spring
840 S190 Coil Balance Spring
S190-840
$11.32
Coil Balance Clip
Coil Balance Clip
15-186
$5.05
Balance Bushing
Balance Bushing
15-182
$1.80
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
