correct screen corners (top and bottom) : SWISCO.com

Home Owner from Ohio

Aug 5, 2025 6:51 pm

Swisco team, need some help choosing the correct screen corner for full length window screens.

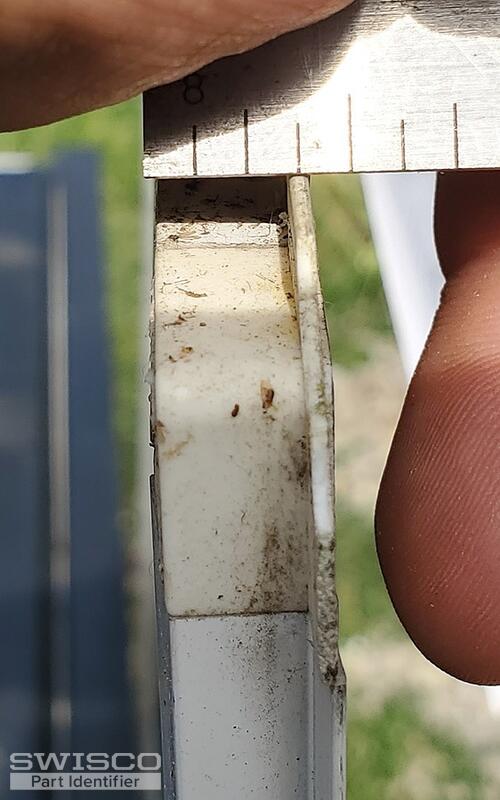

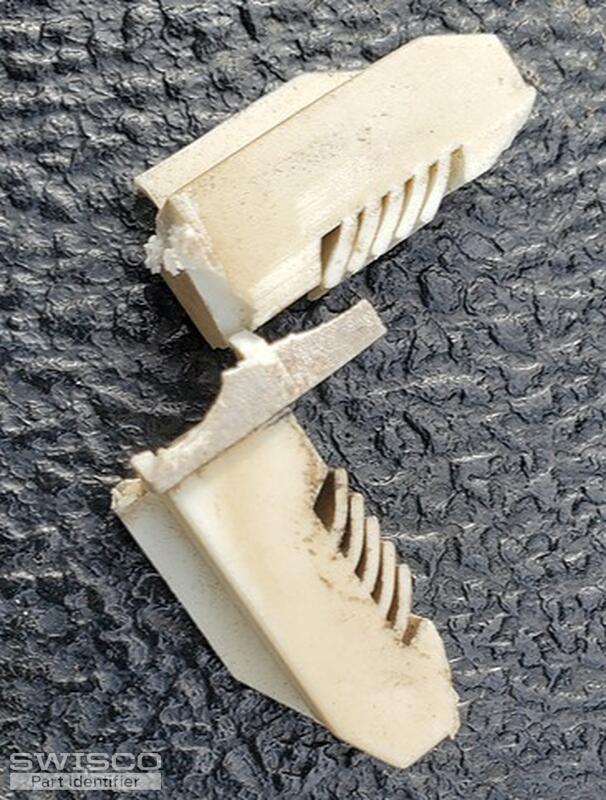

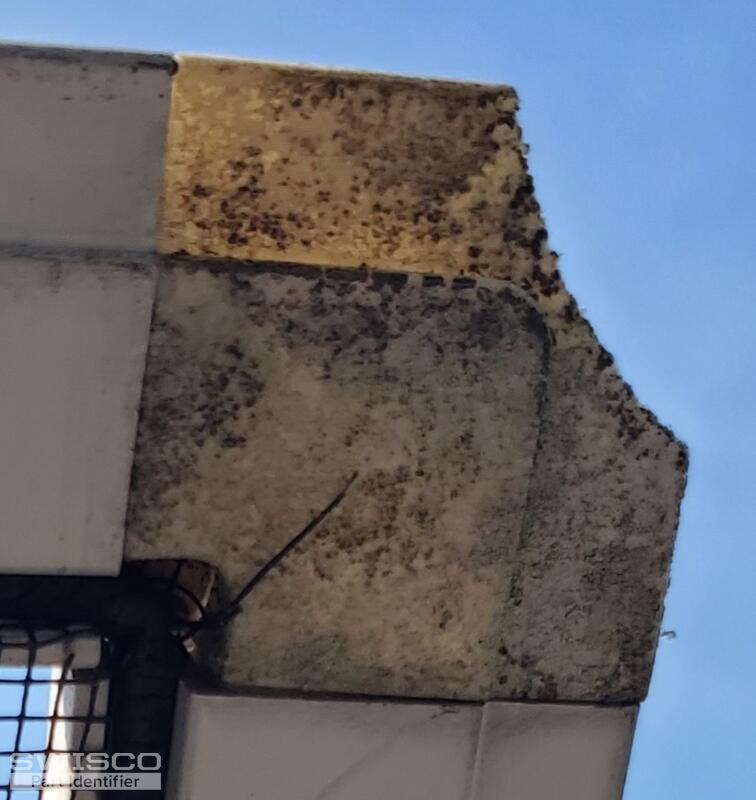

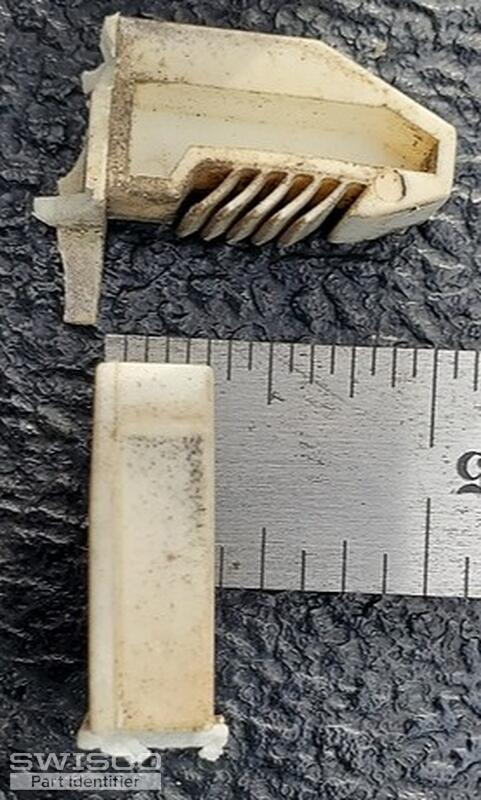

I have uploaded the pictures to help. I have included both top and bottom. The top two have a wedge clip (to lock it into place), whereas the bottom is just a standard square corner. it looks like a 95-270 or 95-262, but I can't tell the difference between the 5/16 vs 3/8. Just to emphasize the point,the arms are serrated or fletched like the 95-270. Any help you can provide would be appreciated. Thank you.

5 user uploaded images

4 Replies

Casey from SWISCO

Aug 11, 2025 10:56 am

Hello,

We'd be happy to look into this for you but we would need to see an intact corner fully removed from the frame. As for the size, you'll need to measure the exact thickness of the frame opening the corner legs install in to narrow down your options. Thank you!

Home Owner from Ohio

Aug 11, 2025 1:28 pm

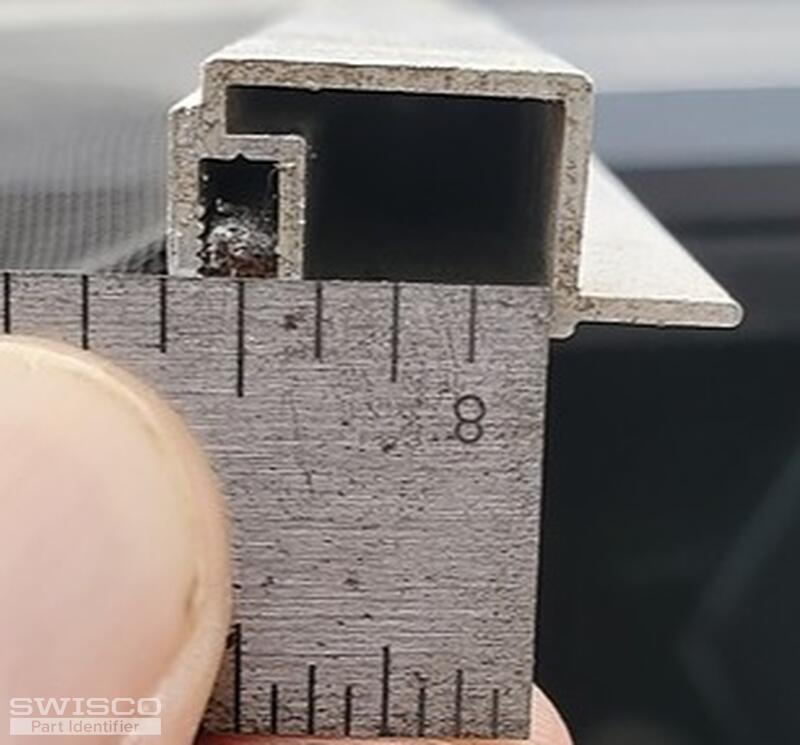

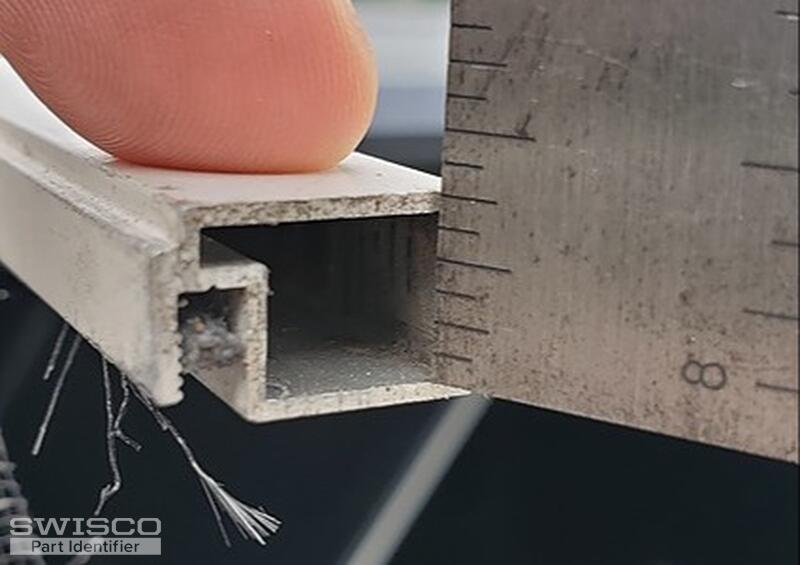

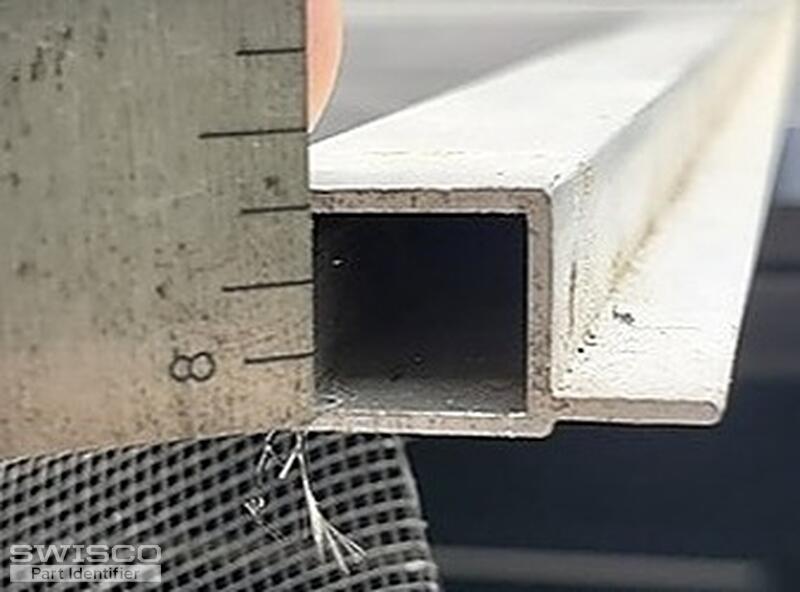

Here are a few more pictures... I couldn't add them in the original post I guess I met the limit..
I will have to pull a frame apart to get an intact one... I didn't want to destroy the only good frames I have.
Thank you.

5 user uploaded images

Dave Sr. from SWISCO

Aug 12, 2025 8:15 am

I see that you have a heavier "extruded" type of screen frame, not the lighter "roll" metal type frame. I'm not sure if you will be able to find the exact corners to fit your frame. Your type of frame was popular at one time, but the exposed corners didn't hold up. With that being said, take a look at the 95-205 corner, which has the back lip shown in your photos. Take a look and see if you could adapt something like the 95-205 or 95-206 corners to work for your screen frame.

Alternate image for 95-205

Dimensions for 95-205

Alternate image for 95-206
