could not locate

A handy person from Prince Fredrick, MD says:
May 11, 2020

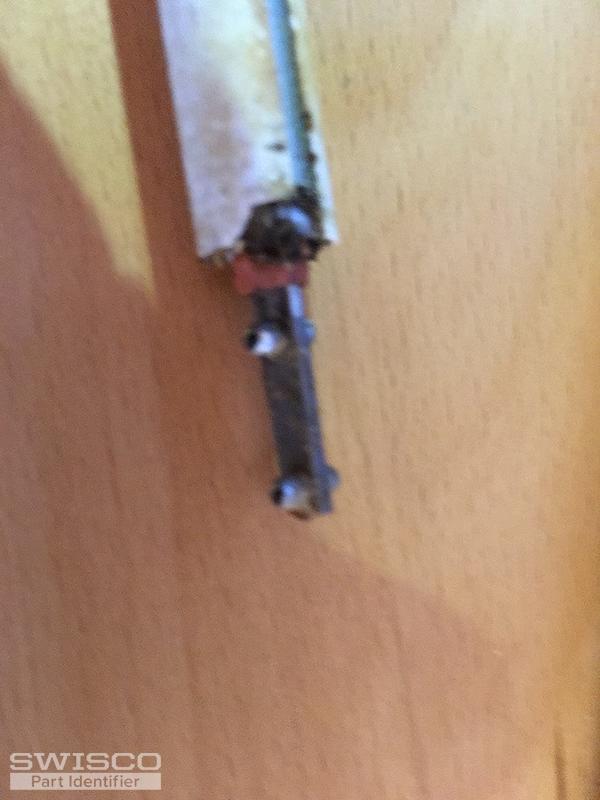

Spiral Balance is round with white cover and is 28" long, 3/8" wide and has red tip

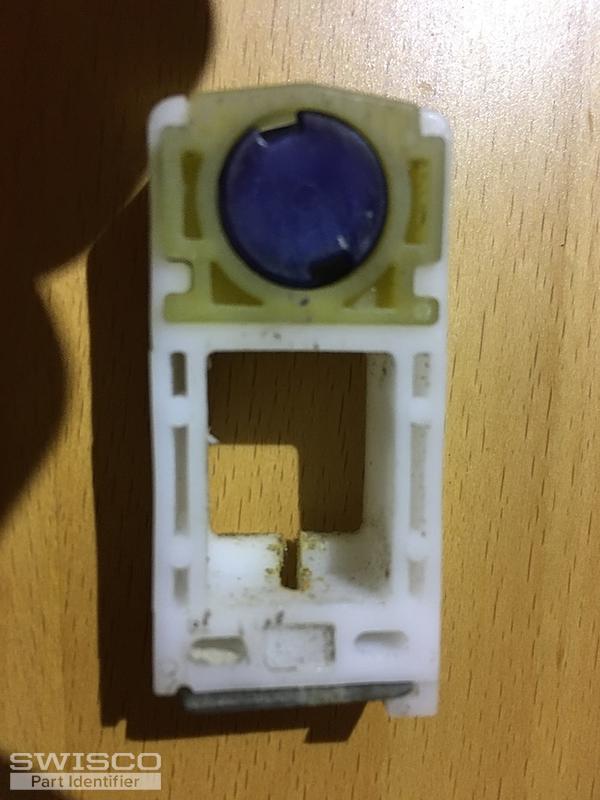

Pivot shoe is 2" long, 1' wide and 1/2" deep.

Will replace mechanism on both sides, just need something that works. Stationary top sash ans pivoting bottom sash.
Thumbnail of the uploaded file named IMG_0444.JPG
Thumbnail of the uploaded file named IMG_0446.JPG
Thumbnail of the uploaded file named IMG_0448.JPG
Thumbnail of the uploaded file named IMG_0451.JPG
Thumbnail of the uploaded file named IMG_0454.JPG
A handy person from Prince Fredrick, MD says:
May 11, 2020

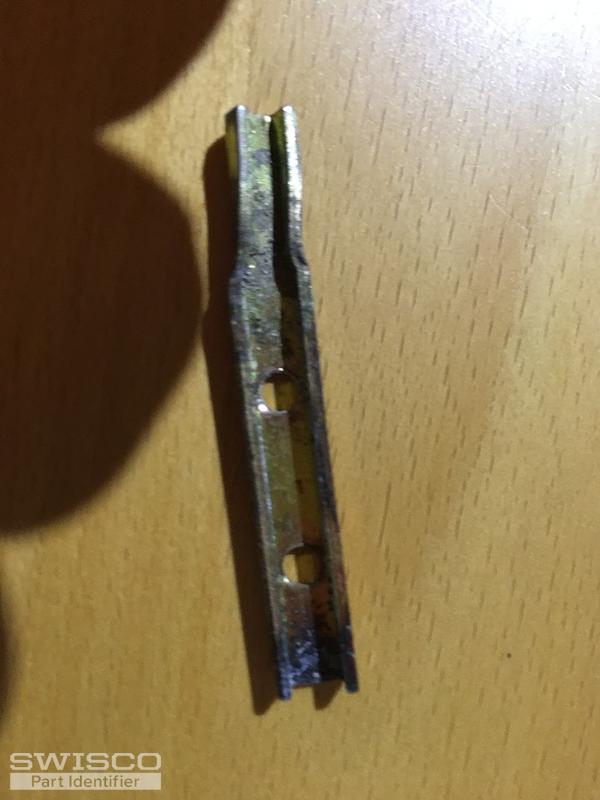

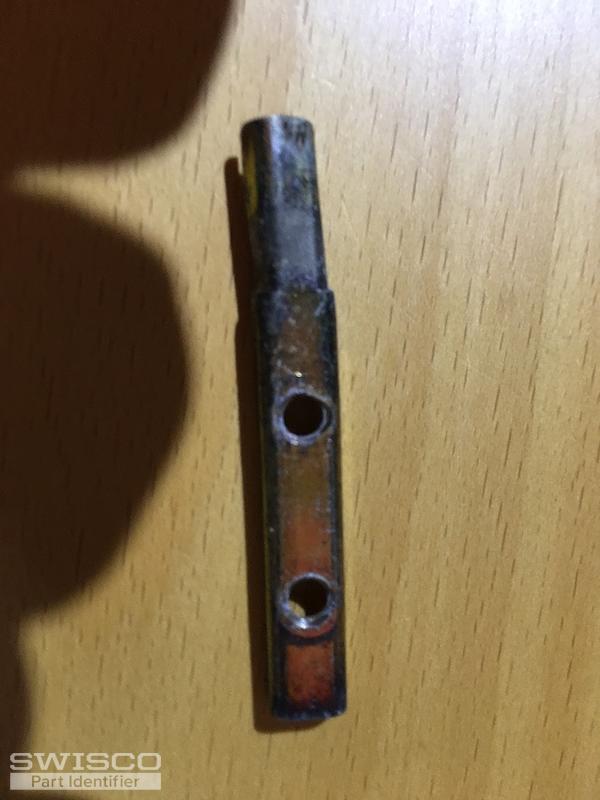

Bottom sash clip photo is attached. 2 1/4" long, 5/16" wide and 3/16" high.
Thank you
Thumbnail of the uploaded file named IMG_0452.JPG
Thumbnail of the uploaded file named IMG_0453.JPG
Profile picture of Paul
Paul from SWISCO responded:
May 14, 2020

Hello,

Take a look at our S900-28" with a red tip spiral balance. Please note our spiral balance is a metal tube instead of plastic. As for your other hardware, see our 15-211 pivot shoe and 26-297 pivot bar. You might also want the 75-006 charging tool to make it easy to attach the spiral to the pivot shoe. Thanks for posting!
28" Series 900 Spiral Balance
28" Series 900 Spiral Balance
S900-28
$9.10
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
Pivot Bar, 2 1/4"
Pivot Bar, 2 1/4"
26-297
$1.45
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-211
$2.85
