crank arm w/ shoe

Quick Learner from Oregon
May 2, 2023 3:43 pm
looking for this I found part #39341 but I need to shoe too

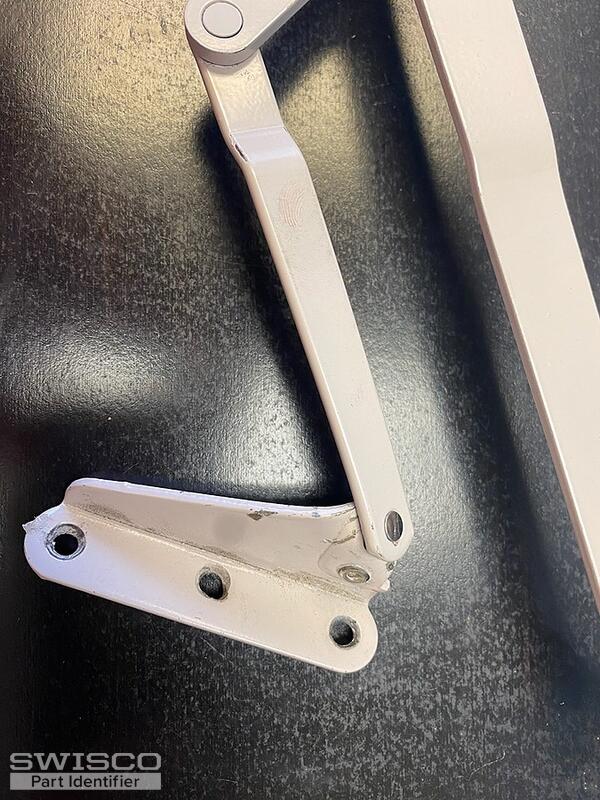

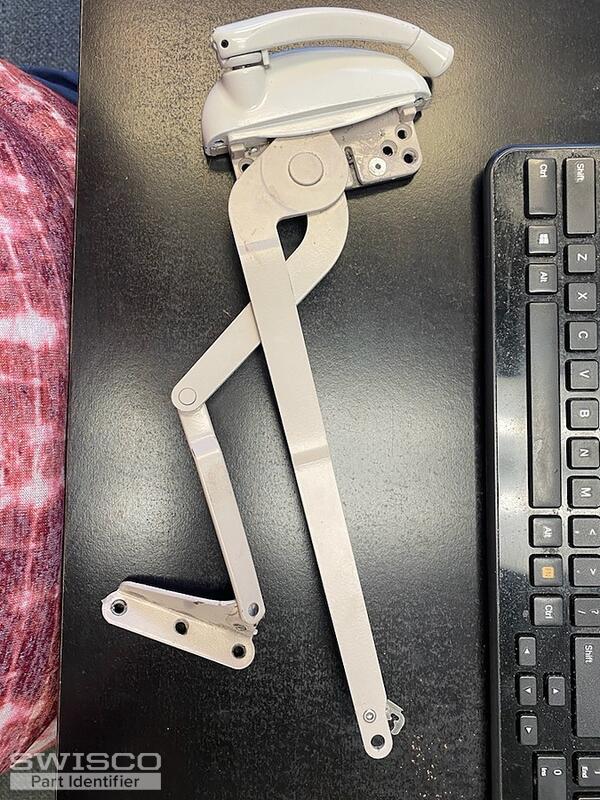

IMG_7006 IMG_7007
2 user uploaded images
1 Replies
+ Add a Comment
Tom
Tom from SWISCO
May 3, 2023 3:18 pm
SWISCO
EXPERT

Hello! Your operator here looks like our 39-341. It also looks like your stud bracket is pretty severely bent, so I'd also suggest the 39-546. I feel confident these will work on your window.

Please review these parts and let me know if you had any questions!

Alternate image for 39-341
Alternate image for 39-341

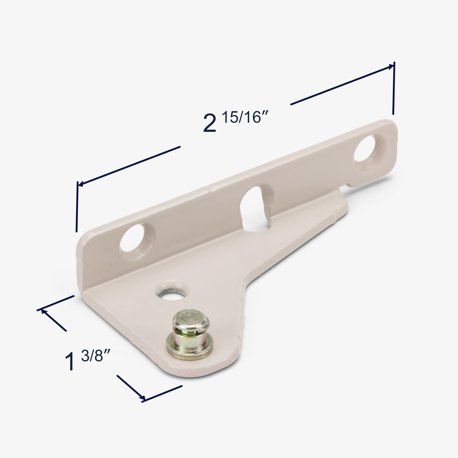

Dimensions for 39-546
Dimensions for 39-546

+ Add a Comment
