crank for Anderson casement windows 1997

Quick Learner from Brooklyn, WI
Anderson Casement windows from 1997
1. One opens right to left with hardware on left: 2nd one opens left to right (as I look out) and hardware on right

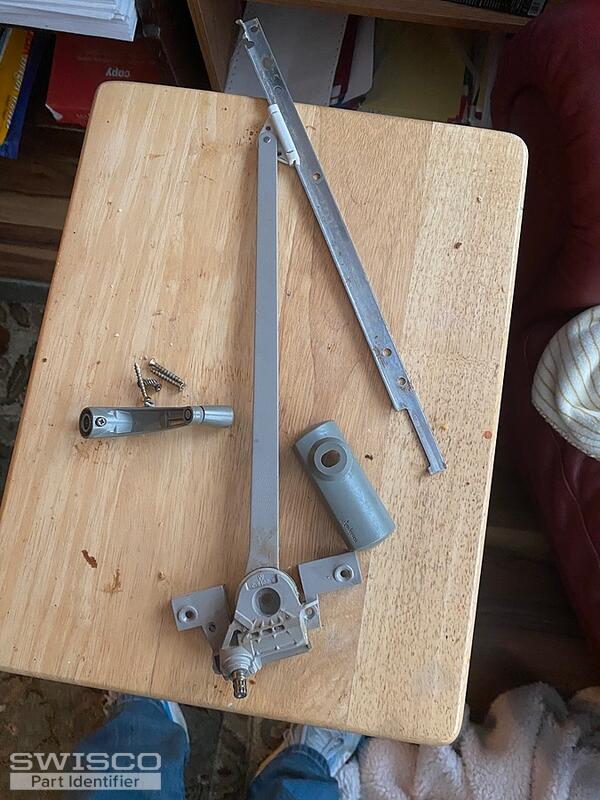

2. Bronze hardware - 3 parts (crank mechanism, actual crank and cover for mechanism) cover in good shape
3. Already removed trim and all crank parts
C-9400-1 & F-9400-8A (on the mechanism)
handle = 1361356WH
kind of hard to read
I need the mechanism and handle for the two windows
1 user uploaded image
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

You may have an older version of the 39-332 operator. We also offer the 39-331 opposite-handed version. You may also need to use the 39-362 adapter plate being that your window is from 1997. The 39-362 adapter plate is used to help some Andersen operators install on windows made between 1995-1998. Take a look at the related parts and let us know if you need anything else.
