Hi

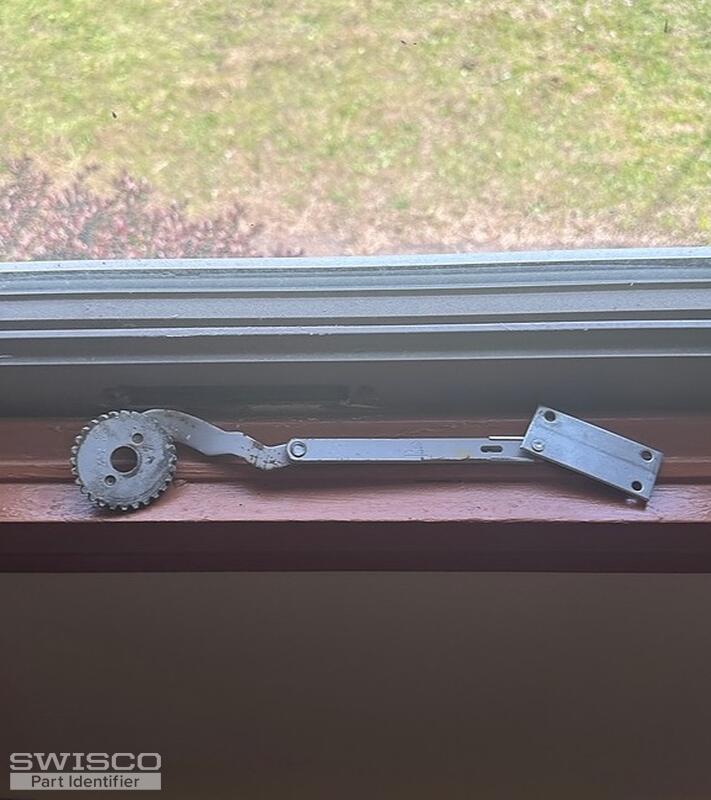

inam trying to find this 6 crank handle unit for my window . Could you please help to I want to buy 6 they don't work anymore and my window are new I can't afford to replace them

4 user uploaded images

9 Replies

Casey from SWISCO

May 16, 2025 1:26 pm

Hello,

Take a look at the 39-188 operator. This matches the zig-zag shape of the gear arm. We also offer the 39-187 opposite-handed version. Both parts use the 39-114L handle. Review the specifications and see if they match up with your old assembly. Thanks for posting!

Alternate measurement of arm

Handy Person from Ali

May 23, 2025 5:27 pm

Hi
thanks Casey could you please confirm which one should I buy there are two size . You mention and just to confirm I need to order Sqaure plate also you show with handle and crank unit
thanks
Mali

Casey from SWISCO

May 27, 2025 8:29 am

The operator shown in your photos has the handle mounted on the right side of the base, which would be the 39-188. The stud bracket in your last photo matches the orientation of the 39-514.

Handy Person from Ali

May 27, 2025 2:17 pm

Hi
thanks for the part identification question is that they fit in all door like left and right side or they are universal fit some window open left side some right side

Home Owner from Ali

May 27, 2025 2:33 pm

Hi

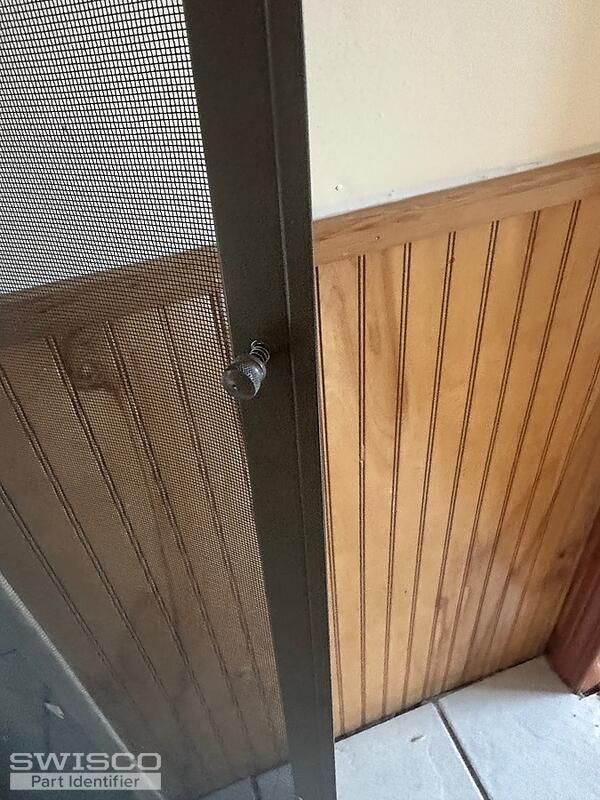

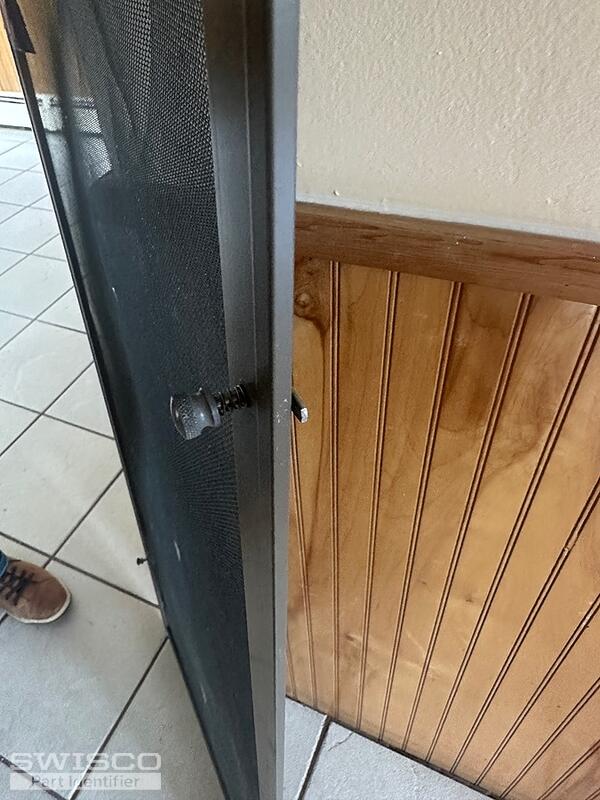

thnaks I need one more things I need to screen clips or screen corner . I m going to add photos pls can you identified for me I will place an order all together .

2 user uploaded images

Casey from SWISCO

May 27, 2025 2:45 pm

The brackets are left and right-handed like the operators. The 39-513 is the opposite-handed version of the 39-514.

As for the screen spring clip, see the 70-050 or 70-050B, depending on the size you need.

Alternate image for 70-050

Dimensions for 70-050B

Home Owner from Ali

Jun 9, 2025 11:27 am

Hi

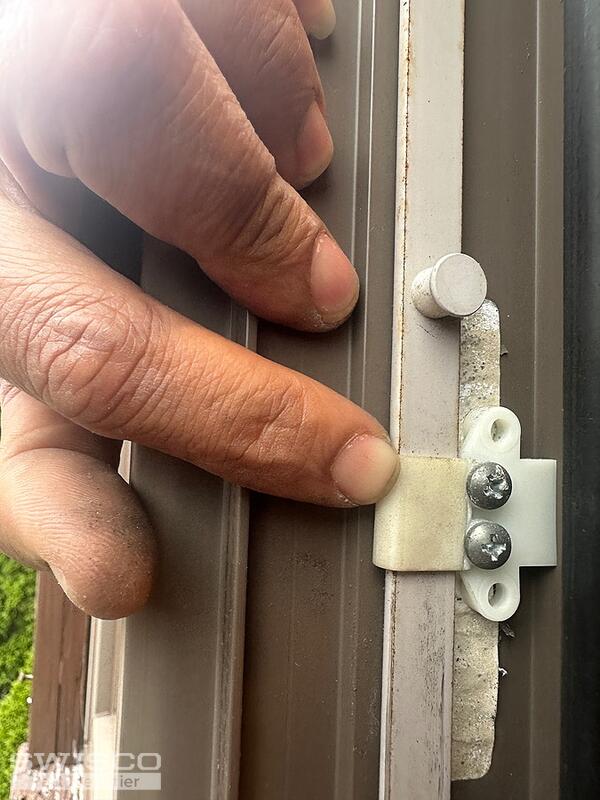

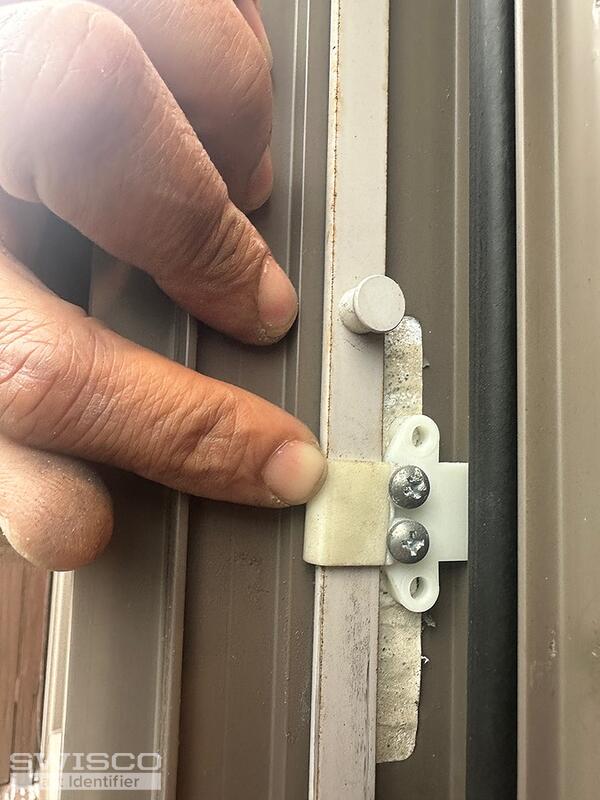

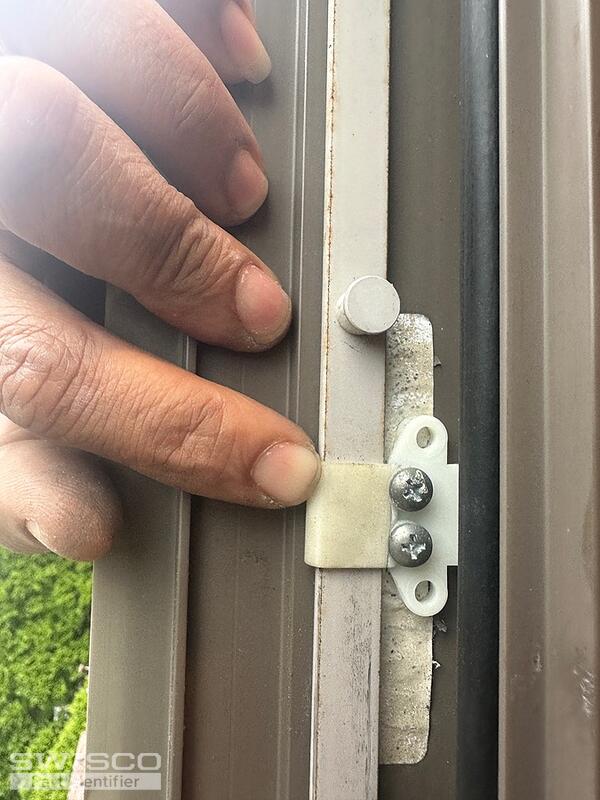

casey i am in need of one more parts could you pls help me to identified. I am going to attached the pics
spring clip they send all under a inch and my window have one Minch or longer could you pls help me on spring clip also
thanks

5 user uploaded images

Casey from SWISCO

Jun 9, 2025 11:43 am

Take a look at the 39-448 tie bar guide.

Alternate view of 39-448 with dimensions

Side view with dimensions for 39-448

I see that you purchased the 70-050B clip, which is the largest option we offer at 1-1/8" tall, as shown in our product image. I'm sorry that we can't provide a larger option at this time.
