Home Owner from louisiana

Jun 4, 2020 10:17 am

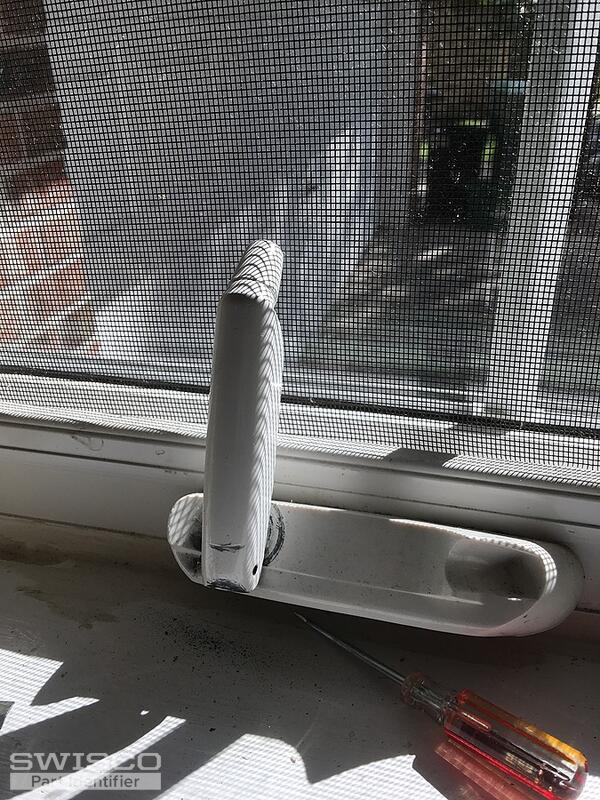

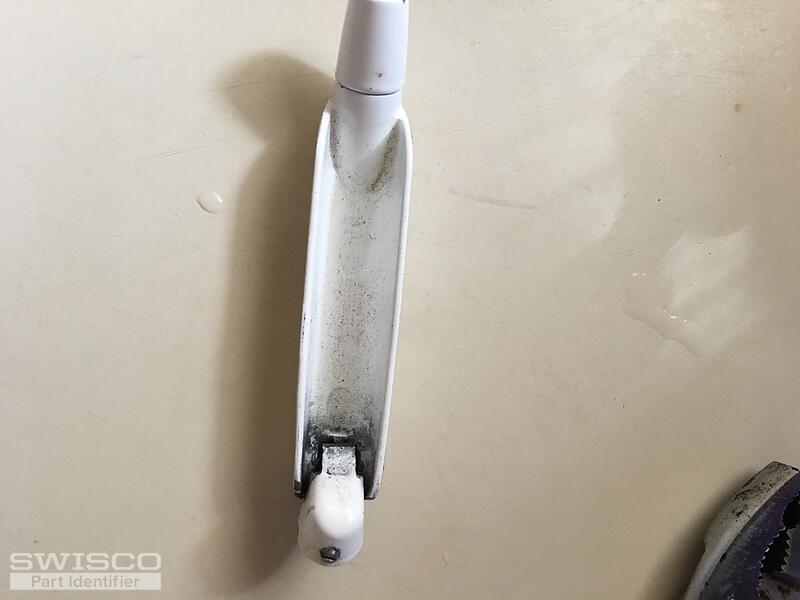

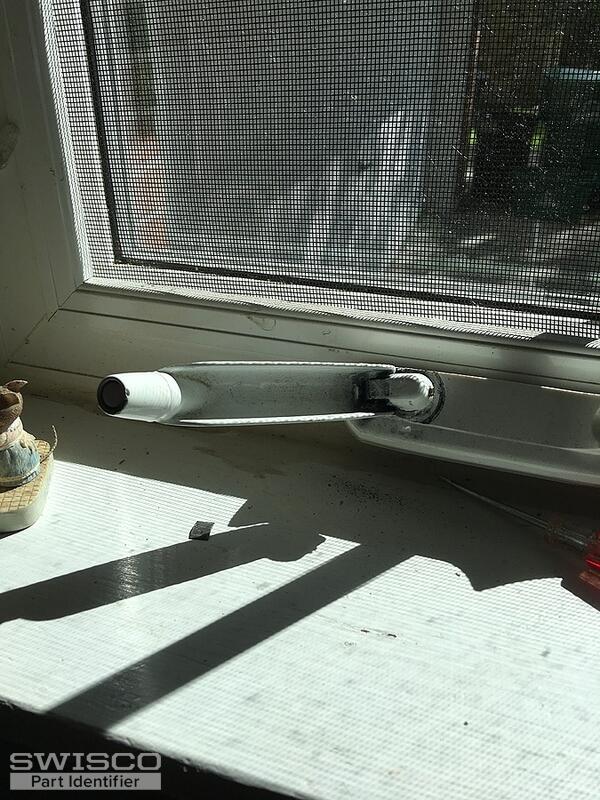

I have attached a picture of the window crank handle that I need. Do you have available? please quote price and order instructions. Thanks, Ward

3 user uploaded images

4 Replies

Casey from SWISCO

Jun 8, 2020 2:30 pm

Hello,

If your handle installs on an 11/32" operator spline, take a look at our 39-107FK folding handle and cover kit. Thanks for posting!

Home Owner from louisiana

Oct 2, 2023 4:42 pm

Hi, Casey,

I'm back.

The manufacturer covered that cover and handle a few years ago, but those days are over and it's broken off again.

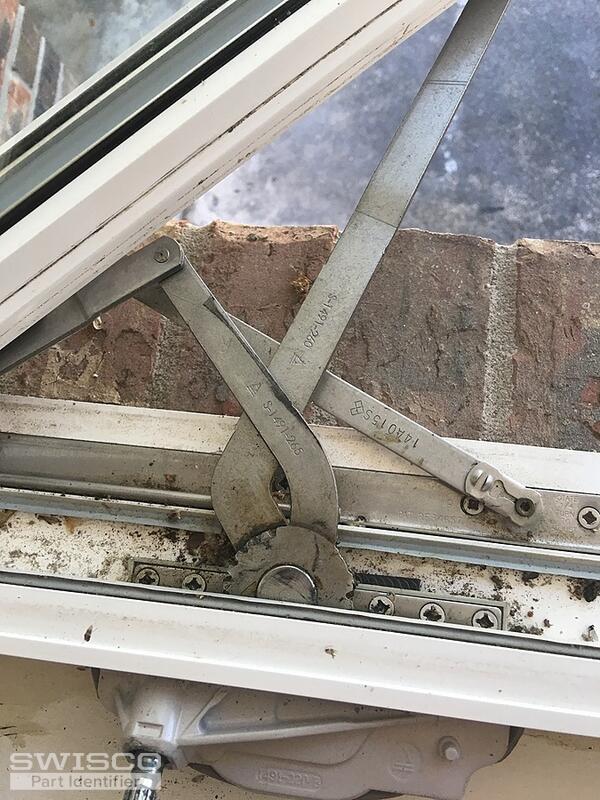

A Swisco rep asked me to show the arms of my operator, so I'm showing you here. That's the first picture.

My guy pointed out a couple of things. He said it looked like the crank stem is on the left side, not the center of the operator, so he doesn't think the 39-107FK would work. Will it?

Also, based on the shape of the operator under the cover, he isn't sure the operator is a Truth, which is what I'd need to make a Truth cover fit.

4 user uploaded images

Casey from SWISCO

Oct 3, 2023 10:49 am

Hello again,

Your operator resembles the Encore-style operators shown in the video below. The determining factor would be the fitting that attaches the long arm to the bottom of the sash. Both pairs are used with the 39-375 and 39-376 handle and cover kits. Note that these use handles that are offset to the right or left side of the base that corresponds to your photos compared to the 39-107FK, which uses a center-mounted handle. Review the specifications below and see what you think.

Width measurement

View of the handle extended

Side view
