crank housing

A quick learner from Port Richey, Florida says:
The mount on the crank housing broke and the worm gear that attaches to the handle came out. I jerry-rigged it and got it to close. Is a replacement available? I'll need a right and a left (so they match. Thanks.
Thumbnail of the uploaded file named DSC_0529.JPG
Profile picture of Tom
Tom from SWISCO responded:

Sure, we actually carry a ton of operators in this style. I'm not sure exactly which one you have, but you can see our whole selection here.

If you aren't able to match any of our parts upt o your original, then I'll need a bit more information to narrow it down for you. Start by showing me one clear picture that shows the complete installation hole pattern, and another picture of the link arm fully removed and disconnected from the linkage. From there I will do my best to get a good match for you.

A quick learner from Port Richey, Florida says:
Can you identify from these pictures?
Thumbnail of the uploaded file named DSC_0534.JPG
Thumbnail of the uploaded file named DSC_0535.JPG

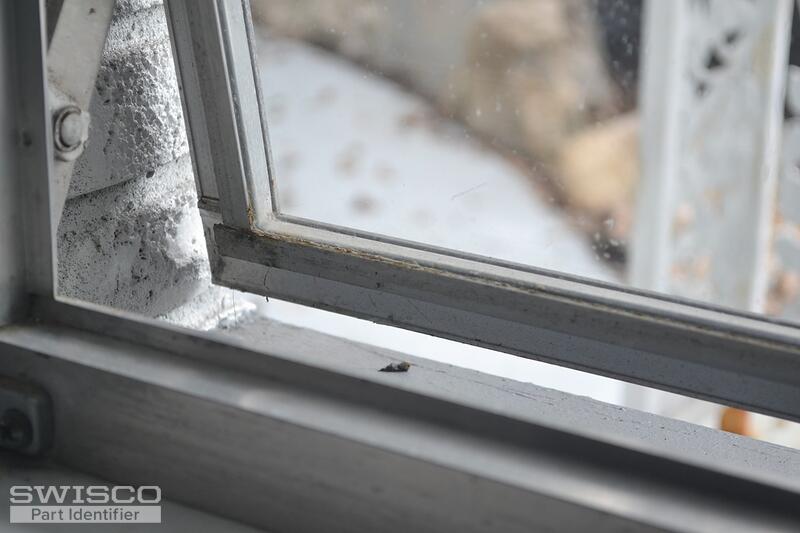

Thumbnail of the uploaded file named DSC_0536.JPG
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid I still can't see the link arm. The frame obscured too much of it for me to ID.

I have made a list of products that could potentially replace yours. You can look it over to see if any of these will work; we have detailed photos and dimensions on each product's store page that you can use as a reference. Otherwise, I will need to see your operator out of the window in order to narrow it down.

33-206 : Shoulder Bolt Washer
Shoulder Bolt Washer
33-206
$0.19
VIEW >
39-011 : LH Superior Window Crank
LH Superior Window Crank
39-011
$20.45
VIEW >
39-012 : RH Superior Window Crank
RH Superior Window Crank
39-012
$20.45
VIEW >
39-193 : LH Window Crank Operator, 3/8
LH Window Crank Operator, 3/8" Hole
39-193
$20.04
VIEW >
39-194 : RH Window Crank Operator, 3/8
RH Window Crank Operator, 3/8" Hole
39-194
$20.04
VIEW >
39-277 : LH Awning Operator, Nu-Aire
LH Awning Operator, Nu-Aire
39-277
$20.04
VIEW >
39-278 : RH Awning Operator, Nu-Aire
RH Awning Operator, Nu-Aire
39-278
$20.04
VIEW >
33-081 : #10 x 1/2
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.21
VIEW >
