crank mechanism

A quick learner from USA says:

March 28, 2023

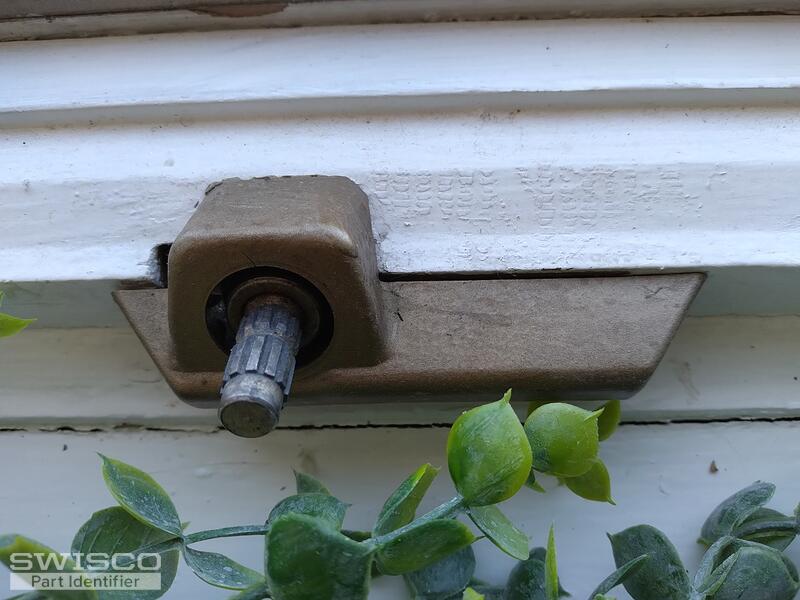

I need help identifying the crank mechanism on a window so we can replace it.

Thumbnail of the uploaded file named 20230326_113013.jpg

Casey from SWISCO responded:

March 29, 2023

Hello,

The base shown in your photo resembles a Pella-style operator. We would need you to open the window so that the arms that move the sash are fully visible to narrow down your options further. Thank you!

A handy person from USA says:

March 30, 2023

The window in question is in my daughter's house about 70 miles away. I am going to try to visit this weekend so I may not be getting back to you until some time next week. I wanted to explain the delay so you didn't think I was giving up on the project. Thanks for your quick response.

Casey from SWISCO responded:

March 30, 2023

That's no problem at all and there is no rush. We will be here whenever you are able to pick the project up again.

A handy person from USA says:

April 9, 2023

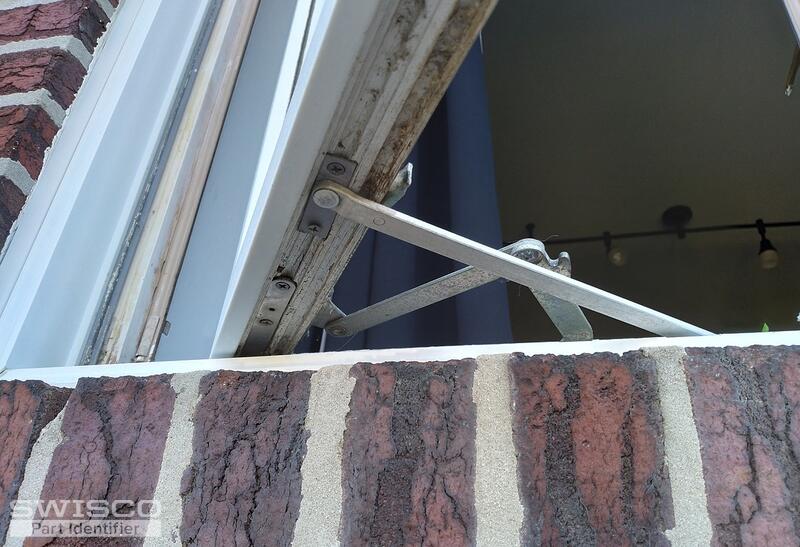

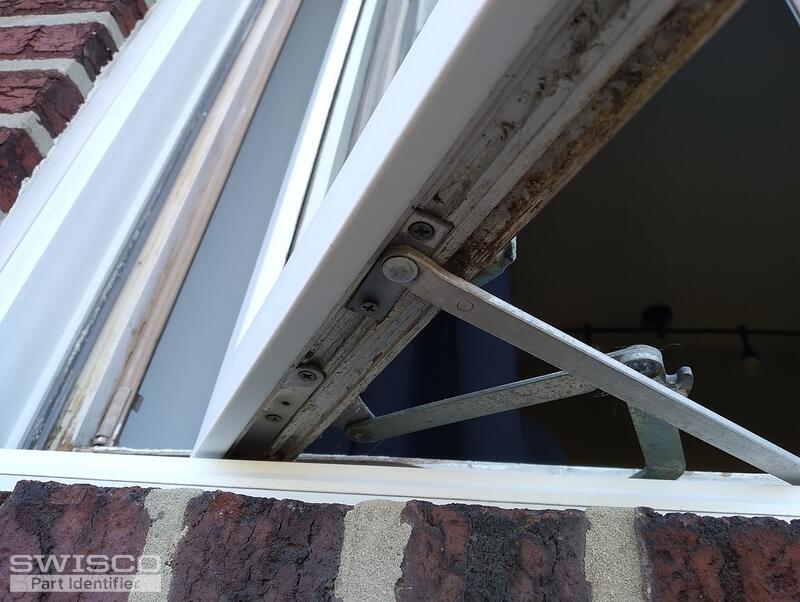

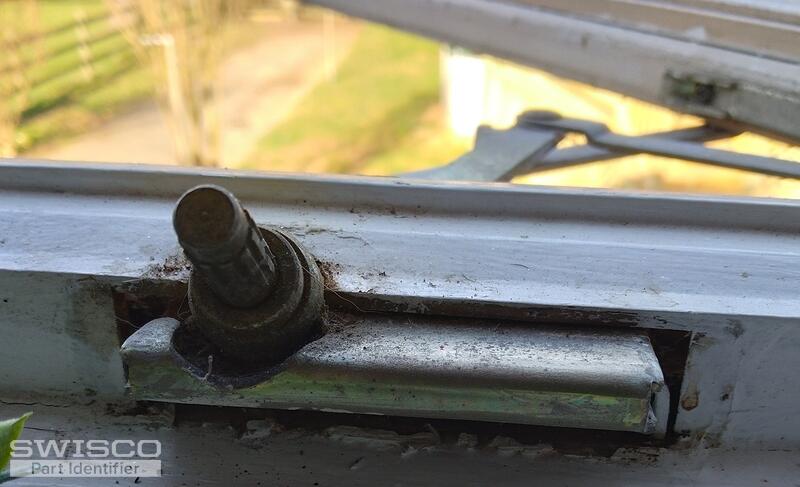

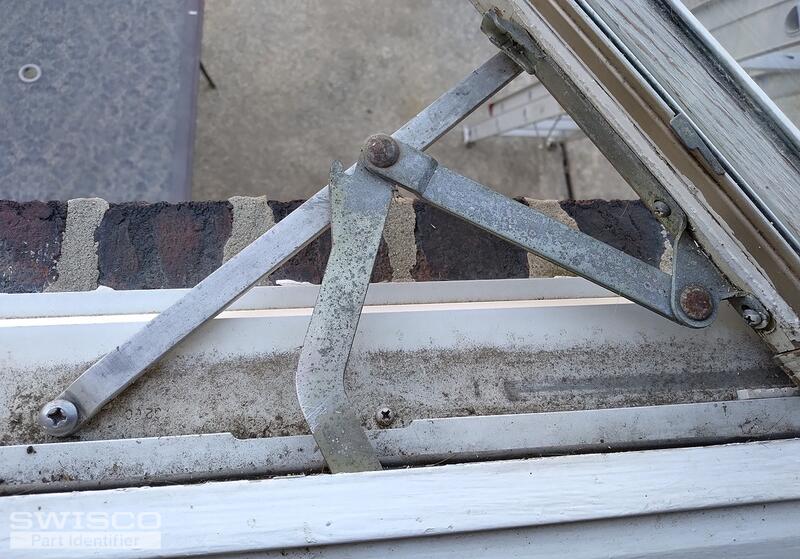

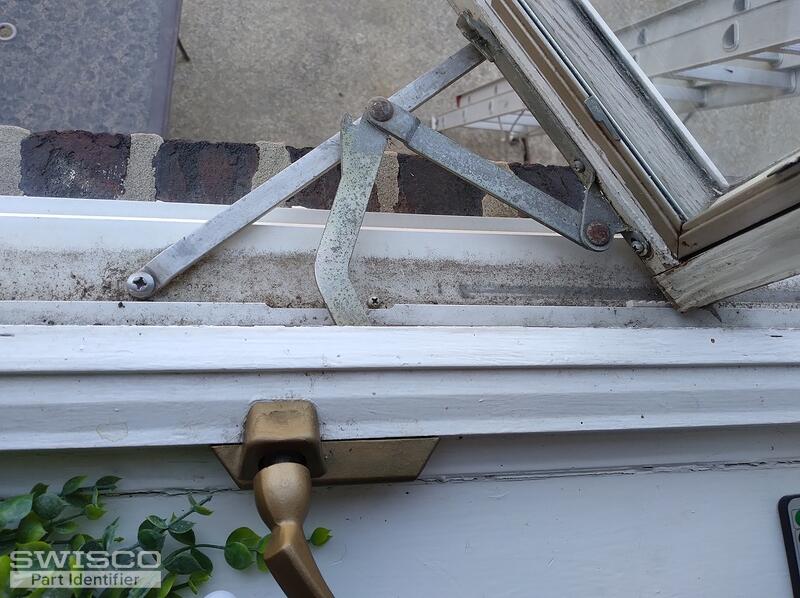

Hello again. I finally have the pictures you requested. Attached are several photos. If you need additional angles please let me know. You have been great and very patient with this issue. I appreciate greatly your assistance.

Thumbnail of the uploaded file named 20230404_085302~2.jpg

Thumbnail of the uploaded file named 20230404_085159~2.jpg

Thumbnail of the uploaded file named 20230404_085204~2.jpg

Thumbnail of the uploaded file named 20230404_085037~2.jpg

Thumbnail of the uploaded file named 20230404_085010~2.jpg

Casey from SWISCO responded:

April 10, 2023

Thanks for getting back to us. Your photos resemble the 39-175 and 39-176 Pella operators. We will include the specifications from our product page below. Please note that, unfortunately, the cover has been discontinued but we still offer the 39-109B handle. Thanks for posting!

Dimensions for 39-176

Alternate view with measurements

Sash Crank Operator, Pella

39-175

$241.70

Sash Crank Operator, Pella

39-176

$241.70

3/8" Handle for Pella

39-109B

$11.25
