crank window handles and track for sliding closet doors

Home Owner from Gardena, California

Hello, I am sending you photos of a couple of replacement parts I need and hope that you can help.  The sliding glass closet door track is shot. Doors are 8 ft. tall and the track measures 8 ft.long and is 3 and 3/4 inches wide. They are old and I don't know the brand.

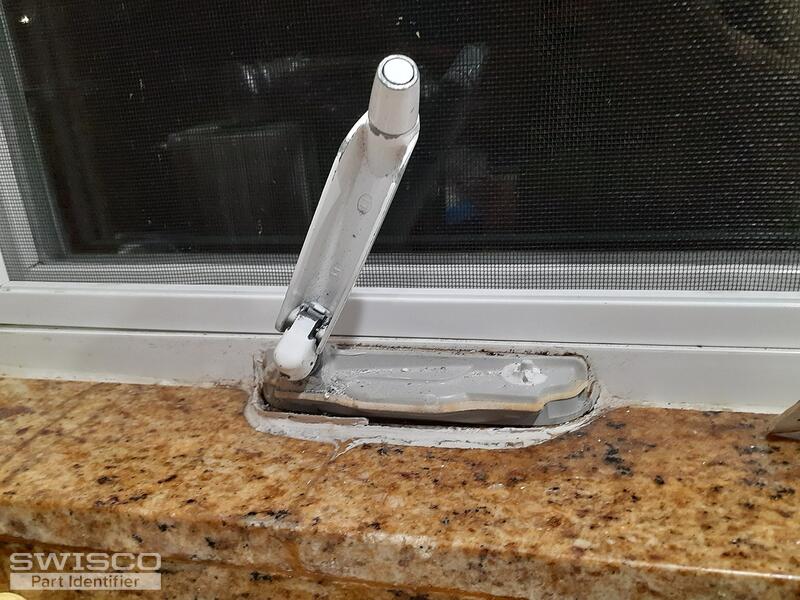

I also need to replace two window cranks. Mechanism works good just the crank handles need to be replaced. I don't know the brand.

Please feel free to contact me with any questions. Your help is appreciated.

Alicia

4 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your closet track is an older style that is no longer available but we do offer the 23-270 track for concave wheels. The track is narrower than yours but the distance between the rails that the rollers ride on would be the determining factor. Also, please note that we do not carry an 8' long version of this track but you may be able to use two of the 47" long tracks together as long as the rest of the specifications would work for you.

Profile view of bottom concave roller track
Profile view of bottom concave roller track

As for your operator hardware, we should be able to help but I would like to see your assembly with the window open so that the arms that move the sash are fully visible. This will help us confirm which handle and cover options would be compatible. Thank you!
