What are the dimensions of the 23-124

A home owner from kerrville, tx says:
What is the overall length of the 23-124 from top to the bottom? What is the length of the cyclinder containing the spring?
Profile picture of Paul
Paul from SWISCO responded:

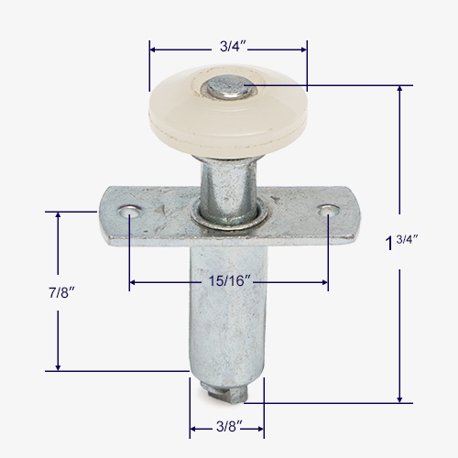

The total height of the 23-124 roller guide is 1-3/4" and the height of the housing is 7/8". See the included picture to see the two dimensions on the roller guide.

Detail of 23-124
Detail of 23-124
