9” sash replacement

Landlord from Fort jones, calif

Sep 2, 2018 3:09 pm

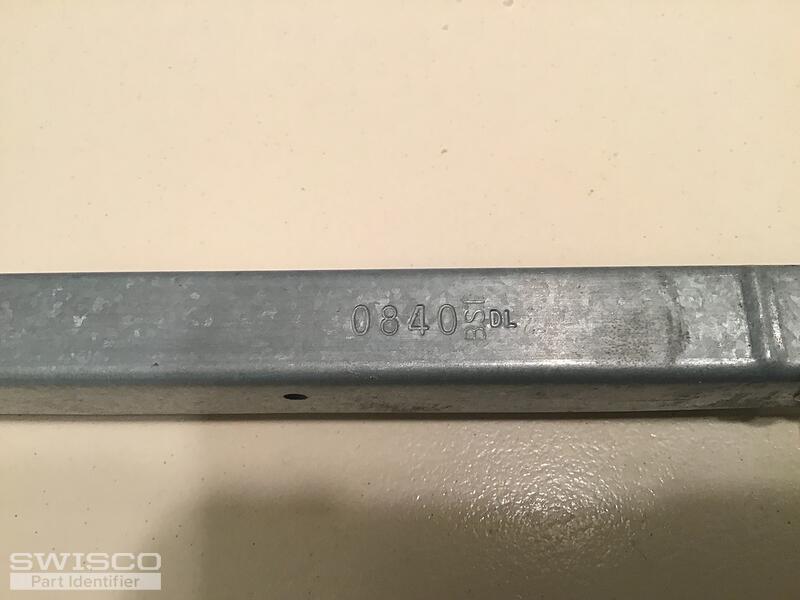

I need to replace about 8 of these on a rental house. They are 9" in length, 1/2" wide and have the following # stamped on them, 0840 dL. Also a BSI is stamped on the frame. ( see above photos). Thank you.

4 user uploaded images

8 Replies

Tom from SWISCO

Sep 11, 2018 9:15 am

We can replace this balance, but it will have to be a special order. Before we begin, can you confirm the depth of the bottom shoe? I cannot make it out in your photos. Once we know that, we will email you an order link and price quote for 8 of them.

Landlord from Fort jones, calif

Sep 11, 2018 10:42 am

Is the bottom shoe the smaller of the two plastic pieces? If so can you explain to me which measurement would be the depth, so I send you the correct one. I can add photos with measurements if that will help.

Thanks Bert B

Tom from SWISCO

Sep 11, 2018 11:39 am

The bottom shoe is the plastic piece that is mounted on the bottom while these balances are installed. If you look at your last two photos, it's the one on the right.

The depth would be the "heel to toe" measurement. If you look at our 15-004 or 15-005, then you'll note that the only difference between them is the 1-3/32" measurement on the 15-004 compared to the 1" measurement on the 15-005. That is the depth.

Landlord from Fort jones, calif

Sep 12, 2018 10:34 pm

Tom,the depth is 1-3/32? on the bottom shoe.

Thanks, Bert B

Tom from SWISCO

Sep 13, 2018 10:31 am

Perfect, thanks! That'd be our Series 385. Please give us a little time to look into the availability of this extra small size and I'll get back to you ASAP.

Tom from SWISCO

Sep 13, 2018 11:39 am

It's my pleasure. We just got all the information we need, so I'm going to send you that order link and price quote right now. Let me know if you have any questions!

Landlord from Fort jones, calif

Sep 13, 2018 11:48 am

Thanks Tom!
