Replacement Channel Balance and Top Sash Guide

Quick Learner from Denton tx

Jan 9, 2019 9:57 am

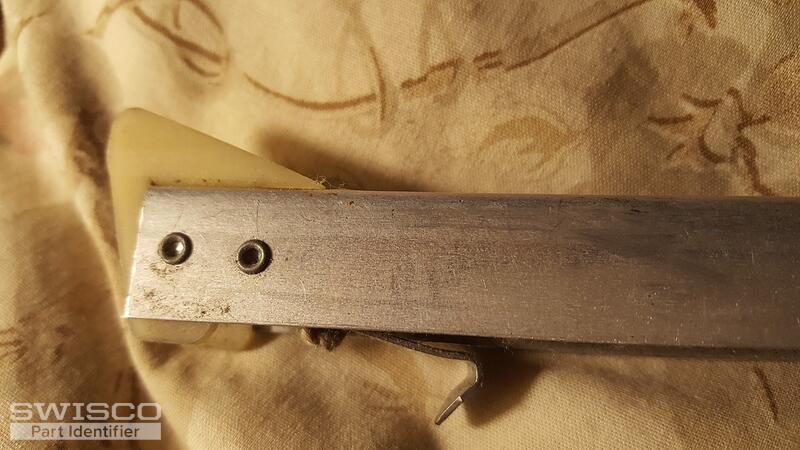

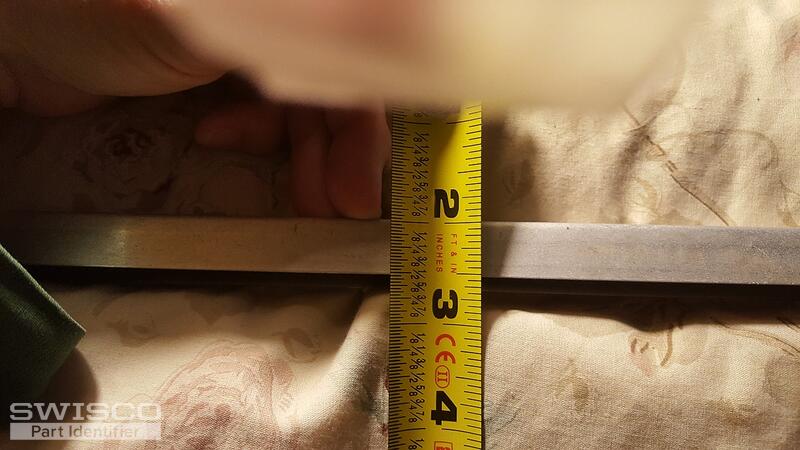

Hi. This is stamped 27 C (b.s.i.?), i think its on one of the pics. I cant get to any still installed for a pic at the moment..most are broken. Is this enough for identification purposes? Thanks!

5 user uploaded images

5 Replies

Quick Learner from Denton tx

Jan 9, 2019 12:41 pm

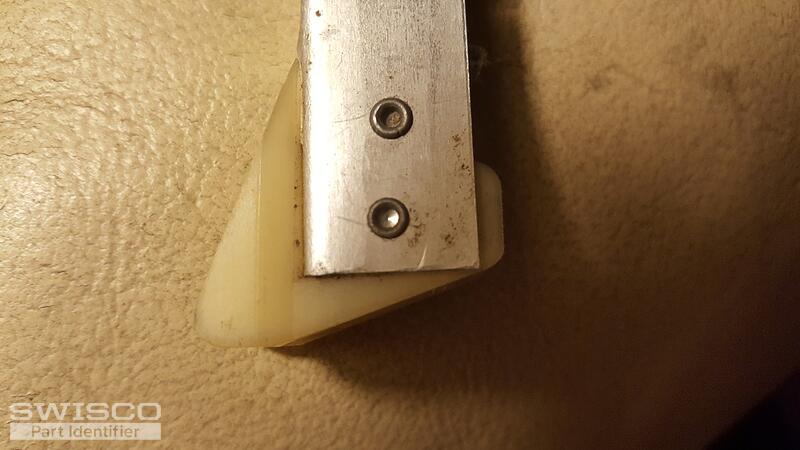

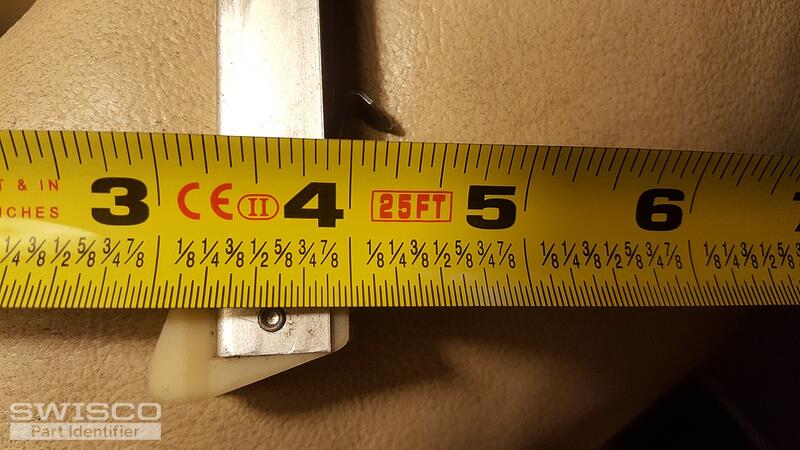

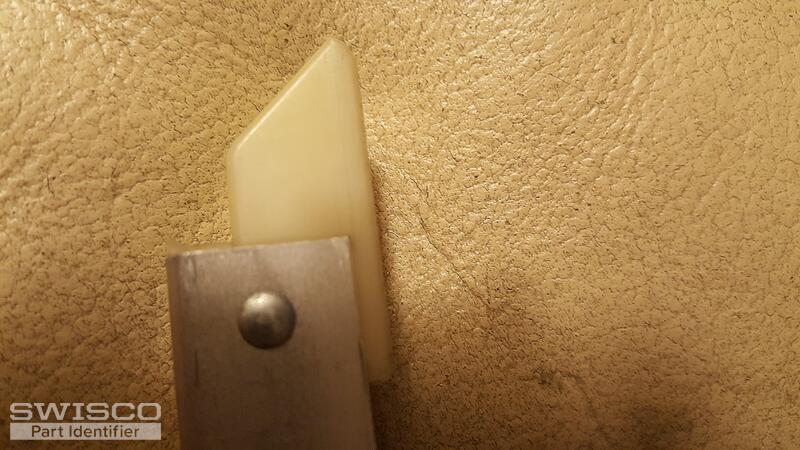

Hi again. I looked at this closer and i think i might have the o5-001 boot because its 1 1/8 wide... but the shape is slightly different where the "wing" part comes down. Will it still work?
From some notes ive made in the past, i think i have the 390 model at 28 inches. Will this work? Thanks

3 user uploaded images

Bob from SWISCO

Jan 11, 2019 10:19 am

Thanks for contacting SWISCO. Yes, if your bottom nylon shoe has a depth of 1-1/8", this corresponds with the Series 390. Just double check to be sure. A metal channel length of 28" would confirm that you have the S390-28, and the stamp 27 C conforms to our stamp option of 2730, which is for window sashes that have a weight of 13 through 19 lbs. Take a look and see what you think.

Quick Learner from Denton tx

Jan 13, 2019 7:17 pm

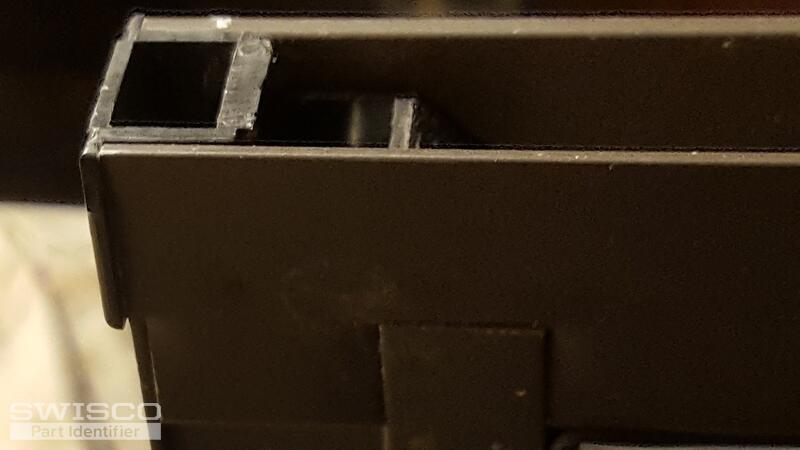

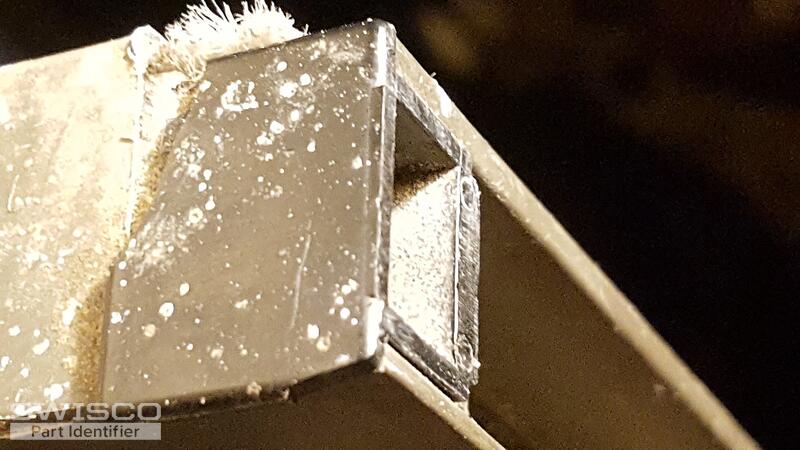

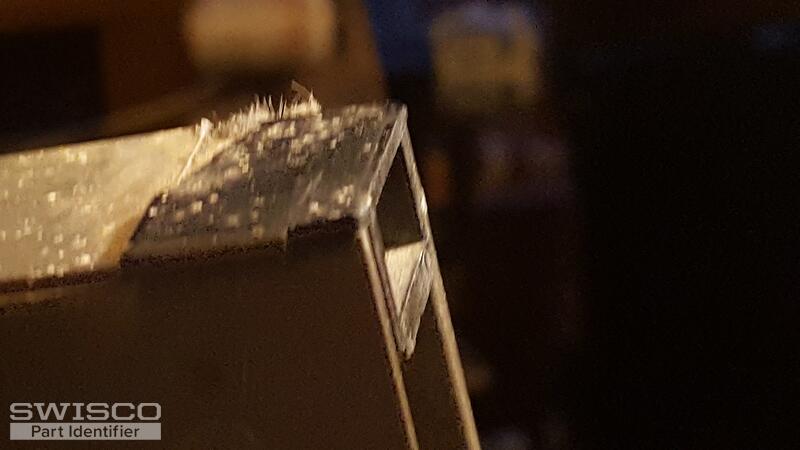

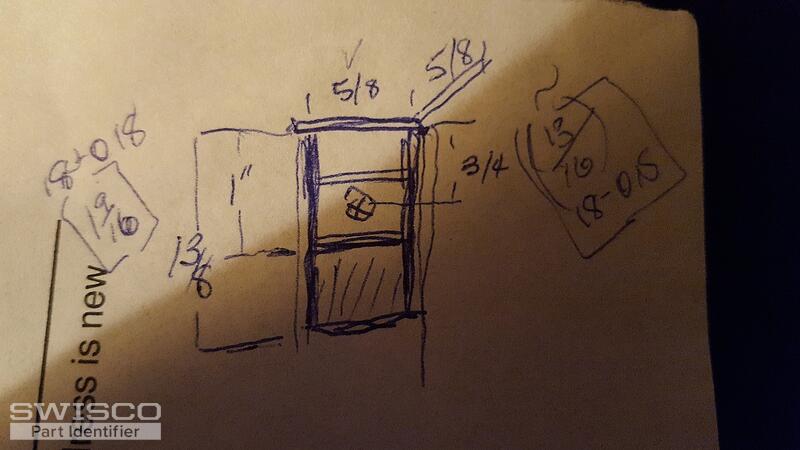

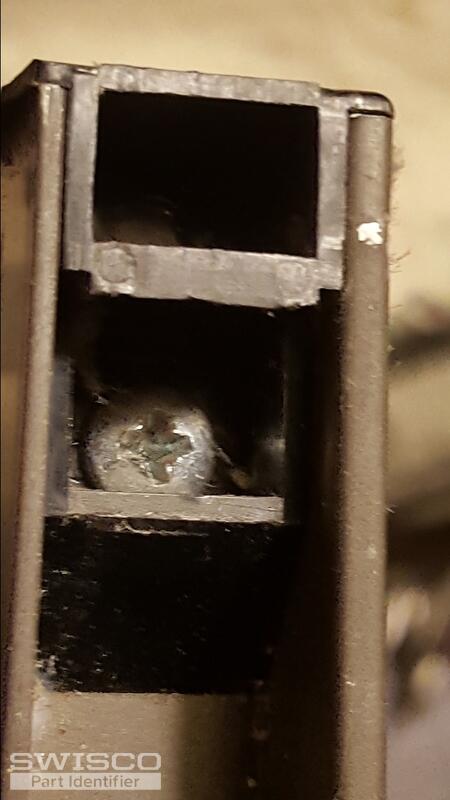

Ive placed an order for several s390 balances, now i realize i have several broken sash guides. Im not finding an exact fit but might guess its 18-018? Heres my very sketchy sketch.. im not saying my measurements are right on but a couple of them were awfully close. Will 018 work? Is there another option? Thanks!

5 user uploaded images

Paul from SWISCO

Jan 14, 2019 12:04 pm

Greetings. You know, I feel the 18-009 top sash guide would be a better fit. The 18-018 extends into the sash, whereas the 18-009 is flat in the back. Take a look and see what you think.
